DTC P0108: EGR Boost Sensor Circuit High Input
>>
Diagnostic Procedure
Diagnostic Procedure

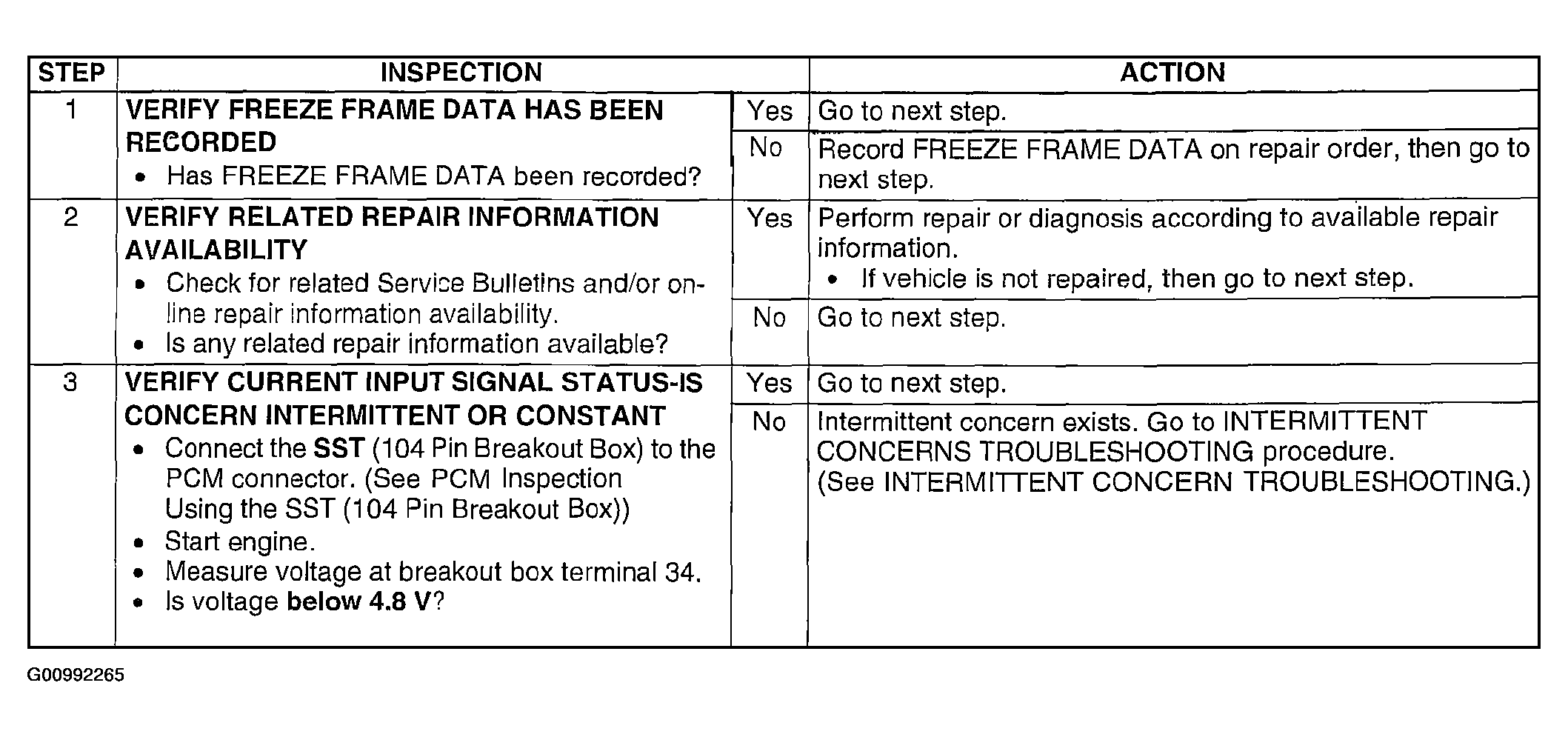

Fig 1: DTC P0108 Diagnostic Procedure Chart (Step 1-3)
Courtesy of MAZDA MOTORS CORP.

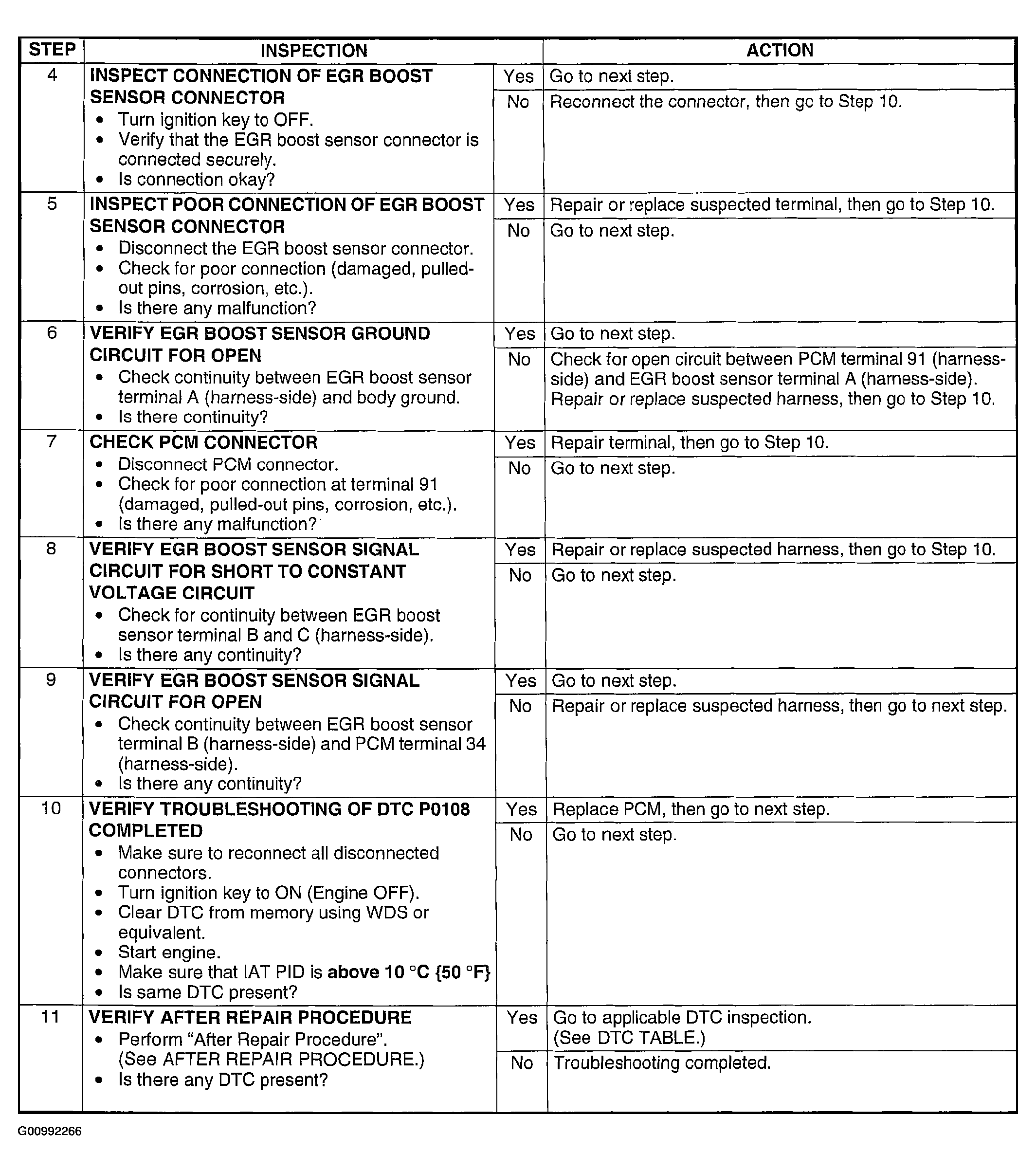

Fig 2: DTC P0108 Diagnostic Procedure Chart (Step 4-11)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
