DTC P0102: MAF Circuit Low Input
>>
Diagnostic Procedure
Diagnostic Procedure

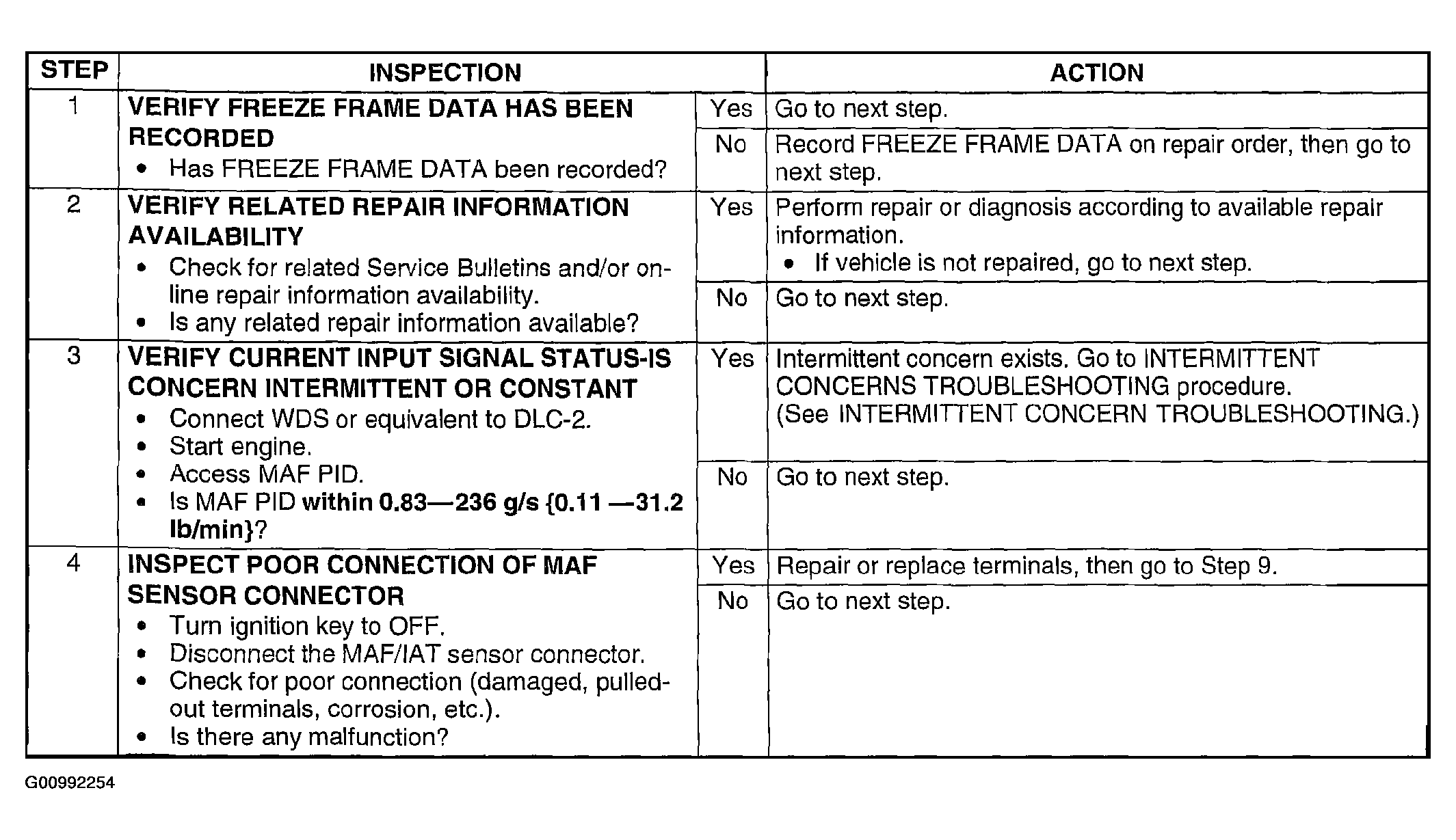

Fig 1: DTC P0102 Diagnostic Procedure Chart (Step 1-4)
Courtesy of MAZDA MOTORS CORP.

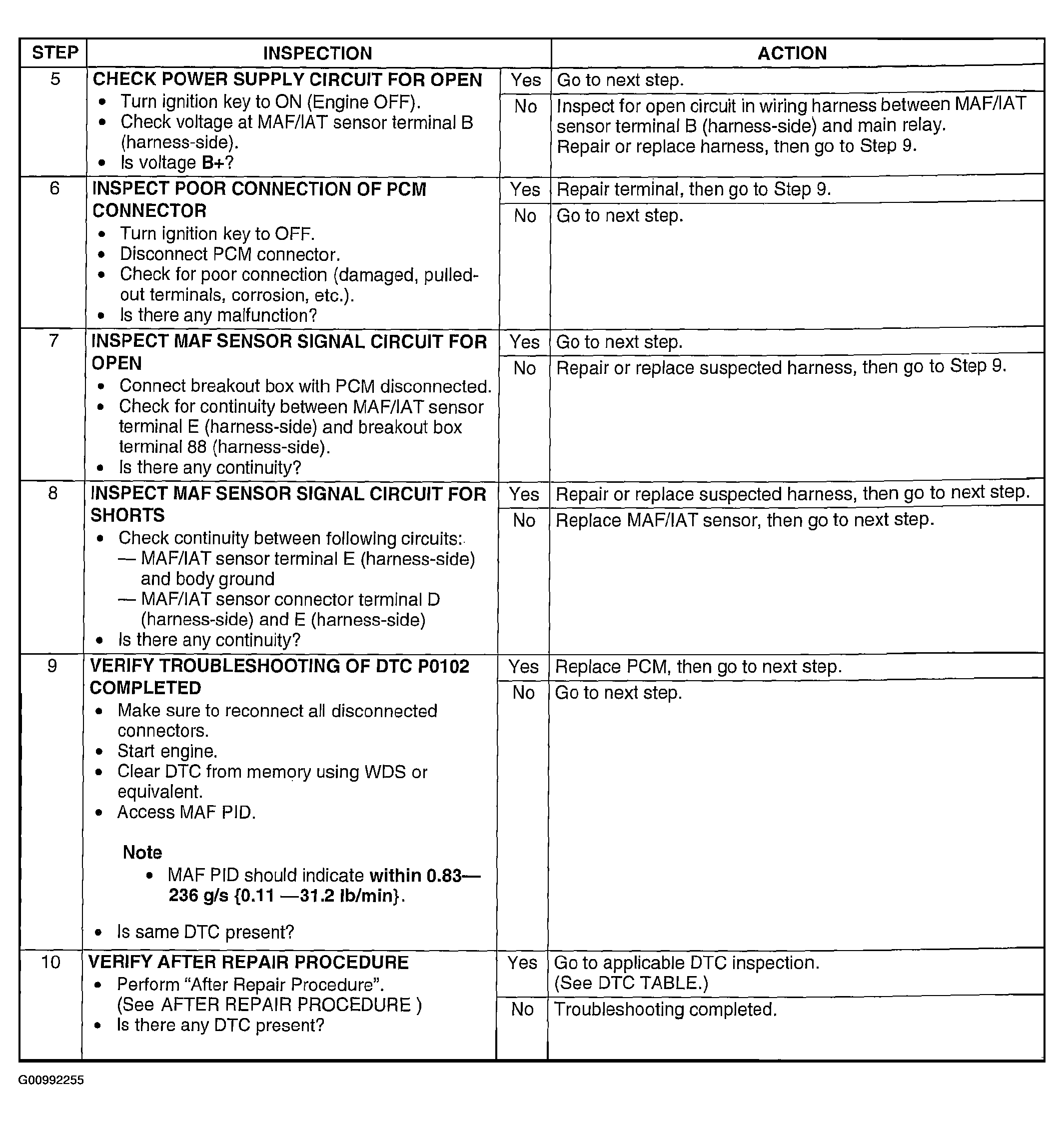

Fig 2: DTC P0102 Diagnostic Procedure Chart (Step 5-10)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
