DTC P0057: Ho2S Heater (Rear, LH) Circuit Low: Notes

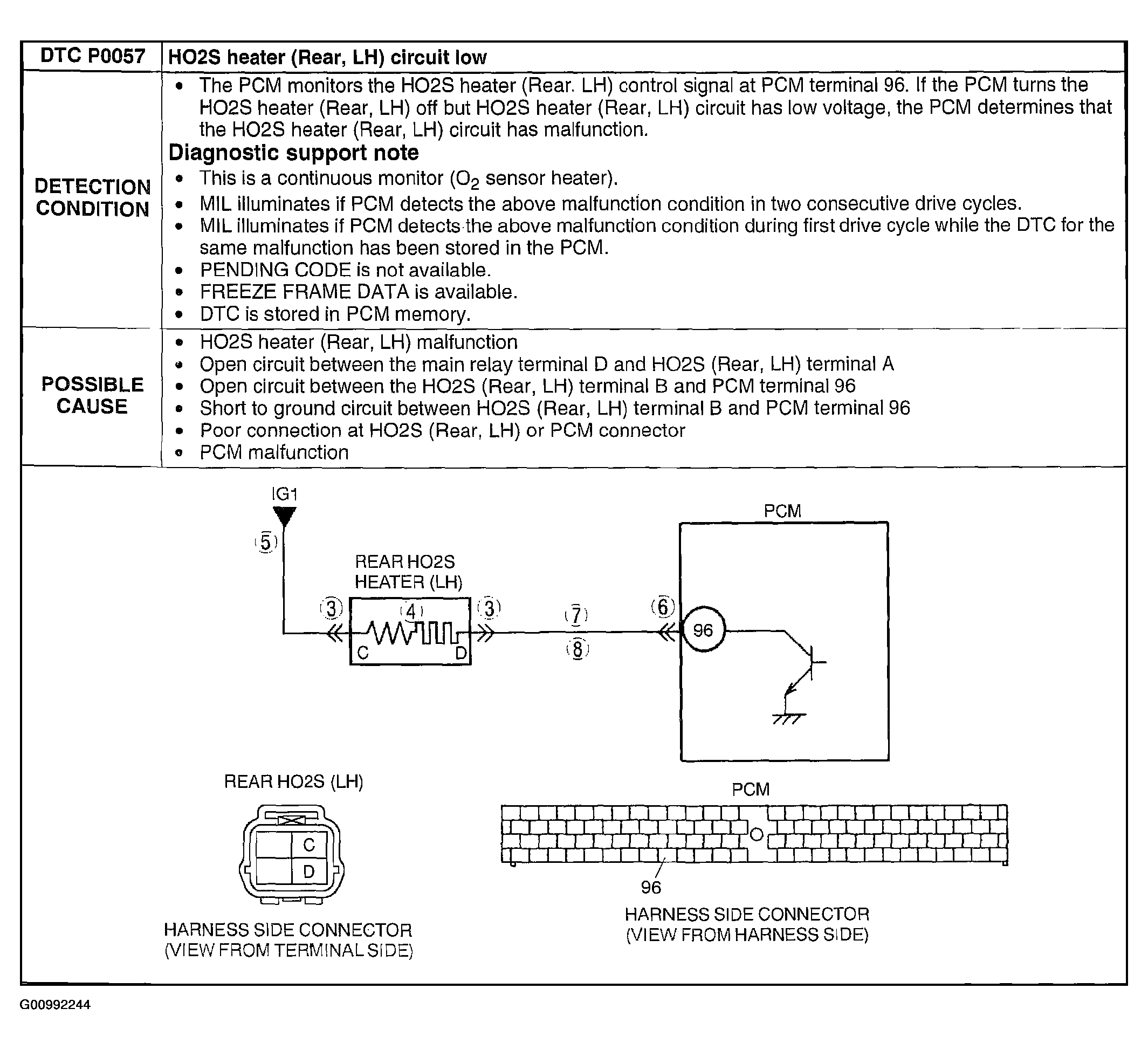

Fig 1: DTC P0057 Detection Condition & Possible Causes Chart

G00992244

Courtesy of MAZDA MOTORS CORP.
