DTC P0052: Ho2S Heater (Front, LH) Circuit High: Notes

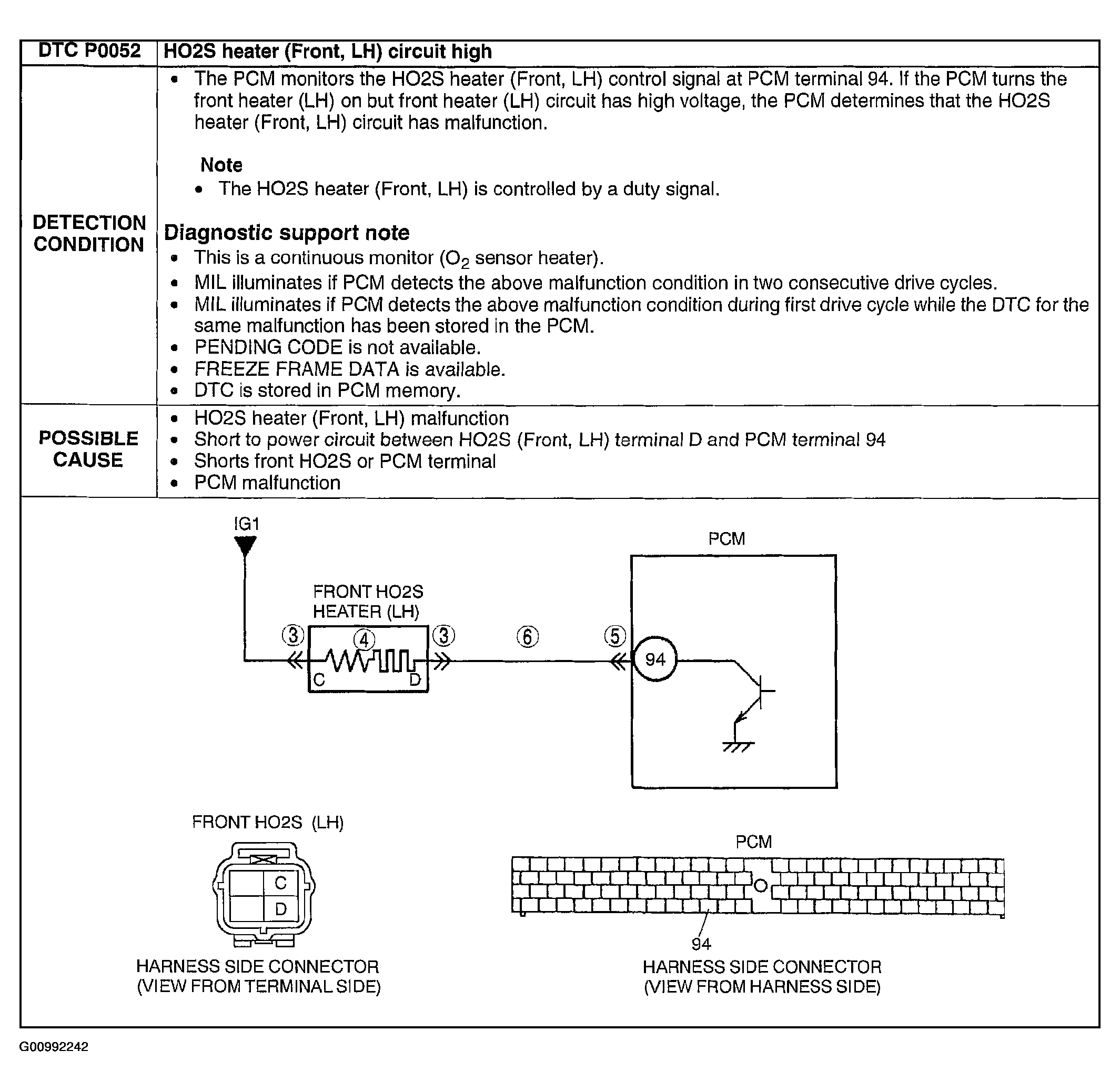

Fig 1: DTC P0052 Detection Condition & Possible Causes Chart

G00992242

Courtesy of MAZDA MOTORS CORP.
