DTC P0051: Ho2S Heater (Front, LH) Circuit Low: Notes

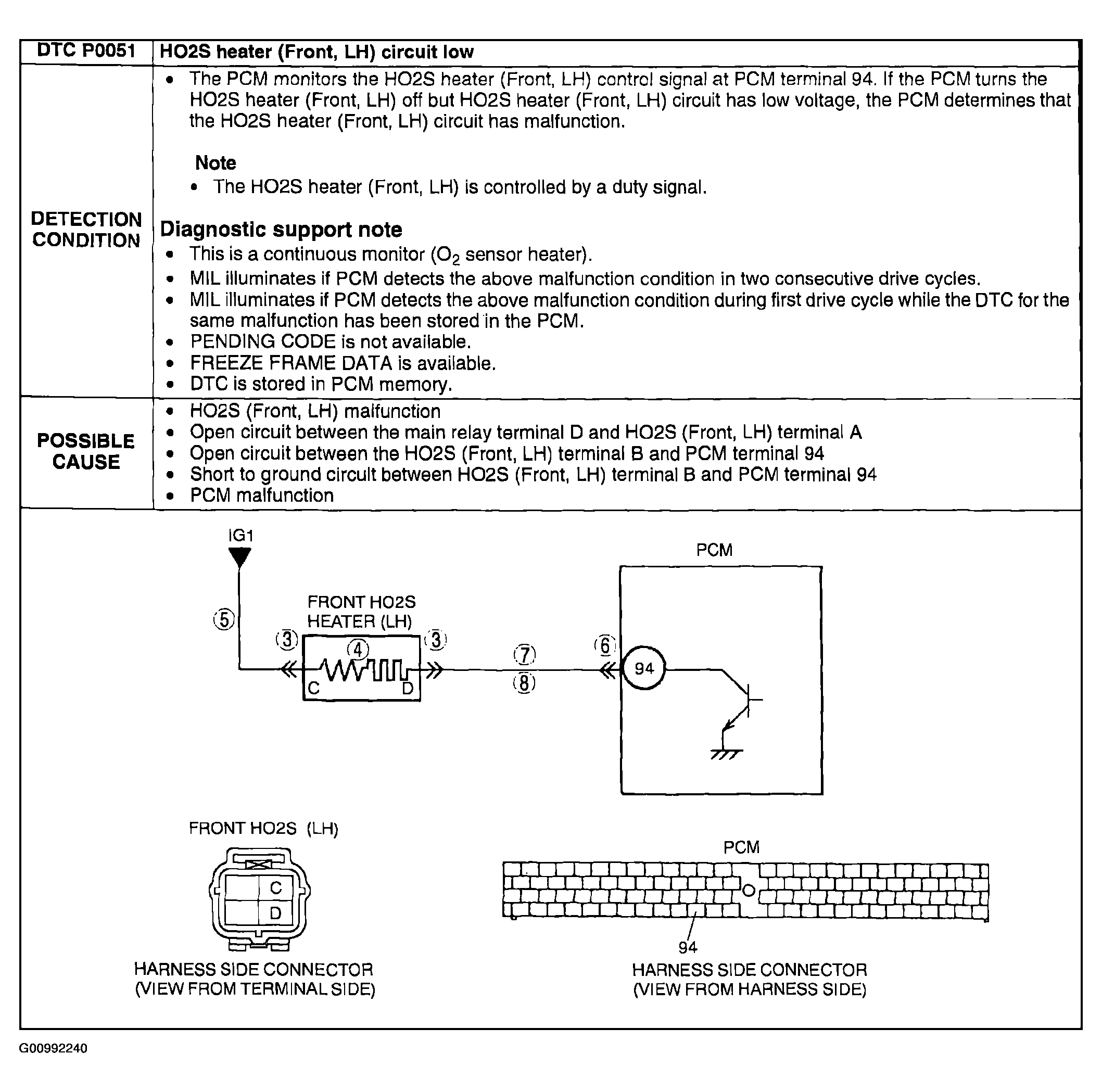

Fig 1: DTC P0051 Detection Condition & Possible Causes Chart

G00992240

Courtesy of MAZDA MOTORS CORP.
