Home >> Mazda >> 2004 >> MPV ES >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System AJ] >> DTC P0037: Ho2S Heater (Rear, RH) Circuit Low >> Notes

DTC P0037: Ho2S Heater (Rear, RH) Circuit Low: Notes

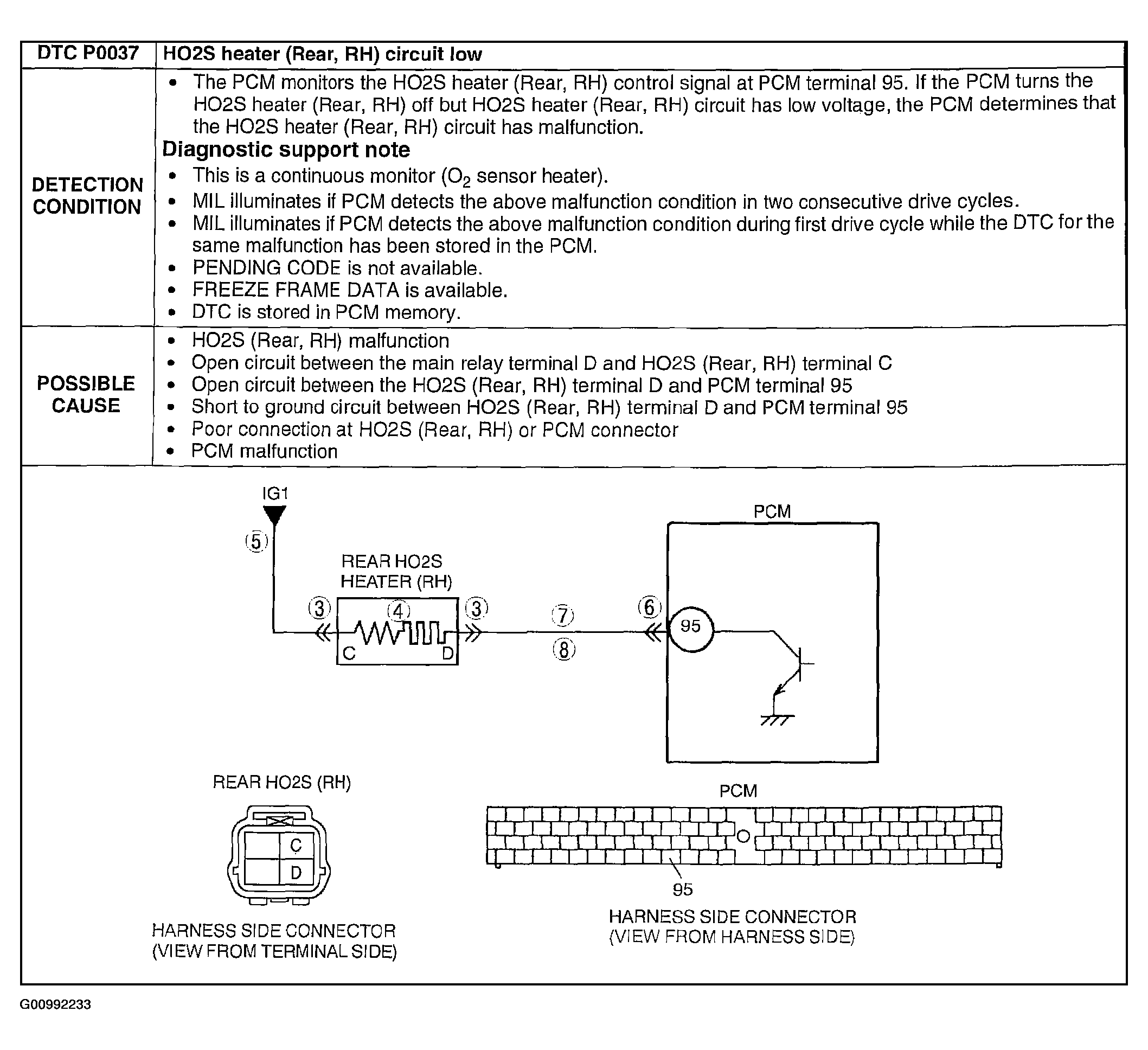

Fig 1: DTC P0037 Detection Condition & Possible Causes Chart

G00992233

Courtesy of MAZDA MOTORS CORP.
