EGR Valve Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the air cleaner.
  3. Disconnect the vacuum hose.
  4. Disconnect the EGR pipe
  5. Remove in the order indicted in the illustration.
    Fig 1: EGR Valve Removing/Installing Sequence
    G00993715Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.

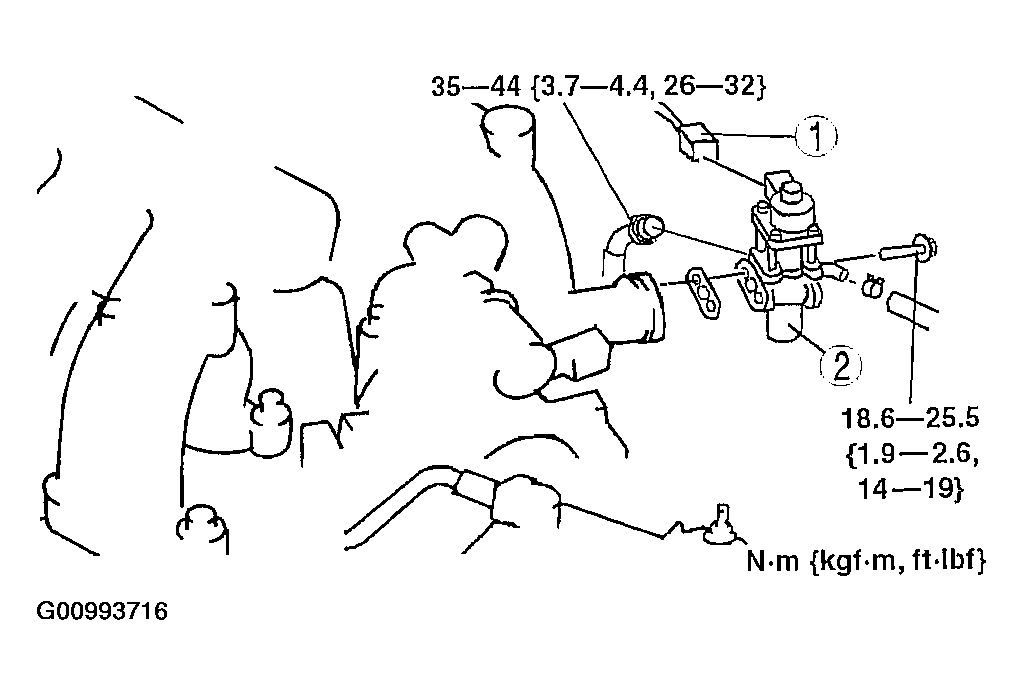

    Fig 2: Removing/Installing EGR Valve
    G00993716Courtesy of MAZDA MOTORS CORP.
