Exhaust Manifold (RH) Installation Note

  1. Tighten the exhaust manifold installation nuts in the order shown.

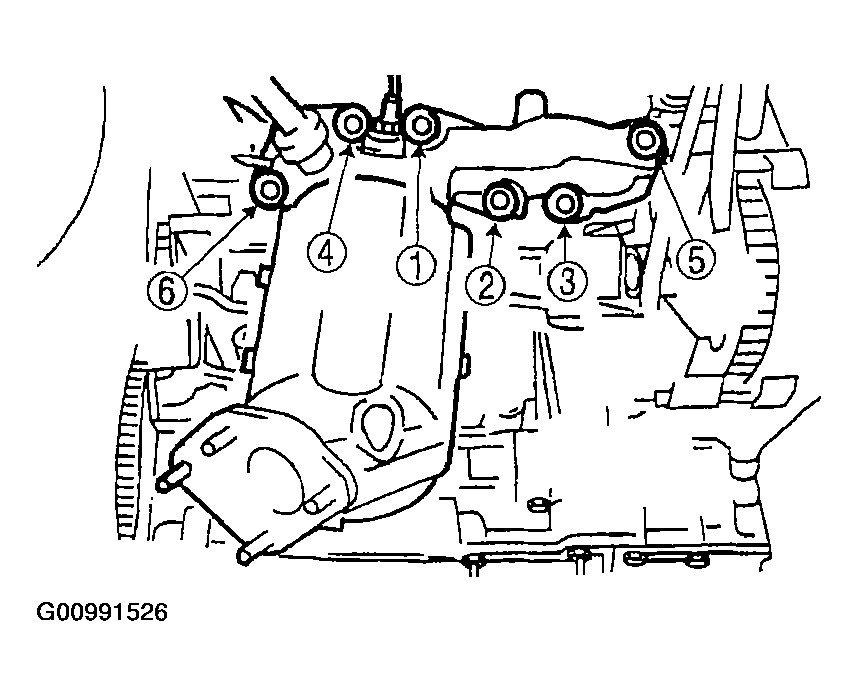

    Fig 1: Tightening Sequence Order Of Exhaust Manifold Nuts
    G00991526Courtesy of MAZDA MOTORS CORP.
