Symptom Troubleshooting [Brake System)
>>
Symptom Troubleshooting
>>
Without TCS
Without TCS

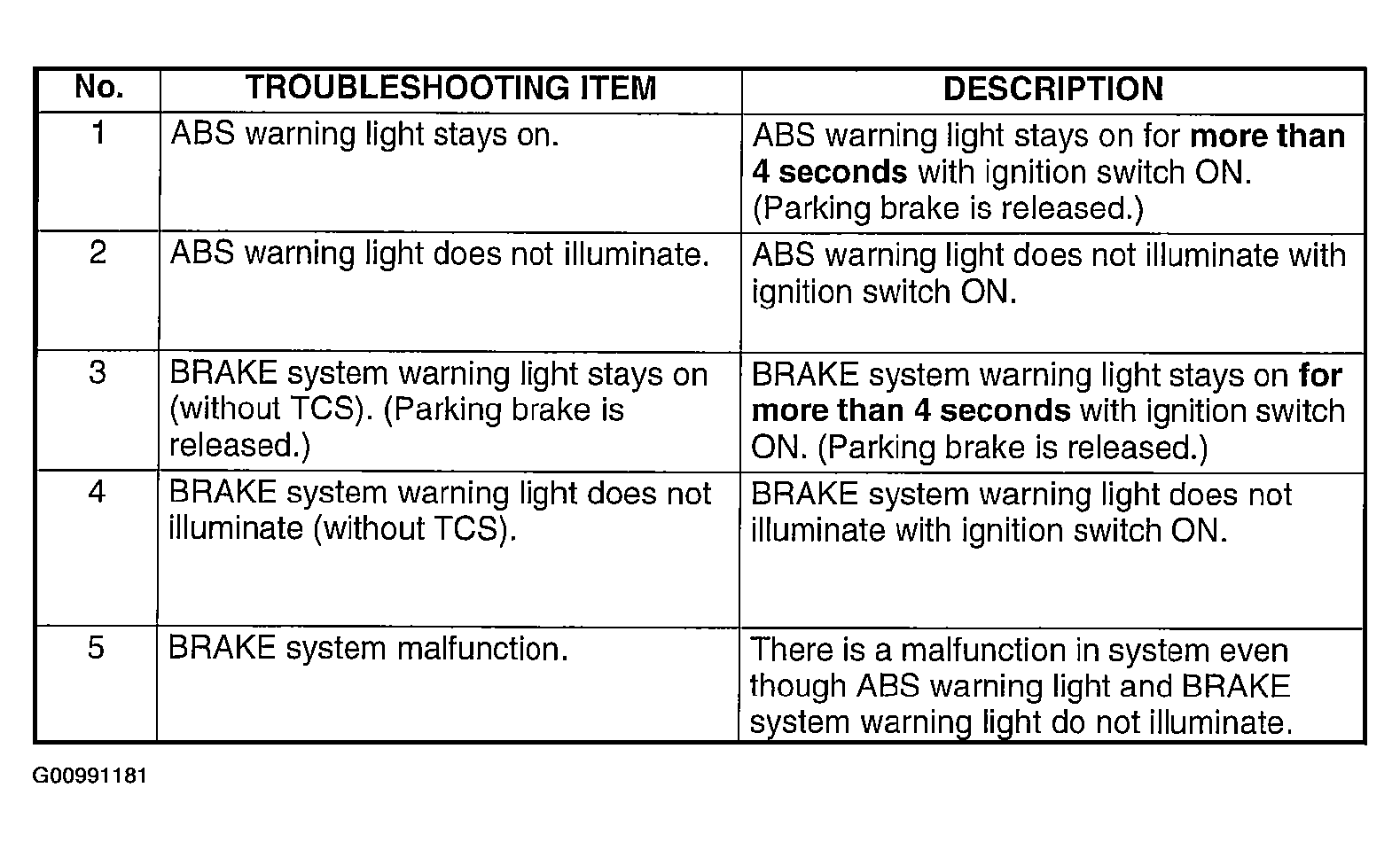

Fig 1: Symptom Troubleshooting - Without TCS
Courtesy of MAZDA MOTORS CORP.

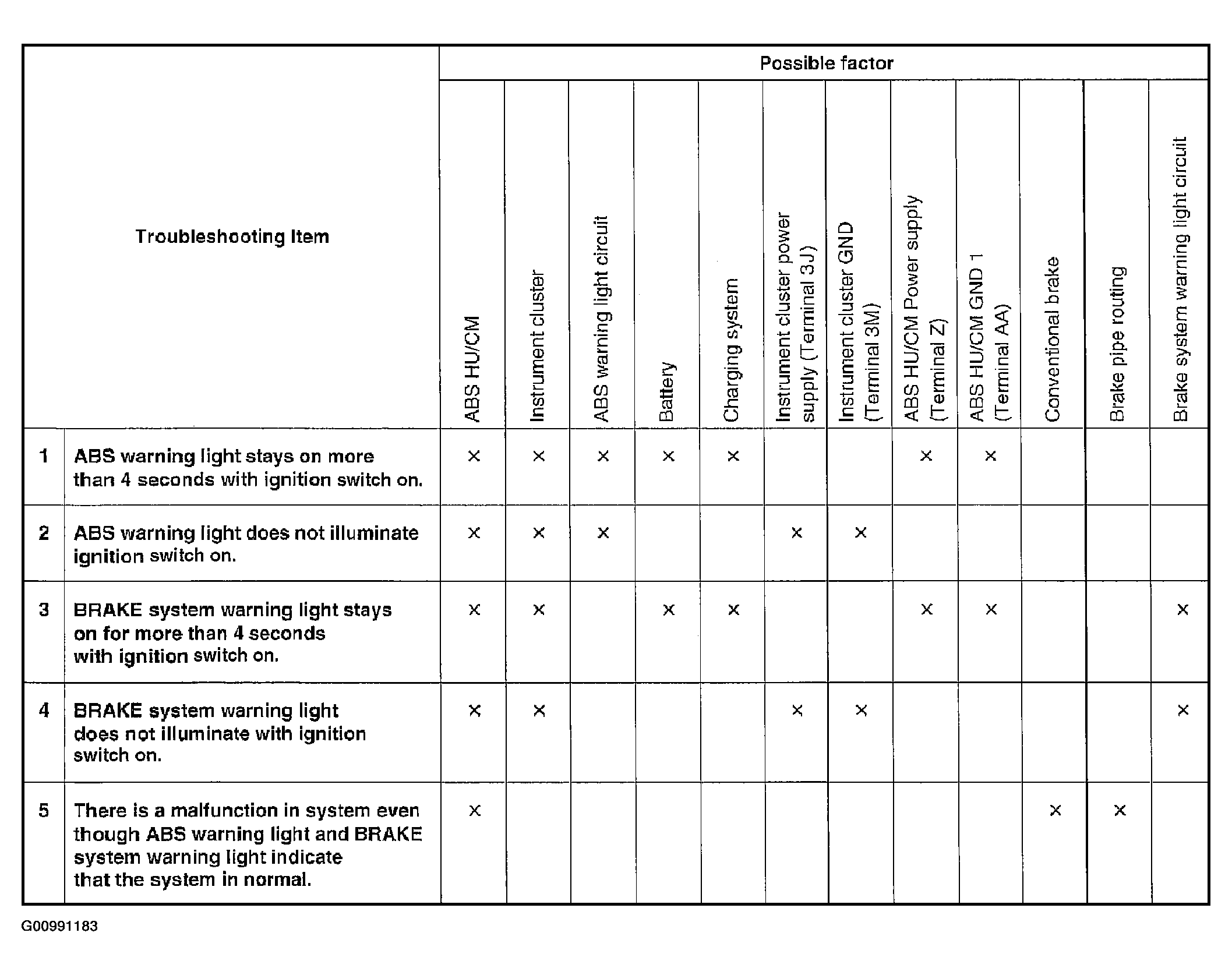

Fig 2: Troubleshooting & Possible Factors - Without TCS
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
