Abs And TCS System Diagram

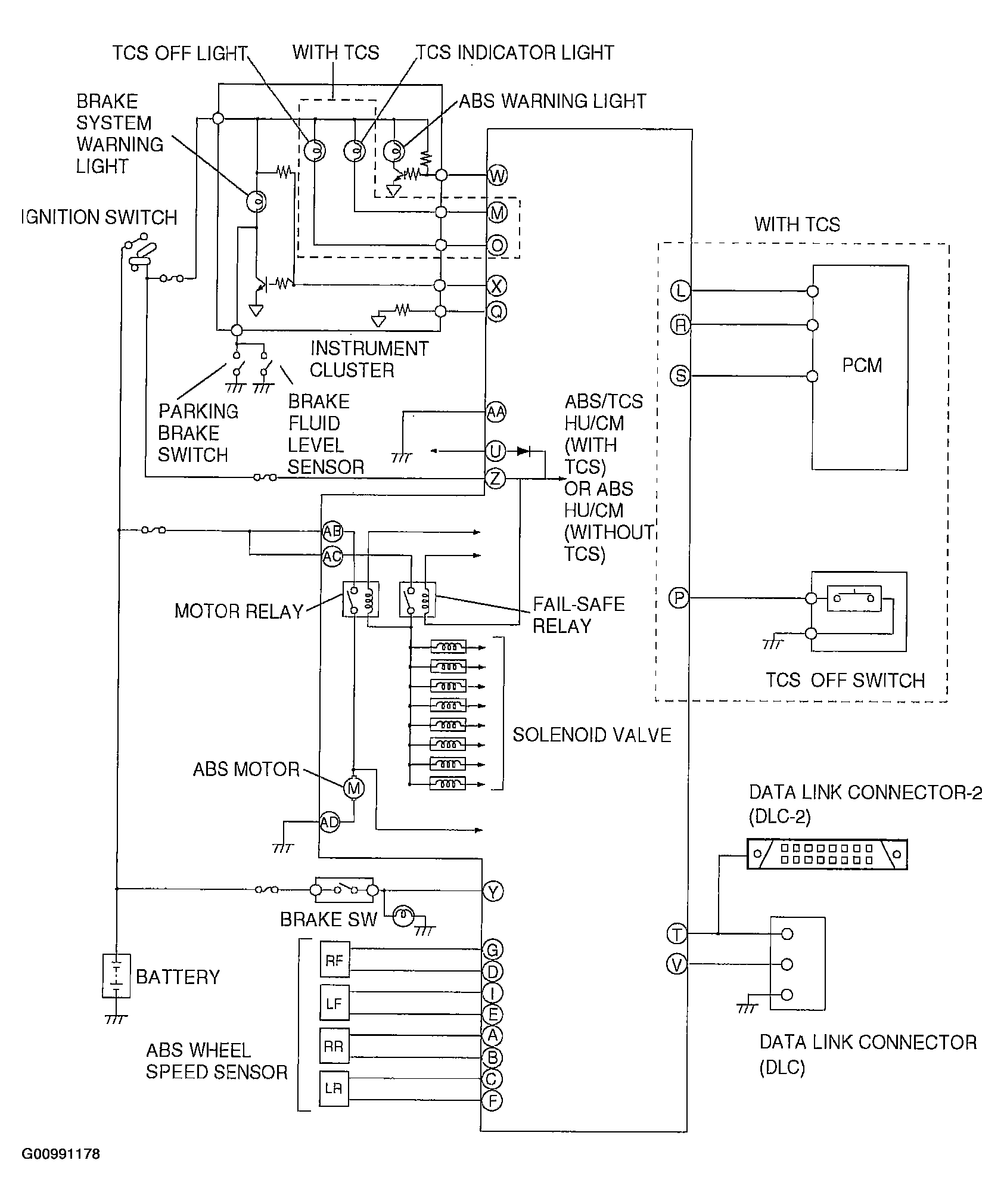

Fig 1: ABS & TCS System Diagram

G00991178

Courtesy of MAZDA MOTORS CORP.
