Torque down request

ABS HU/CM terminal: R (+) - AA(-)
Oscilloscope setting: 1 V/DIV (Y), 5 ms/DIV (X)
Vehicle condition: Idle after warm-up (Engine speed at approximately 650 rpm)

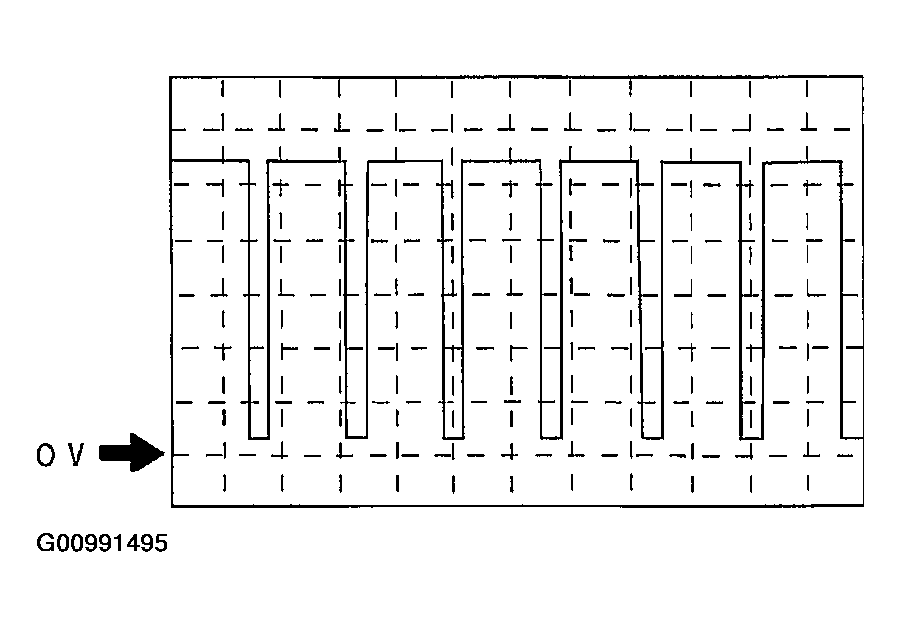

Fig 1: Inspecting Torque Down Request Using Oscilloscope
Courtesy of MAZDA MOTORS CORP.
