Sunroof Unit Disassembly/Assembly: Notes

  1. Disconnect the negative battery cable.
  2. Remove the deflector.
  3. Remove the glass panel.
  4. Disassemble in the order indicated in the figure.

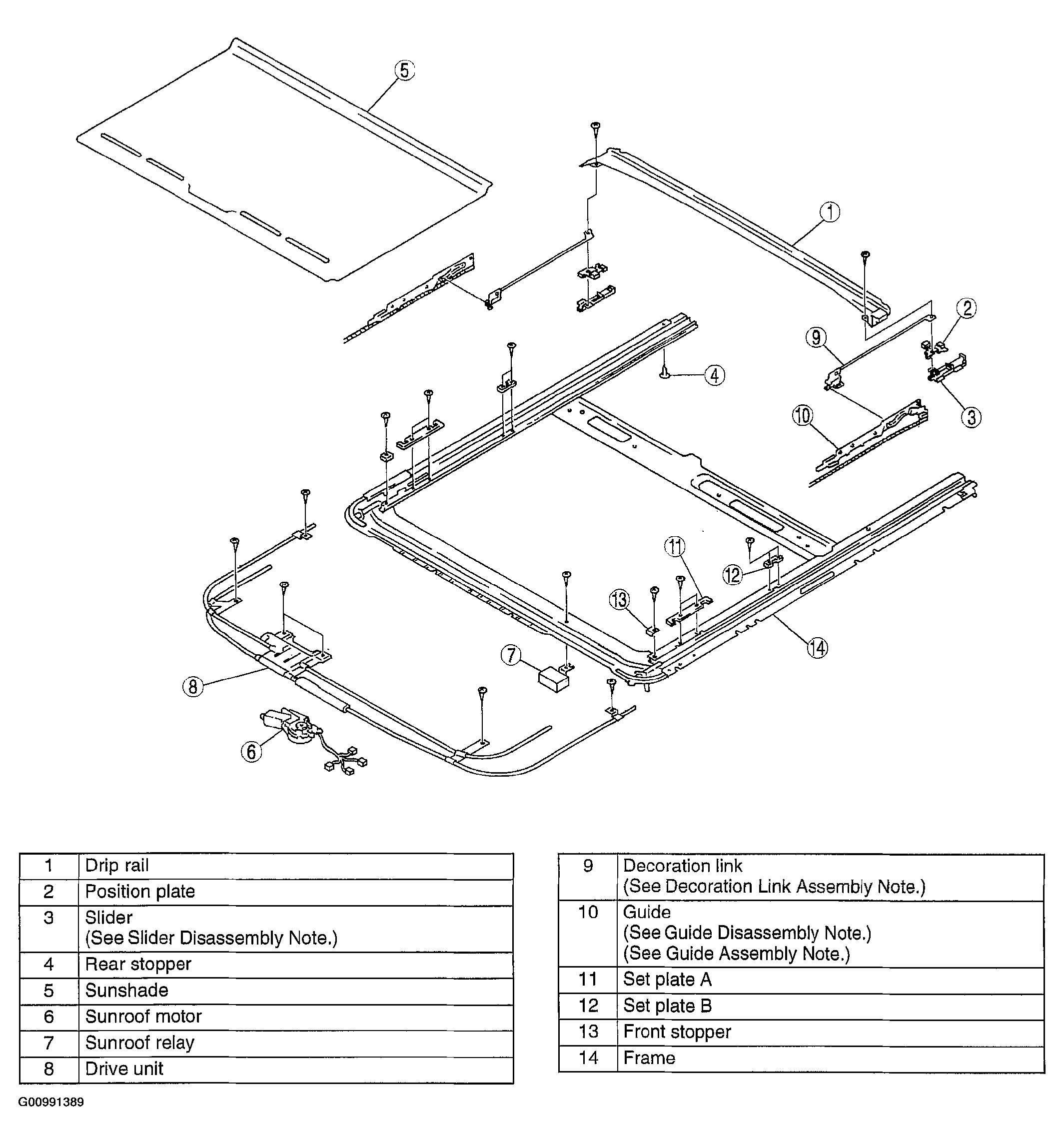

    Fig 1: Disassembling/Assembling Sunroof Unit
    G00991389Courtesy of MAZDA MOTORS CORP.
  5. Assemble in the reverse order of disassembly.
