Cruise Actuator Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the engine cover.
  3. Remove in the order indicated in the illustration.

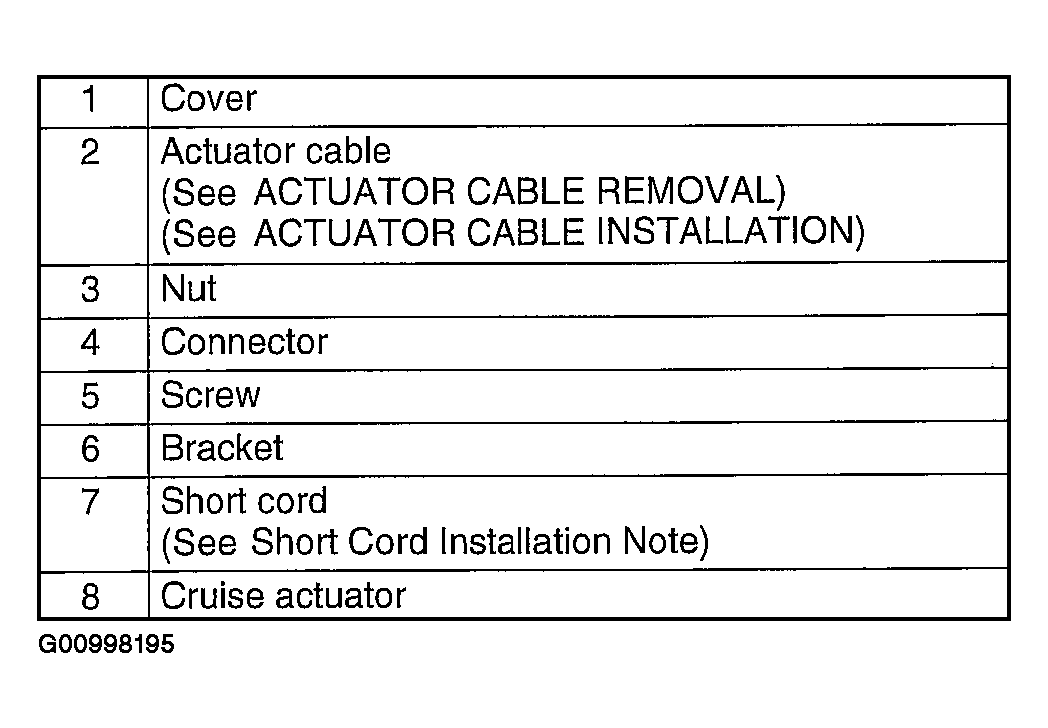

    Fig 1: Cruise Actuator Removing/Installing Sequence
    G00998195Courtesy of MAZDA MOTORS CORP.

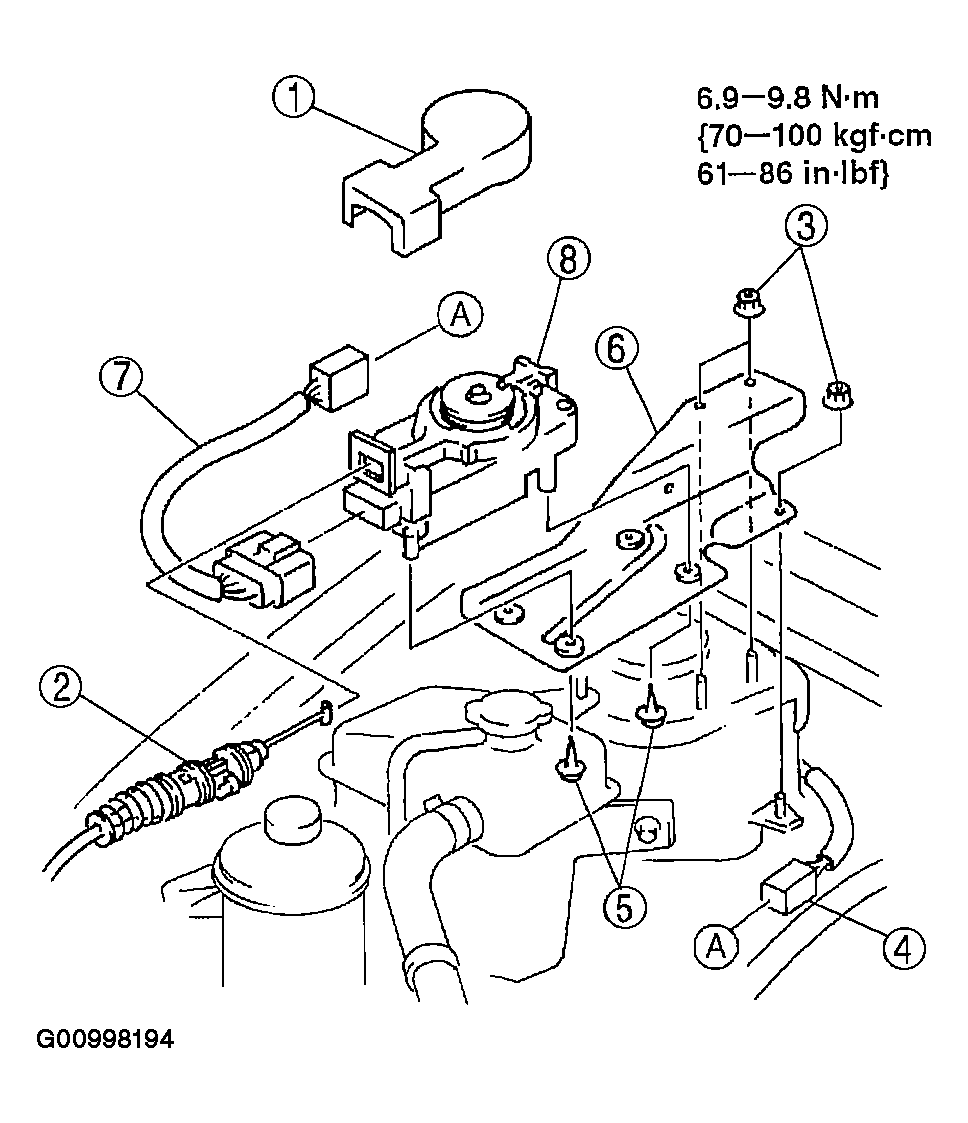

    Fig 2: Removing/Installing Cruise Actuator
    G00998194Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
