Actuator Cable Removal

  1. Remove the cover from the cruise actuator.
  2. Remove the plug hole plate. (See TIMING CHAIN REMOVAL/INSTALLATION .)
  3. Move the throttle in the direction of the arrow and hold.
  4. Remove the end fitting of the actuator cable from the throttle.
    Fig 1: Removing Actuator Cable From Throttle
    G00998200Courtesy of MAZDA MOTORS CORP.
  5. Squeeze the hooks of the grommet, and remove the actuator cable.

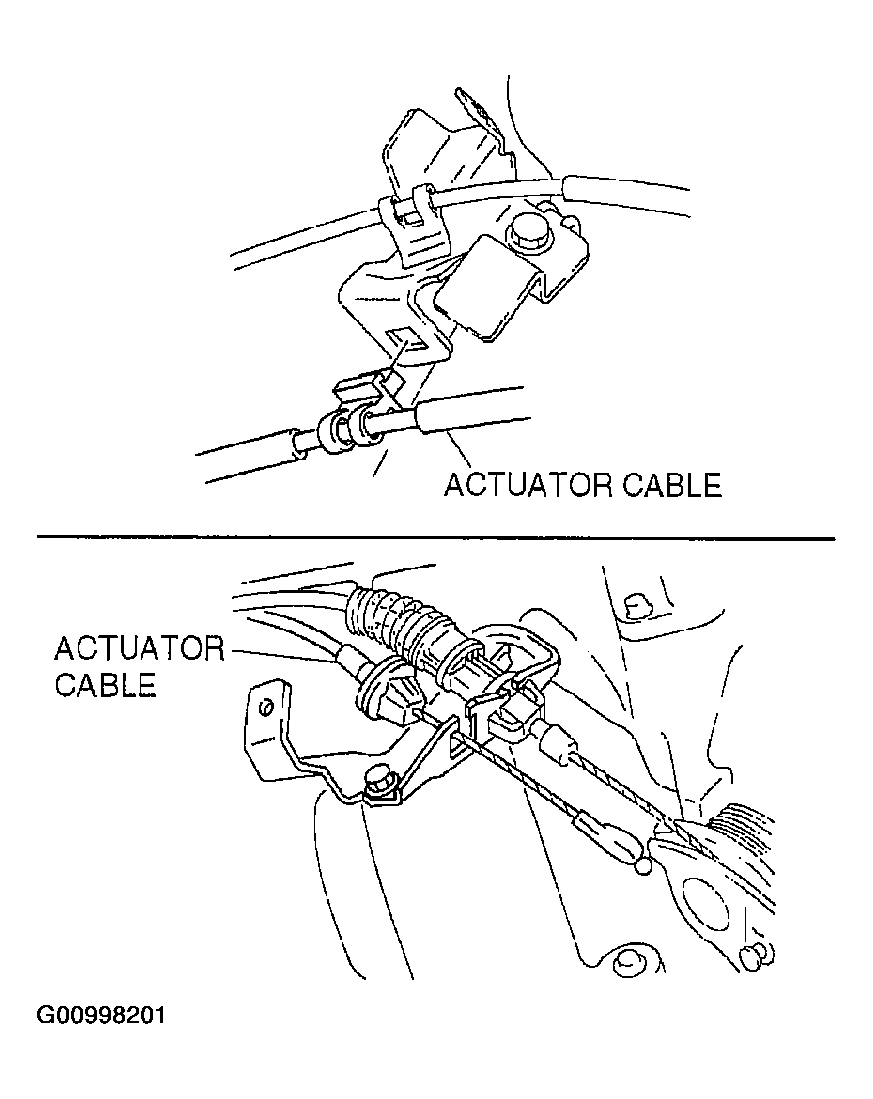

    Fig 2: Removing Actuator Cable From Brackets
    G00998201Courtesy of MAZDA MOTORS CORP.
  6. Remove the end fitting of the actuator cable from the cruise actuator.
    Fig 3: Removing Actuator Cable From Cruise Actuator
    G00998202Courtesy of MAZDA MOTORS CORP.
  7. Squeeze the hooks of the grommet, and remove it from the cruise actuator.
  8. Remove the actuator cable.

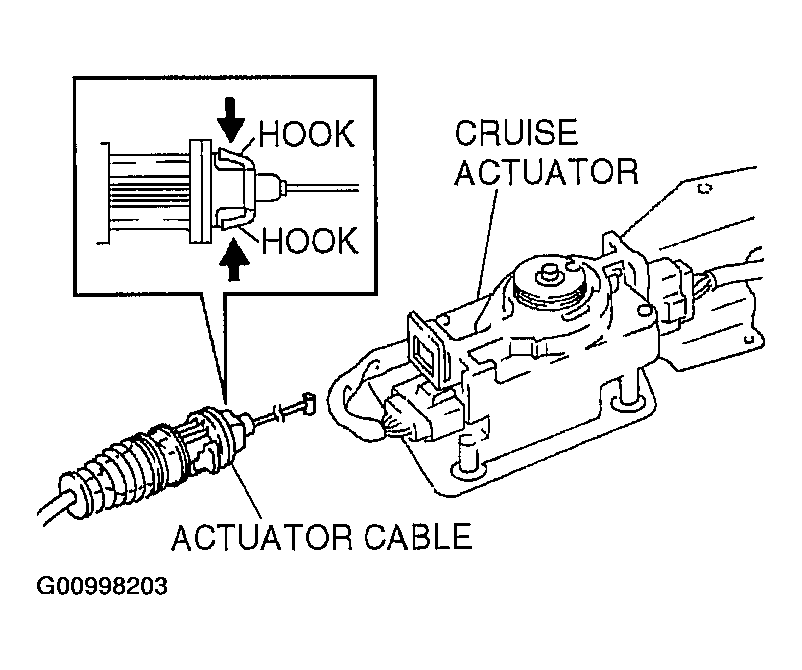

    Fig 4: Removing Actuator Cable From Cruise Actuator Bracket
    G00998203Courtesy of MAZDA MOTORS CORP.
