PID/Data Monitor And Record Function Table

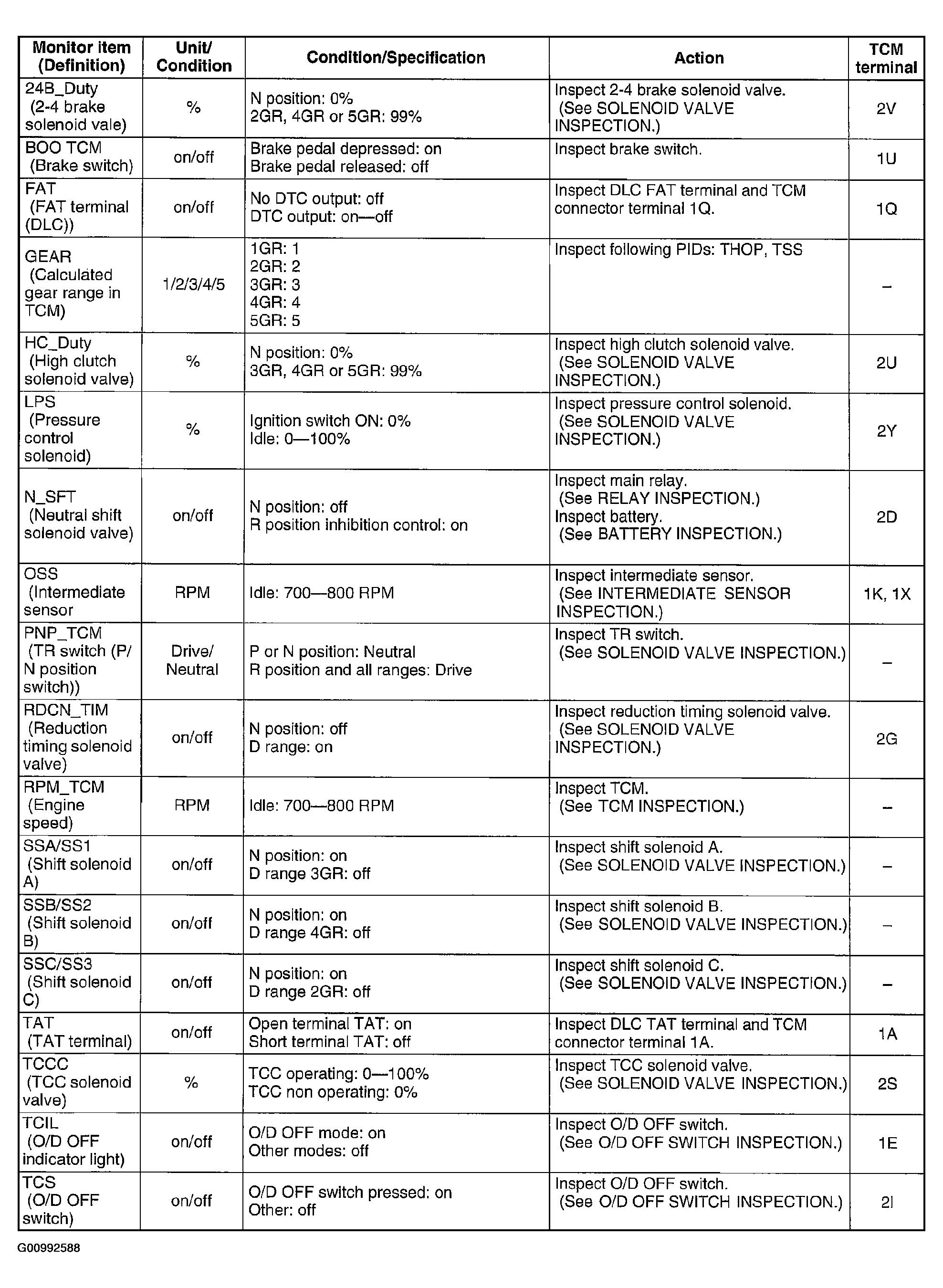

Fig 1: PID/DATA Monitor & Record Function Table (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

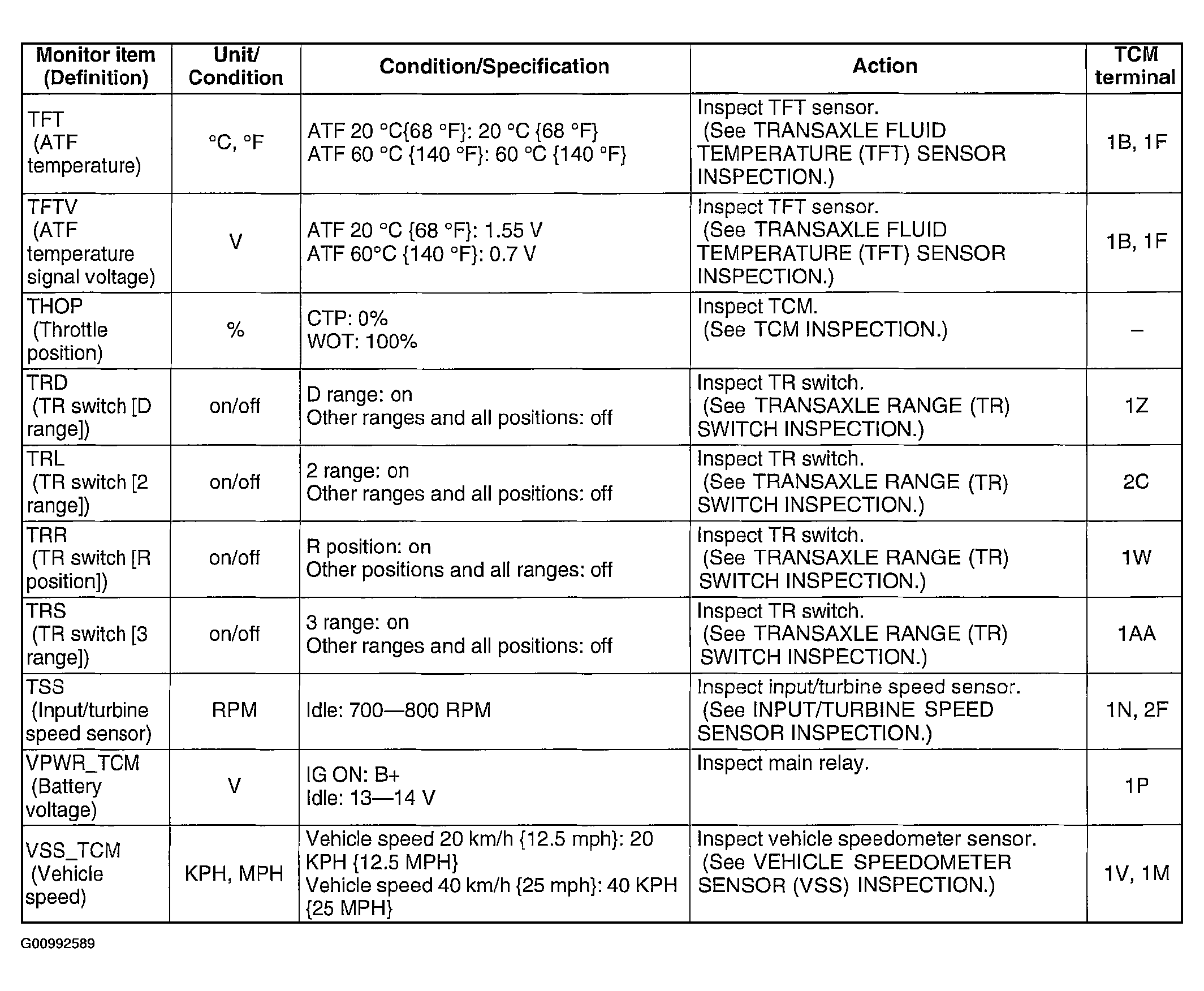

Fig 2: PID/DATA Monitor & Record Function Table (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
