DTC P0706: Transaxle Range (Tr) Switch Circuit Malfunction (Open Circuit/Ground Short Circuit)
>>
Notes
DTC P0706: Transaxle Range (Tr) Switch Circuit Malfunction (Open Circuit/Ground Short Circuit): Notes

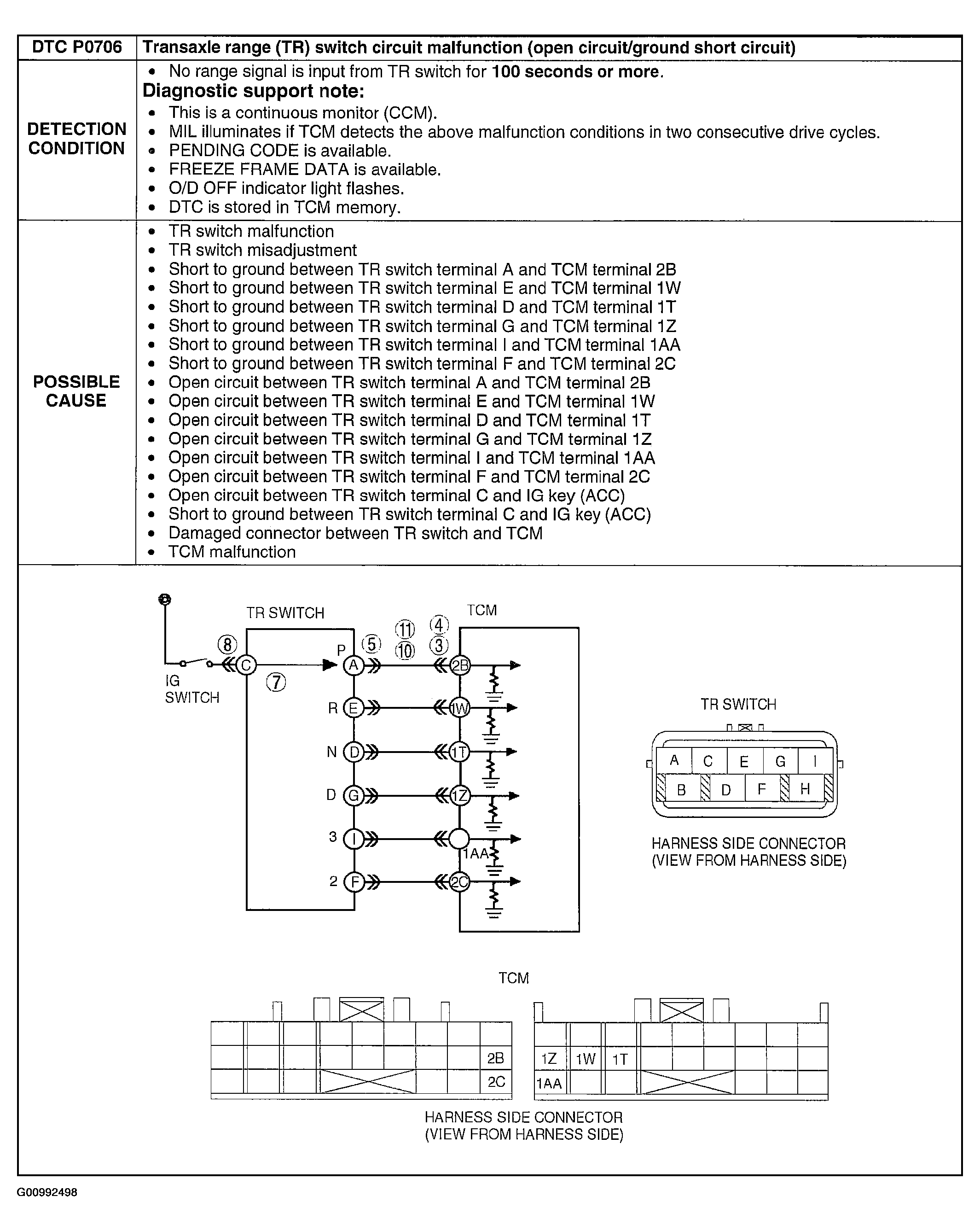

Fig 1: Possible Cause - DTC P0706
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
