Automatic Transaxle Assembly: Components: Notes

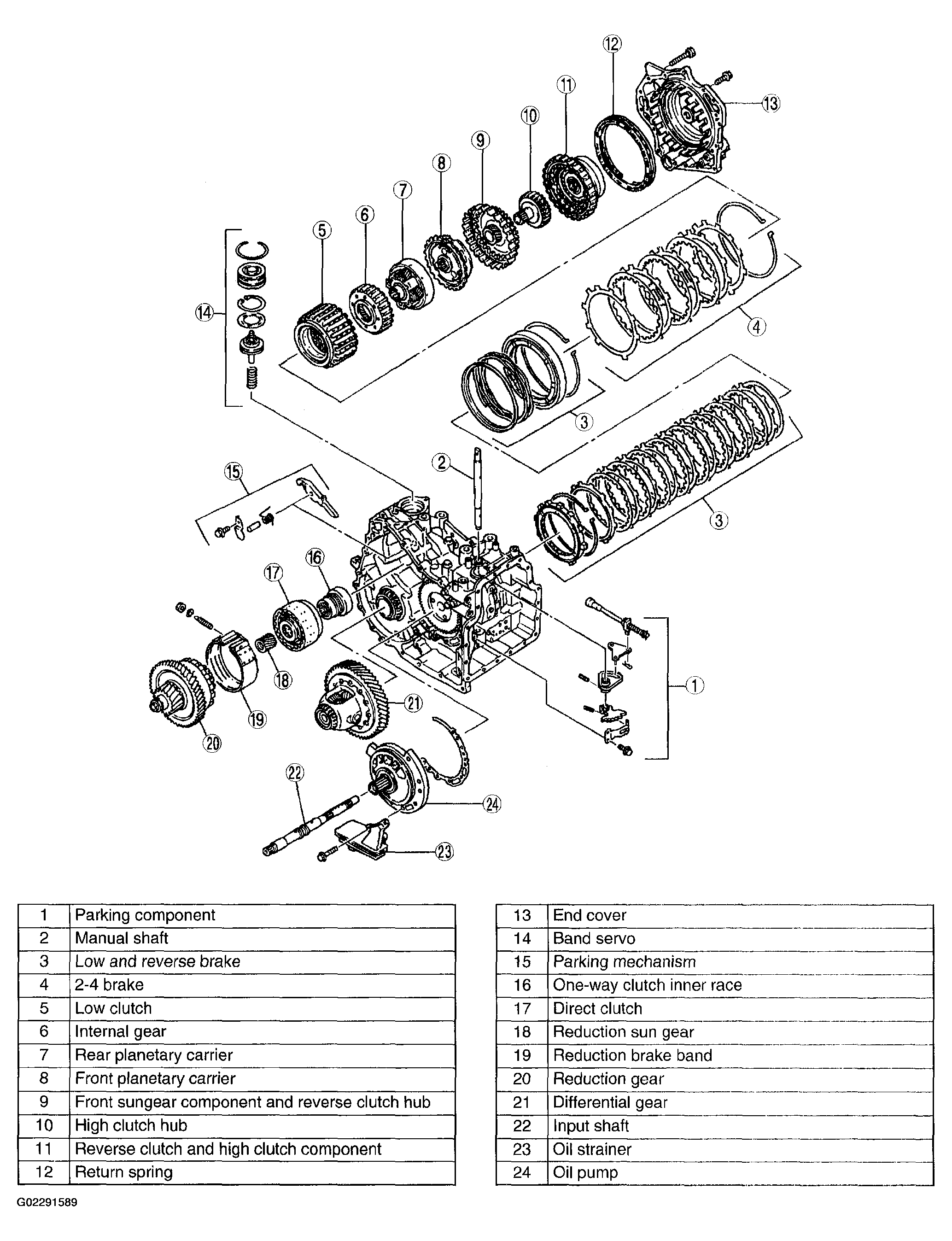

Fig 1: Exploded View Of Internal Components

G02291589

Courtesy of MAZDA MOTORS CORP.

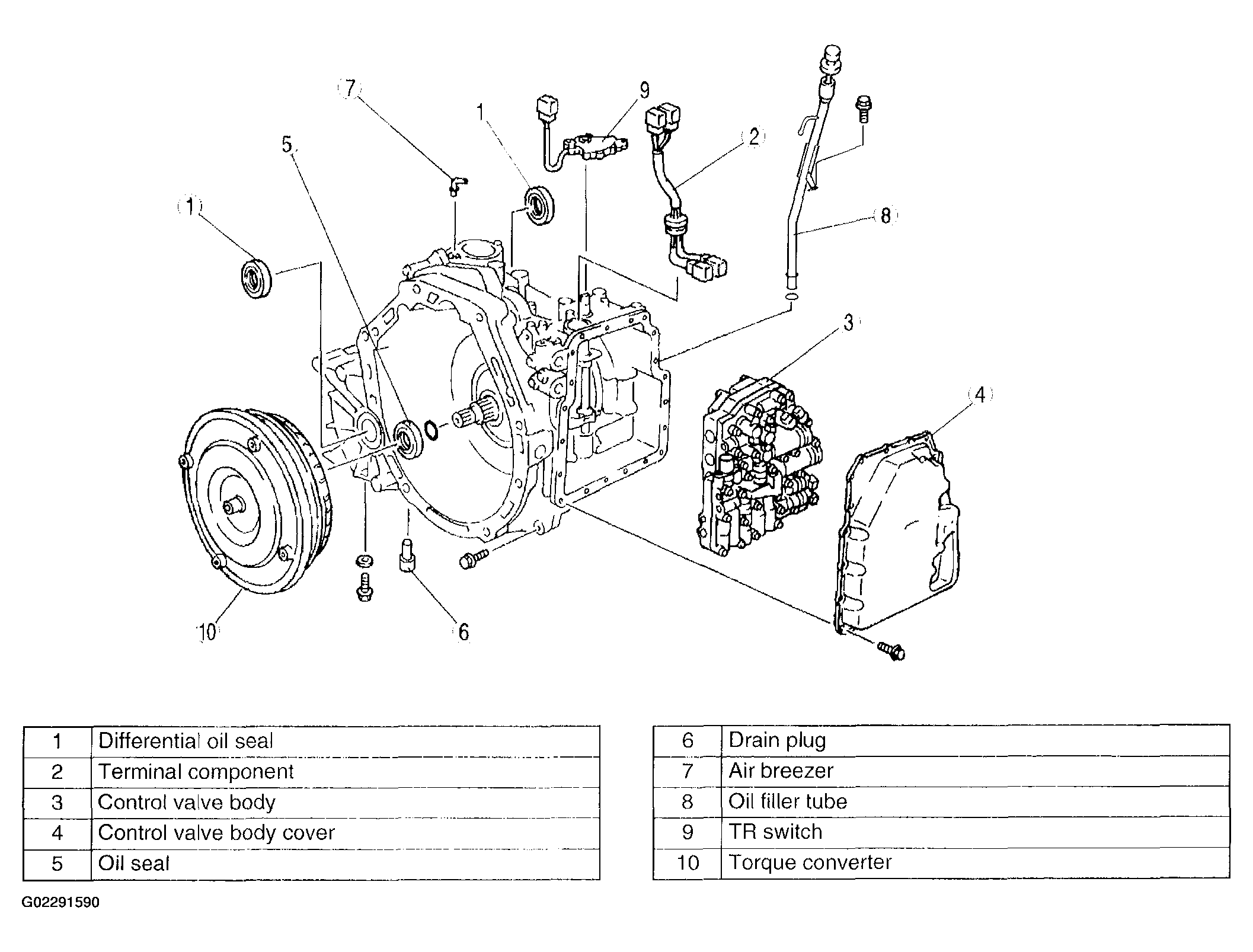

Fig 2: Exploded View Of External Components

G02291590

Courtesy of MAZDA MOTORS CORP.
