Input/Turbine Speed Sensor Signal

TCM terminal: 1N (+)-2F (-).
Oscilloscope setting: 1 V/DIV (Y) 1 ms/DIV (X).
Measuring condition: Turbine sped at 700 RPM, N position.

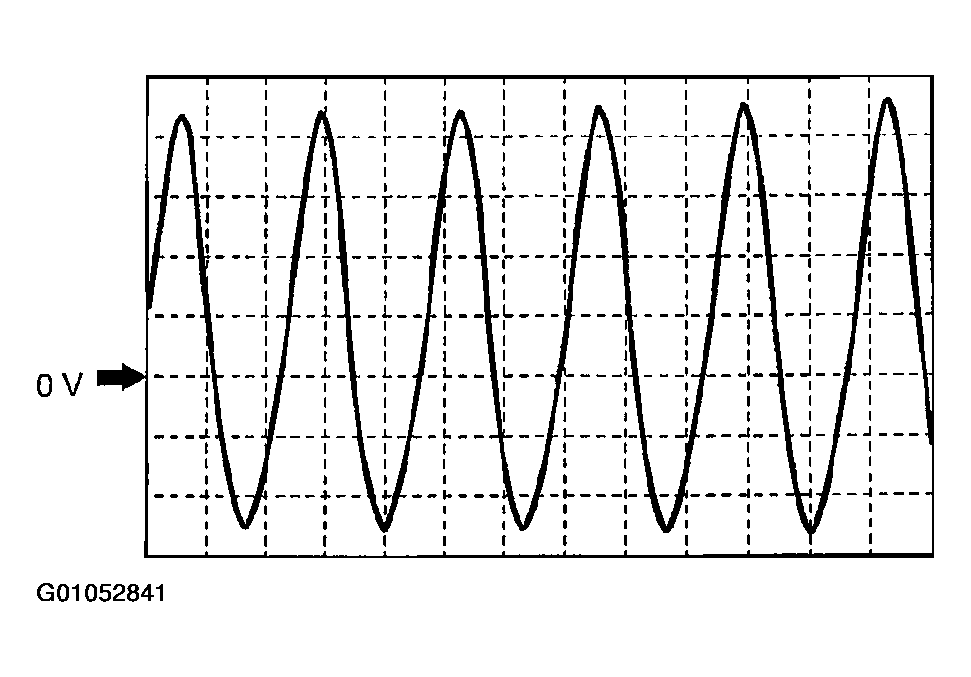

Fig 1: Inspecting Input/Turbine Speed Sensor Signal Using Oscilloscope
Courtesy of MAZDA MOTORS CORP.
