Upper Bearing Assembly Note

  1. Press the upper bearing into the valve housing using the SSTs  .

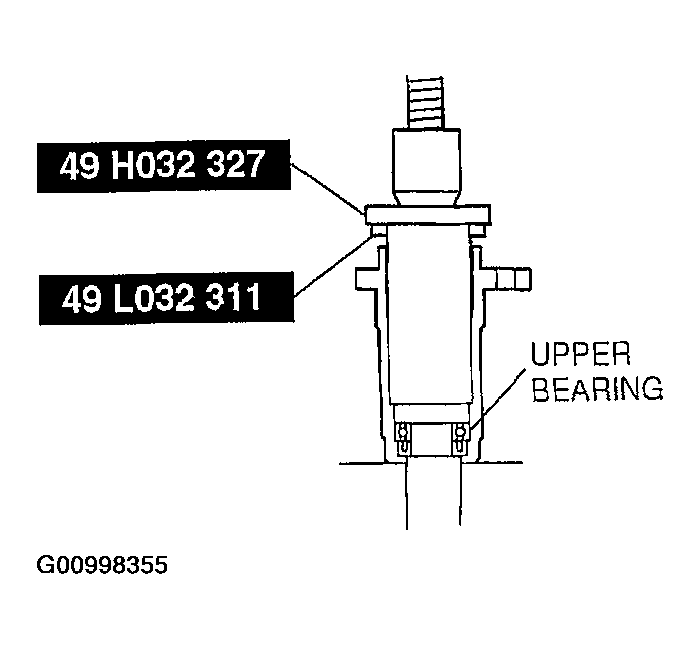

    Fig 1: Pressing Upper Bearing Into Valve Housing
    G00998355Courtesy of MAZDA MOTORS CORP.
