Seal Ring Assembly Note

  1. Assemble the seal rings to the pinion shaft component.
  2. Pull the SST  over the pinion shaft component from both directions. This will correctly shape the seal ring.

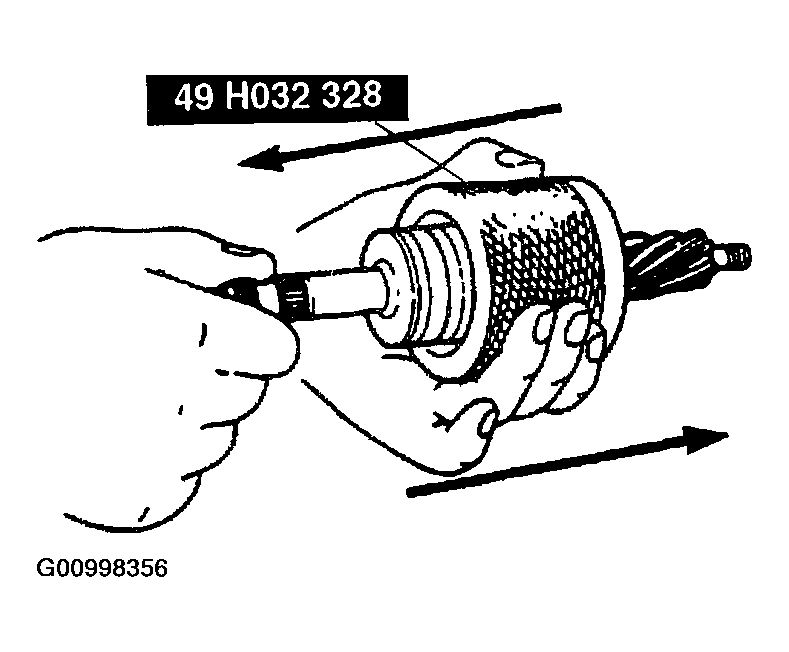

    Fig 1: Pulling Special Tool Over Pinion Shaft Component
    G00998356Courtesy of MAZDA MOTORS CORP.
  3. Install the oil seal from the pinion shaft gear side.
