Air Bag System (Two-Step Deployment Control System

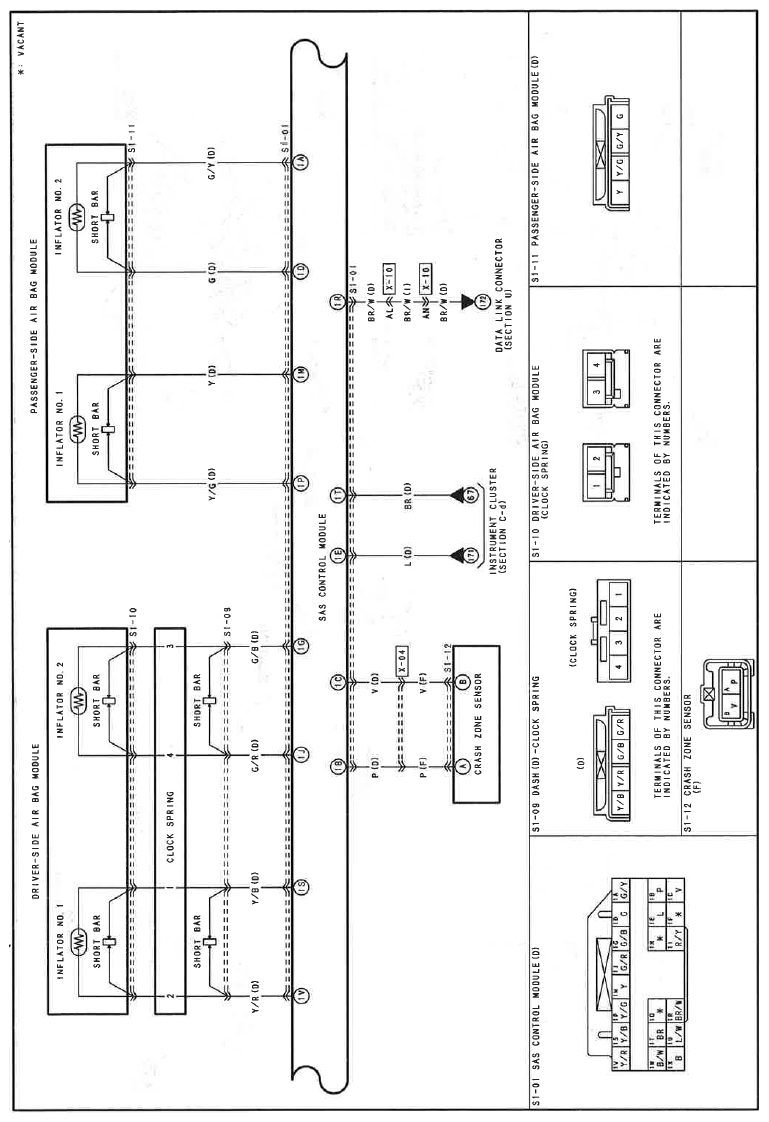

Fig 1: Air Bag System (Two-Step Deployment Control System Wiring Diagram (S-1a; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

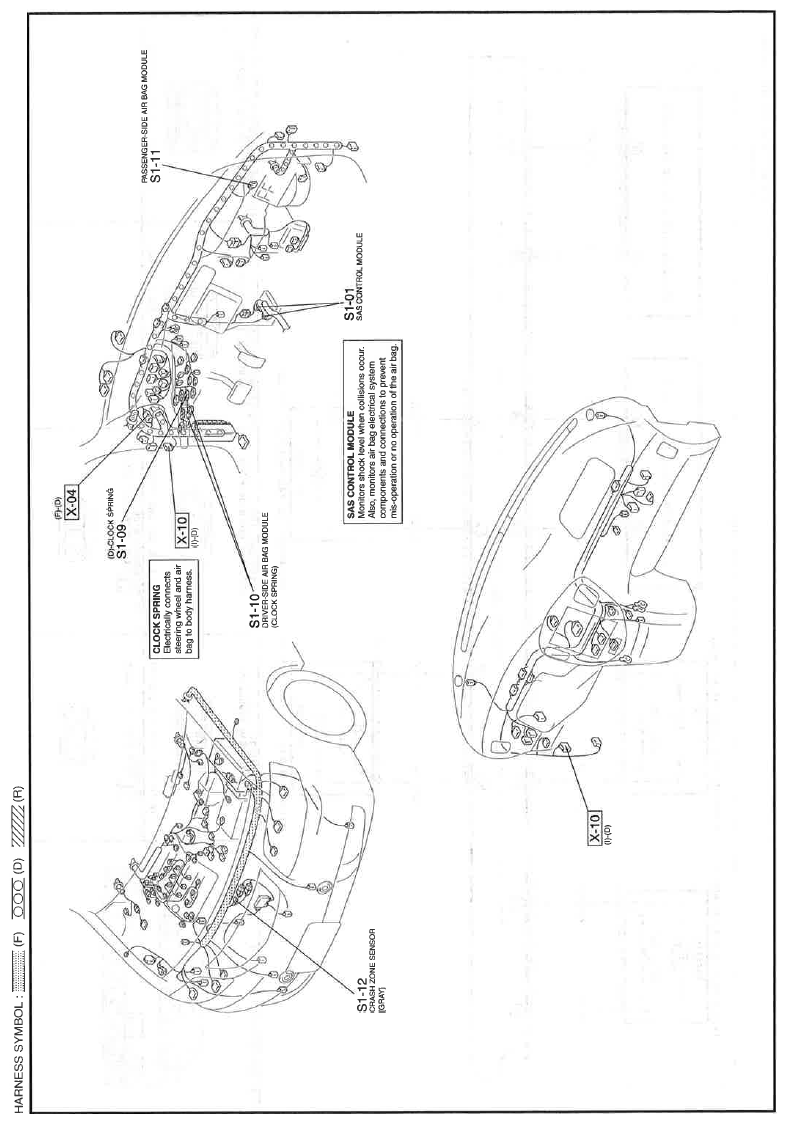

Fig 2: Air Bag System (Two-Step Deployment Control System Wiring Diagram (S-1a; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

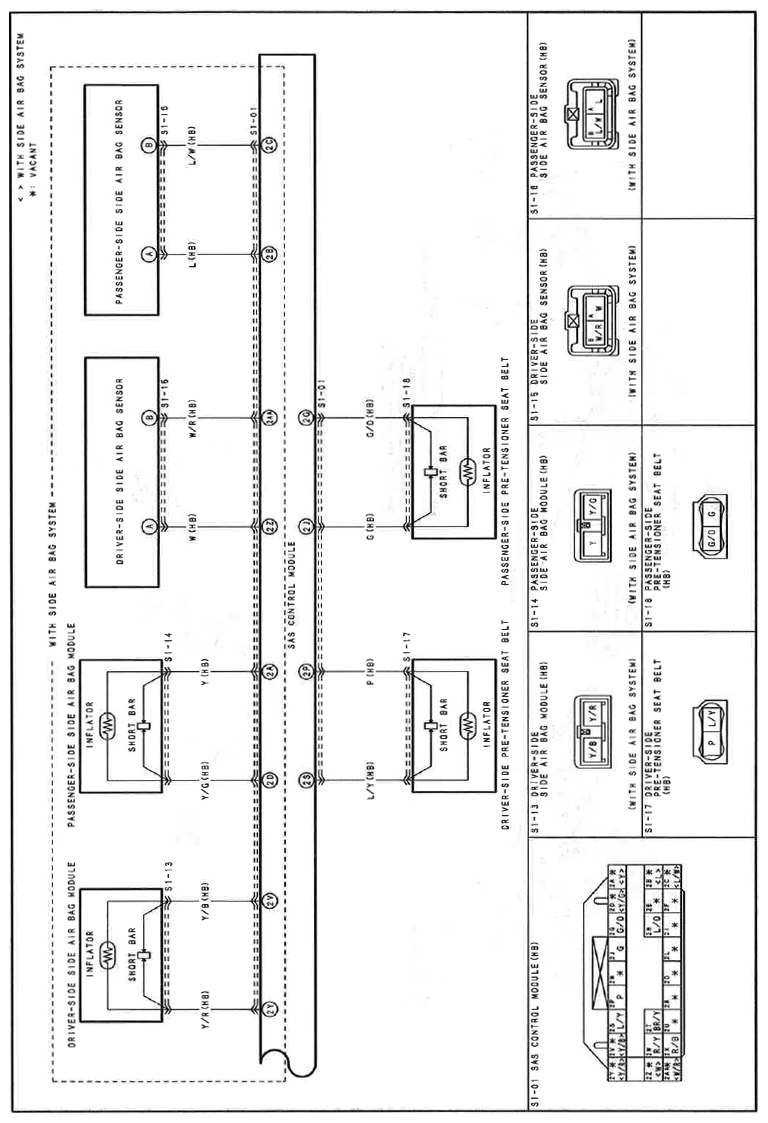

Fig 3: Air Bag System (Two-Step Deployment Control System Wiring Diagram (S-1b; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

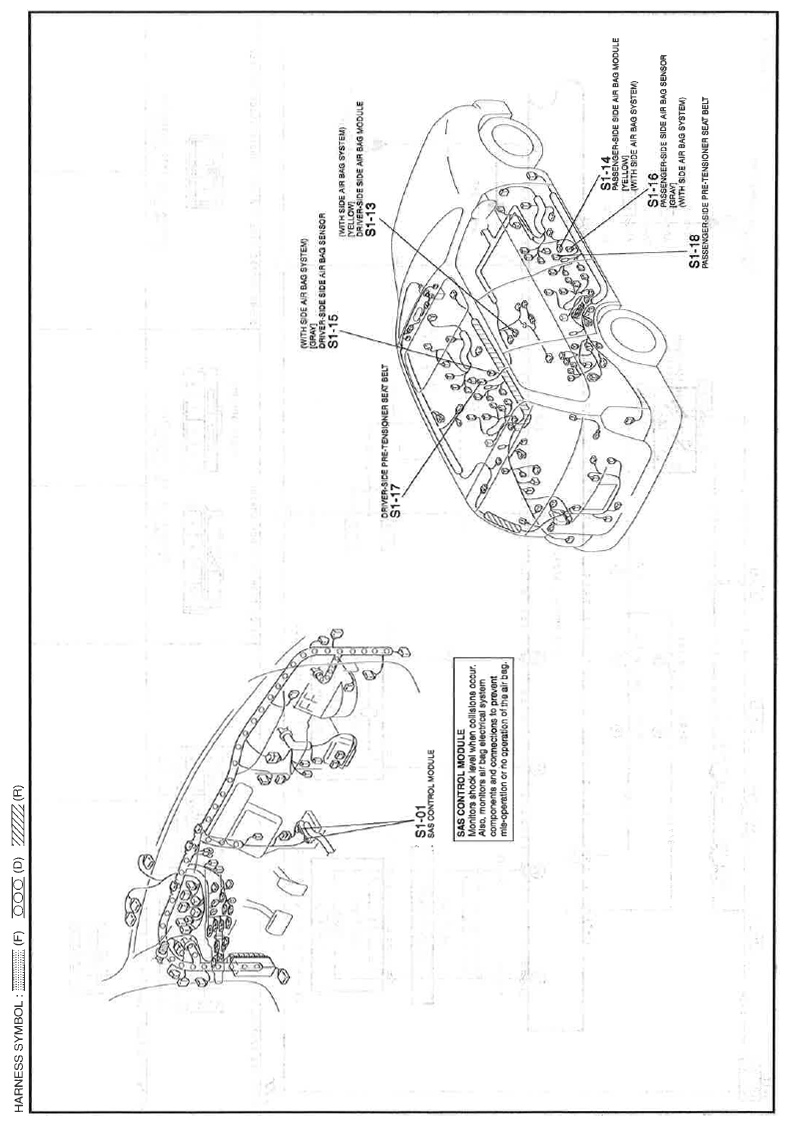

Fig 4: Air Bag System (Two-Step Deployment Control System Wiring Diagram (S-1b; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

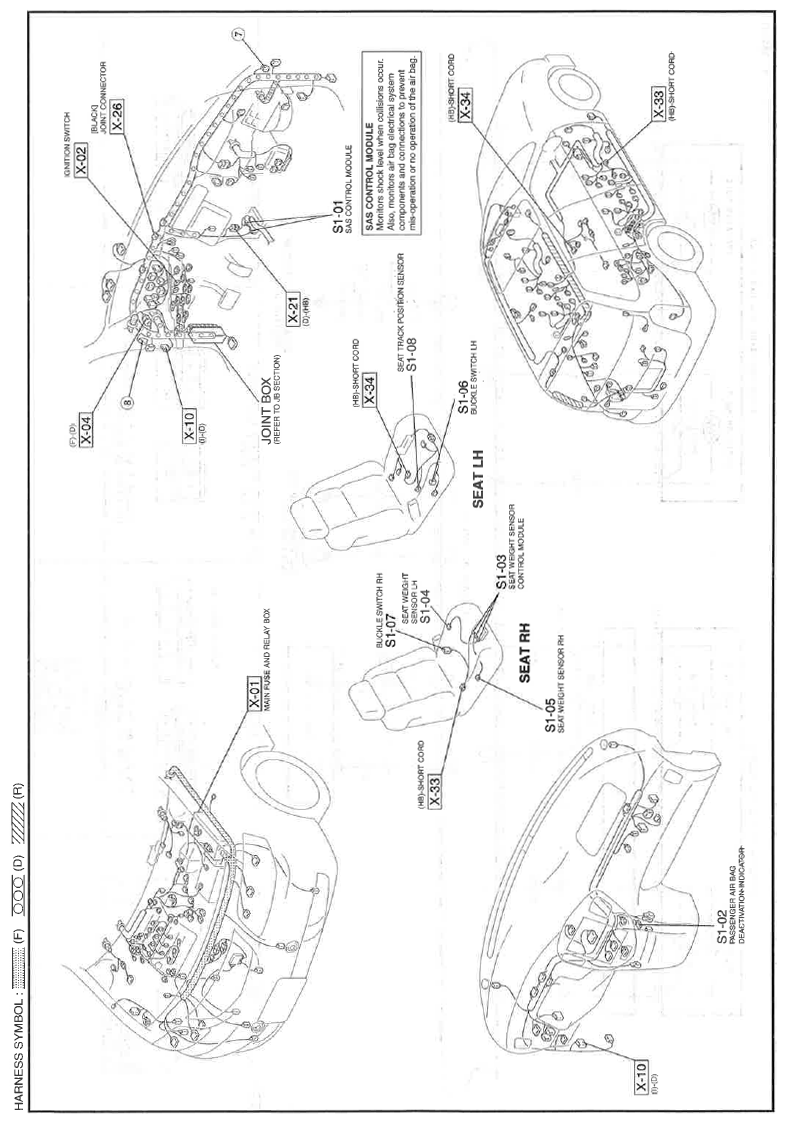

Fig 5: Air Bag System (Two-Step Deployment Control System Wiring Diagram (S-1c; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

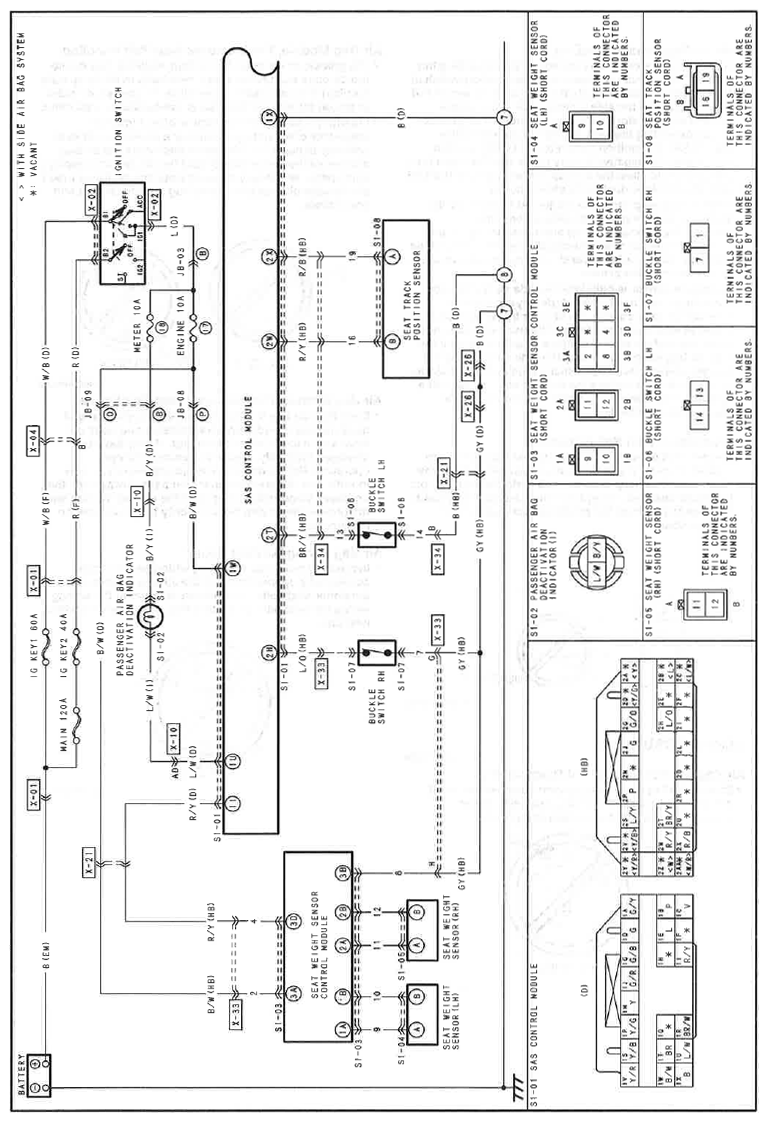

Fig 6: Air Bag System (Two-Step Deployment Control System Wiring Diagram (S-1c; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.
