Air Bag System (Standard Deployment Control System)

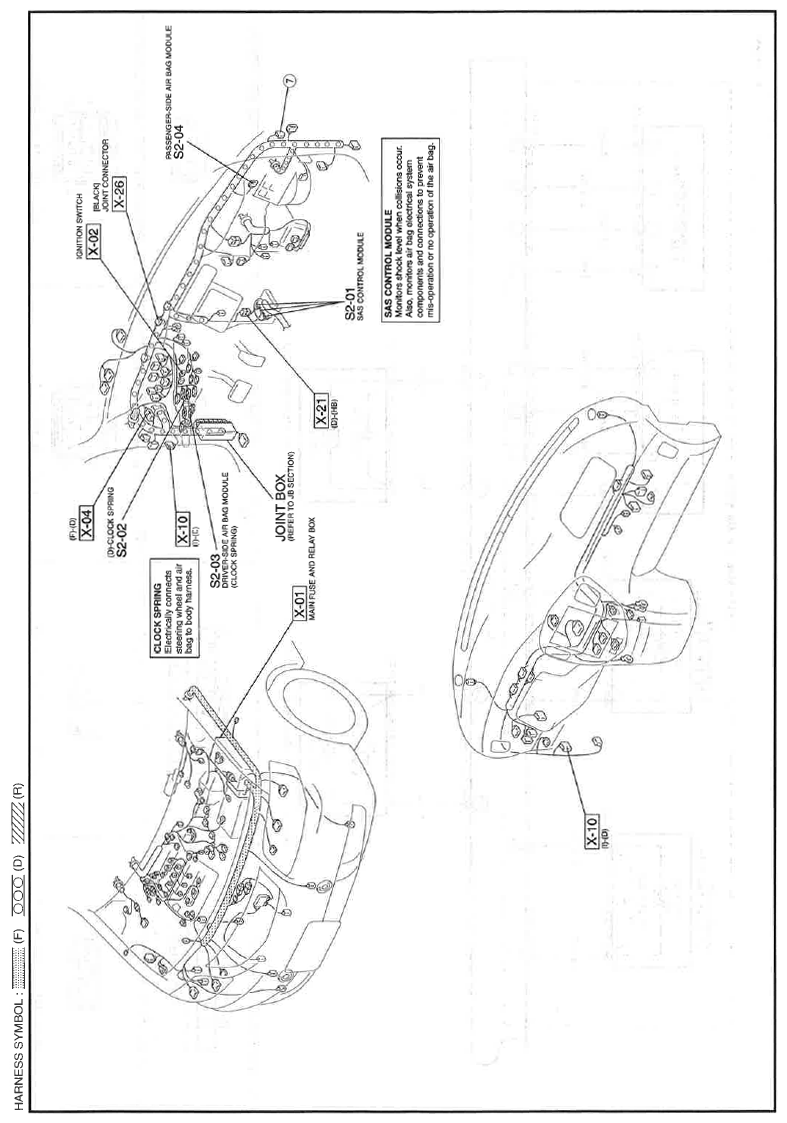

Fig 1: Air Bag System (Standard Deployment Control System) Wiring Diagram (S-2a; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

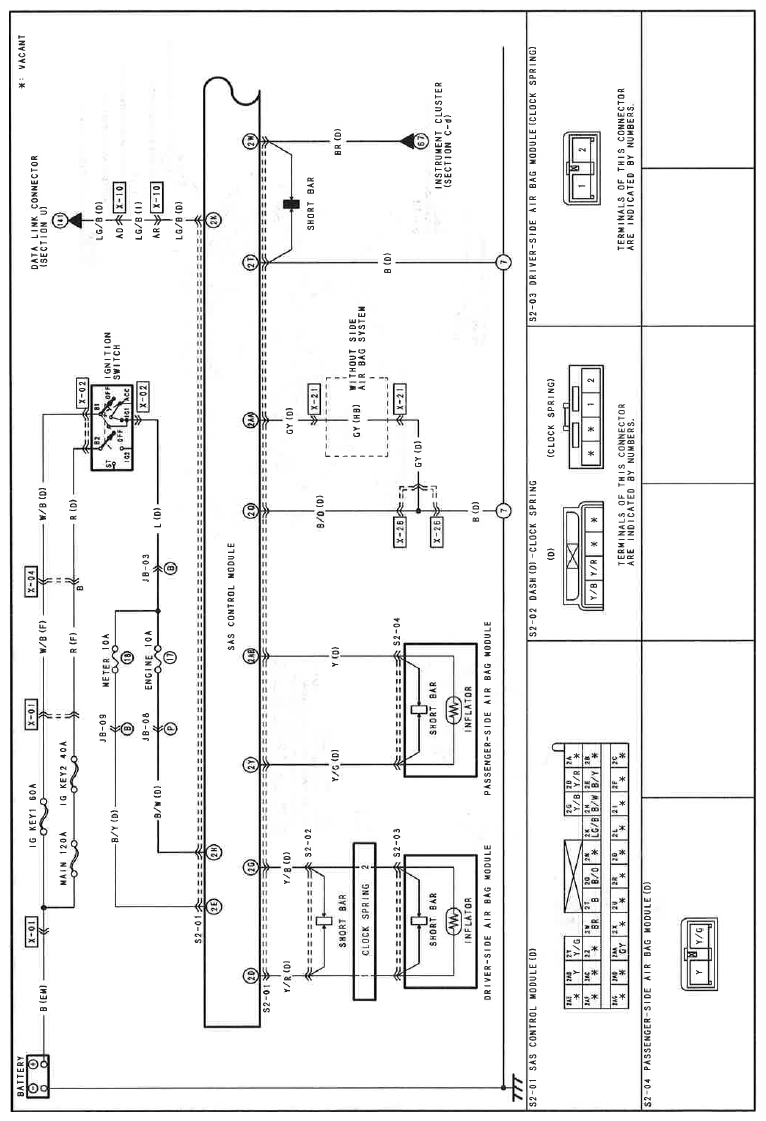

Fig 2: Air Bag System (Standard Deployment Control System) Wiring Diagram (S-2a; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.

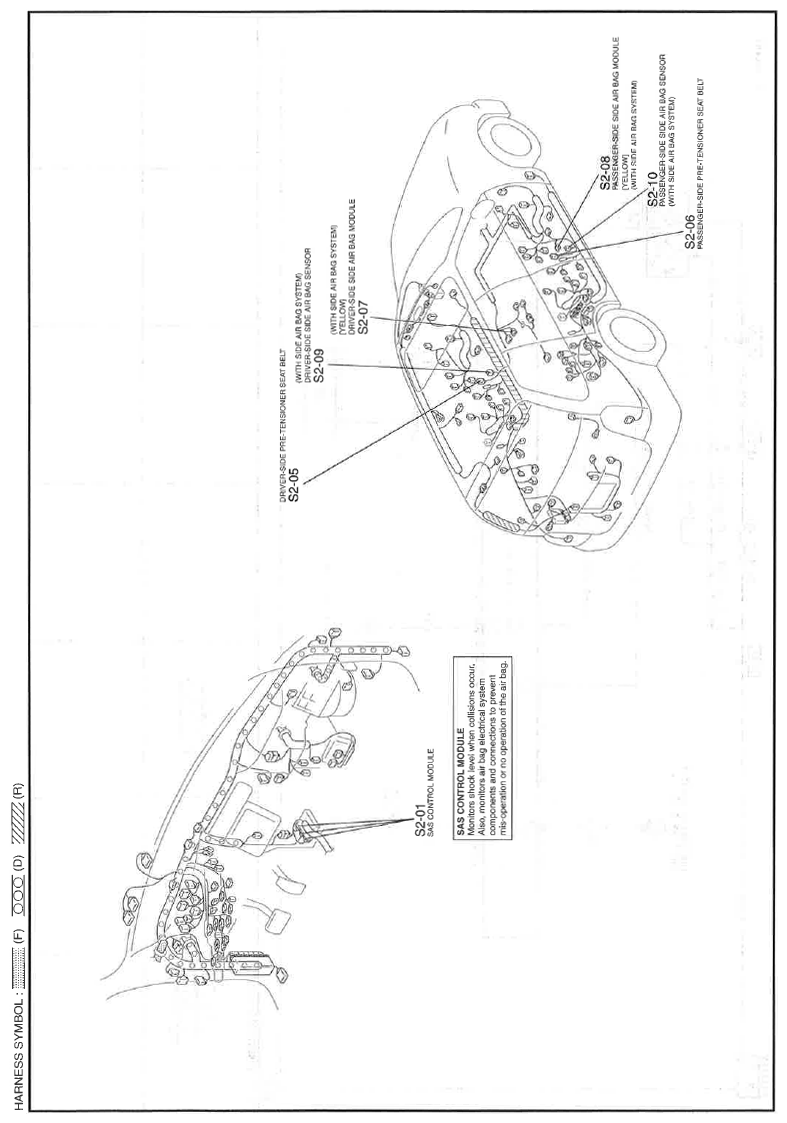

Fig 3: Air Bag System (Standard Deployment Control System) Wiring Diagram (S-2b; 1 Of 2)

Courtesy of MAZDA MOTORS CORP.

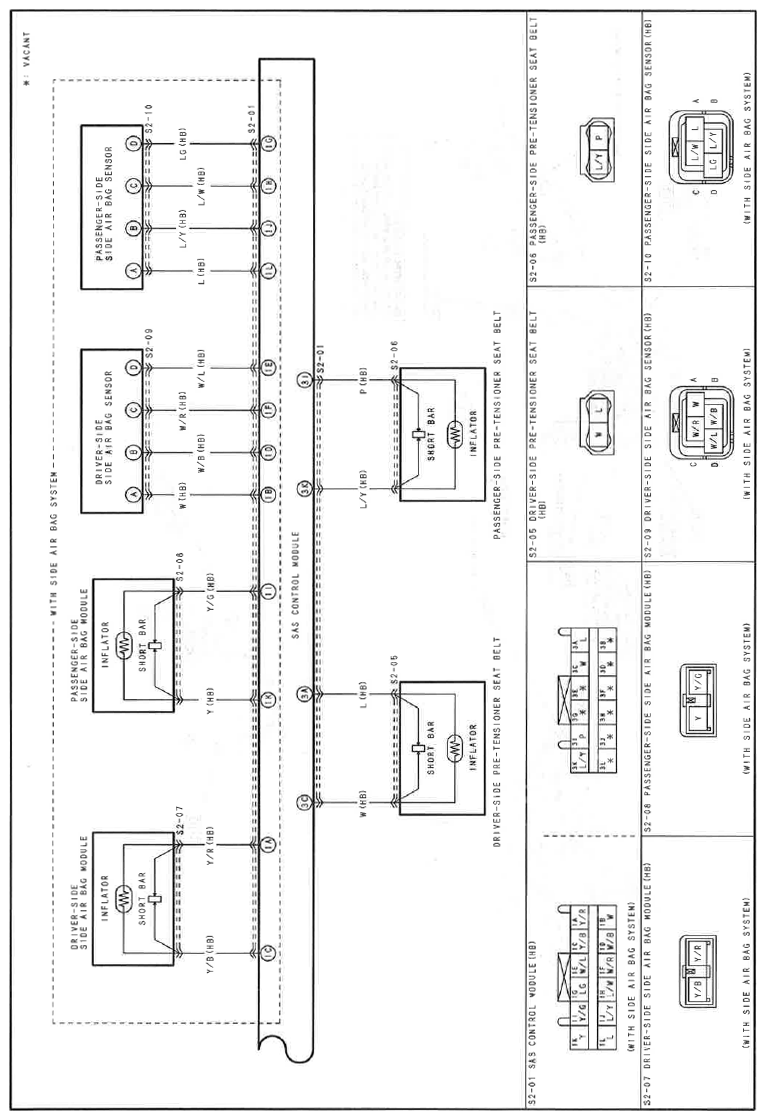

Fig 4: Air Bag System (Standard Deployment Control System) Wiring Diagram (S-2b; 2 Of 2)

Courtesy of MAZDA MOTORS CORP.
