To Determine If The Sensor is Functioning

  1. Start the engine.
  2. Turn the A/C switch on.
  3. Turn the front fan switch on.
  4. Connect the positive (+) and negative (-) probes of the tester to terminal A and terminal C of the thermosensor respectively. (The wiring harness connector must be connected to the thermosensor connector.)
  5. Inspect the voltage as shown below.
    • If there is any malfunction, inspect on/off points of the thermosensor.
      Fig 1: Specification Table For Magnetic Clutch Voltage
      G00992159Courtesy of MAZDA MOTORS CORP.

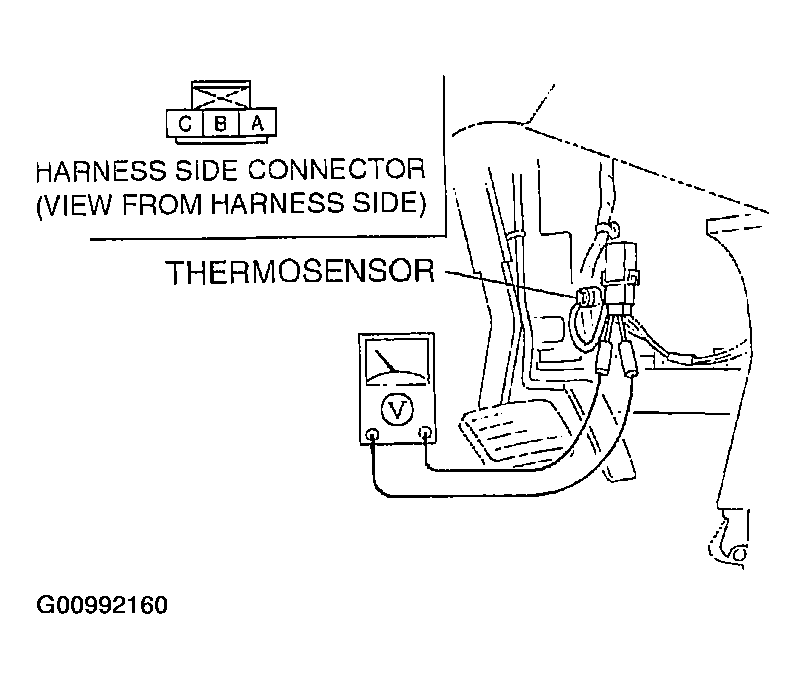

      Fig 2: Inspecting Voltage Of Thermostatic
      G00992160Courtesy of MAZDA MOTORS CORP.
