Front Climate Control Unit Installation

  1. Install the front climate unit to the center panel.
  2. Pass each wire through the following routes then connect to front A/C unit.
  3. Connect the front climate control unit connectors.
  4. Install the meter hood.
  5. Adjust the front climate control wire. (See FRONT CLIMATE CONTROL UNIT WIRE ADJUSTMENT. )
  6. Connect the negative battery cable.

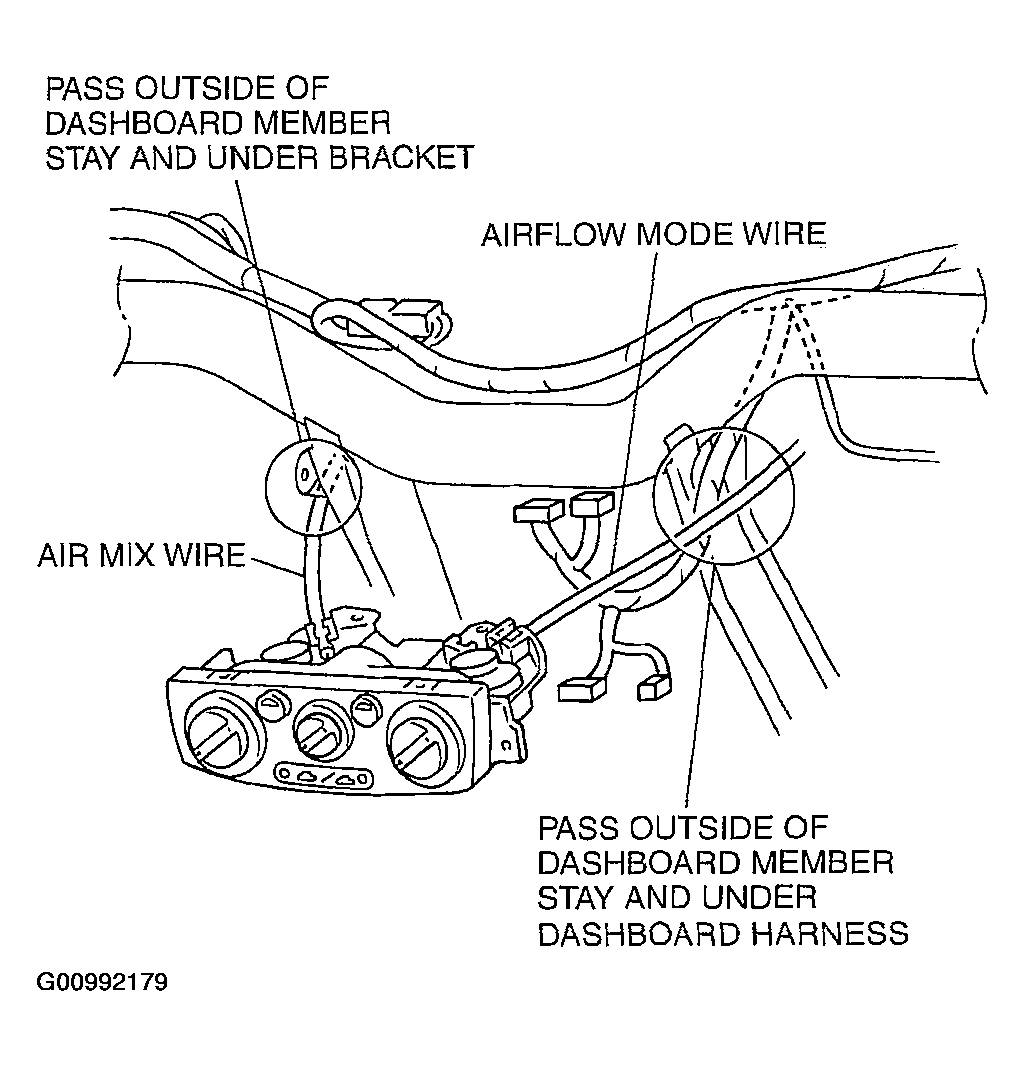

    Fig 1: Installing Front Climate Control Unit
    G00992179Courtesy of MAZDA MOTORS CORP.
