Front Climate Control Unit Disassembly/Assembly
>>
Wire Disassembly Note
Wire Disassembly Note
Disassemble the wires in the order shown.

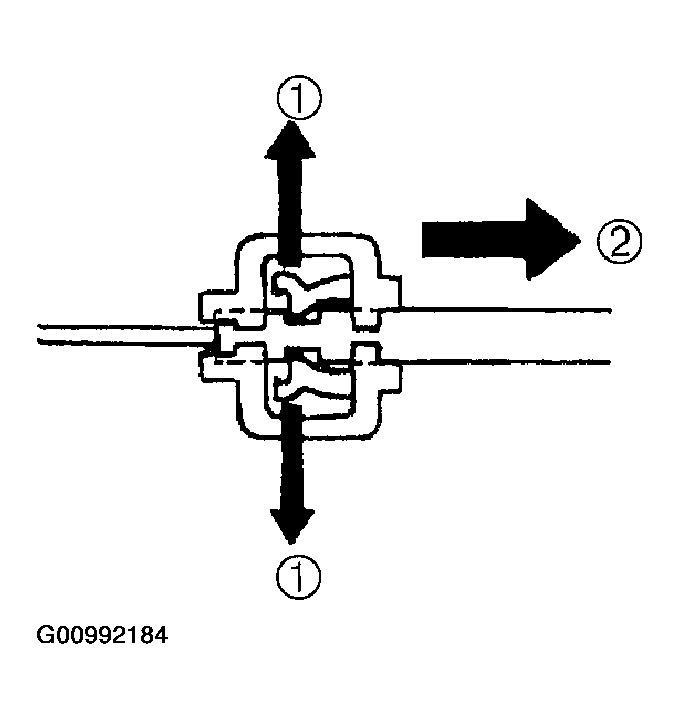

Fig 1: Disassembling Wires In Order
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
