Basic System Location Index
Basic System Location Index

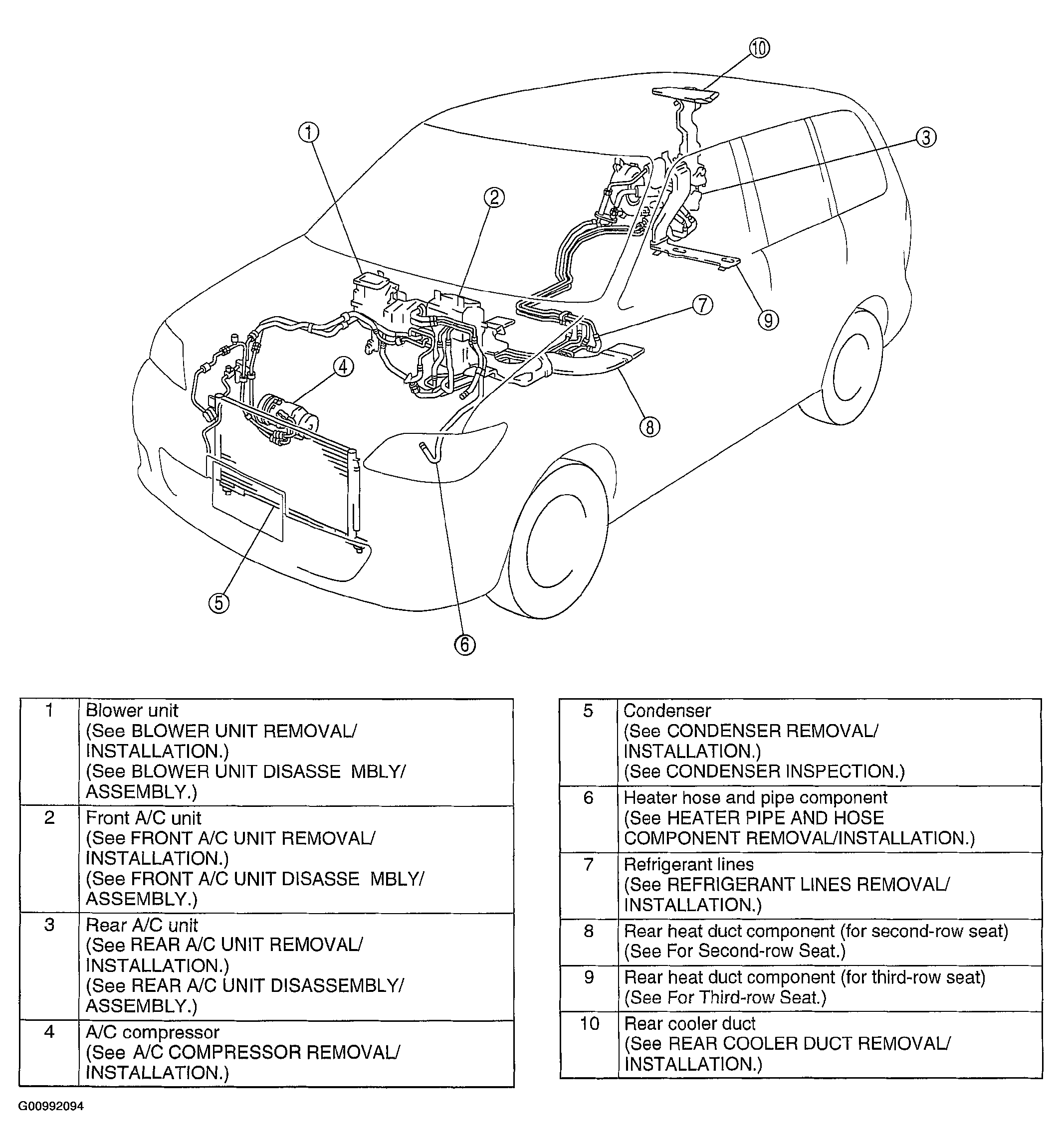

Fig 1: Locating Basic System Components
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
