Home >> Mazda >> 2004 >> MPV ES >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System AJ] >> DTC P2402: Evaporative Emissions System Leak Detection Pump Motor Circuit High Input >> Diagnostic Procedure

Diagnostic Procedure

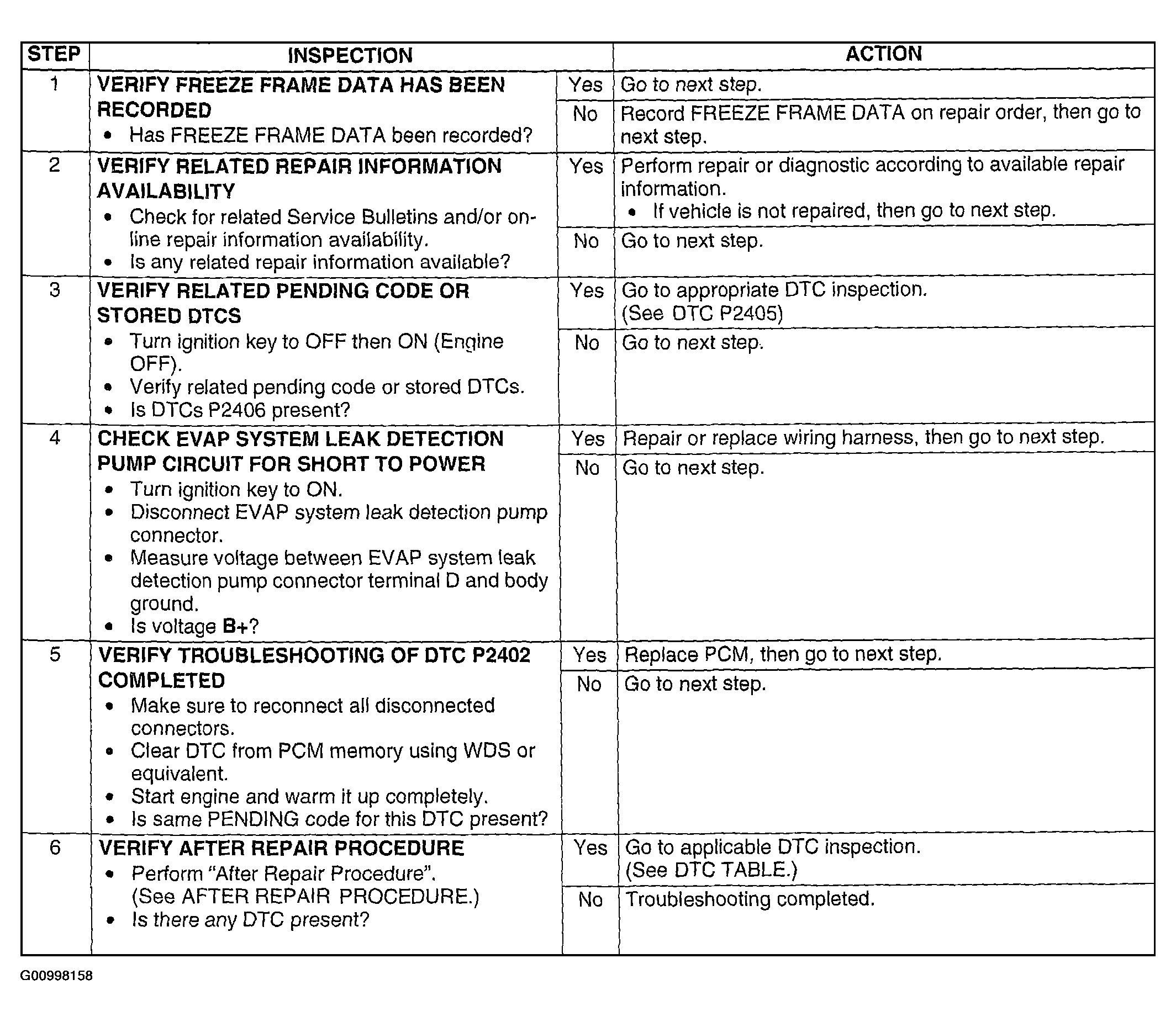

Fig 1: DTC P2402 Diagnostic Procedure Chart
G00998158Courtesy of MAZDA MOTORS CORP.
