DTC P0171, P0174: Fuel Trim System (RH) Too Lean; Fuel Trim System (LH) Too Lean
>>
Diagnostic Procedure
Diagnostic Procedure

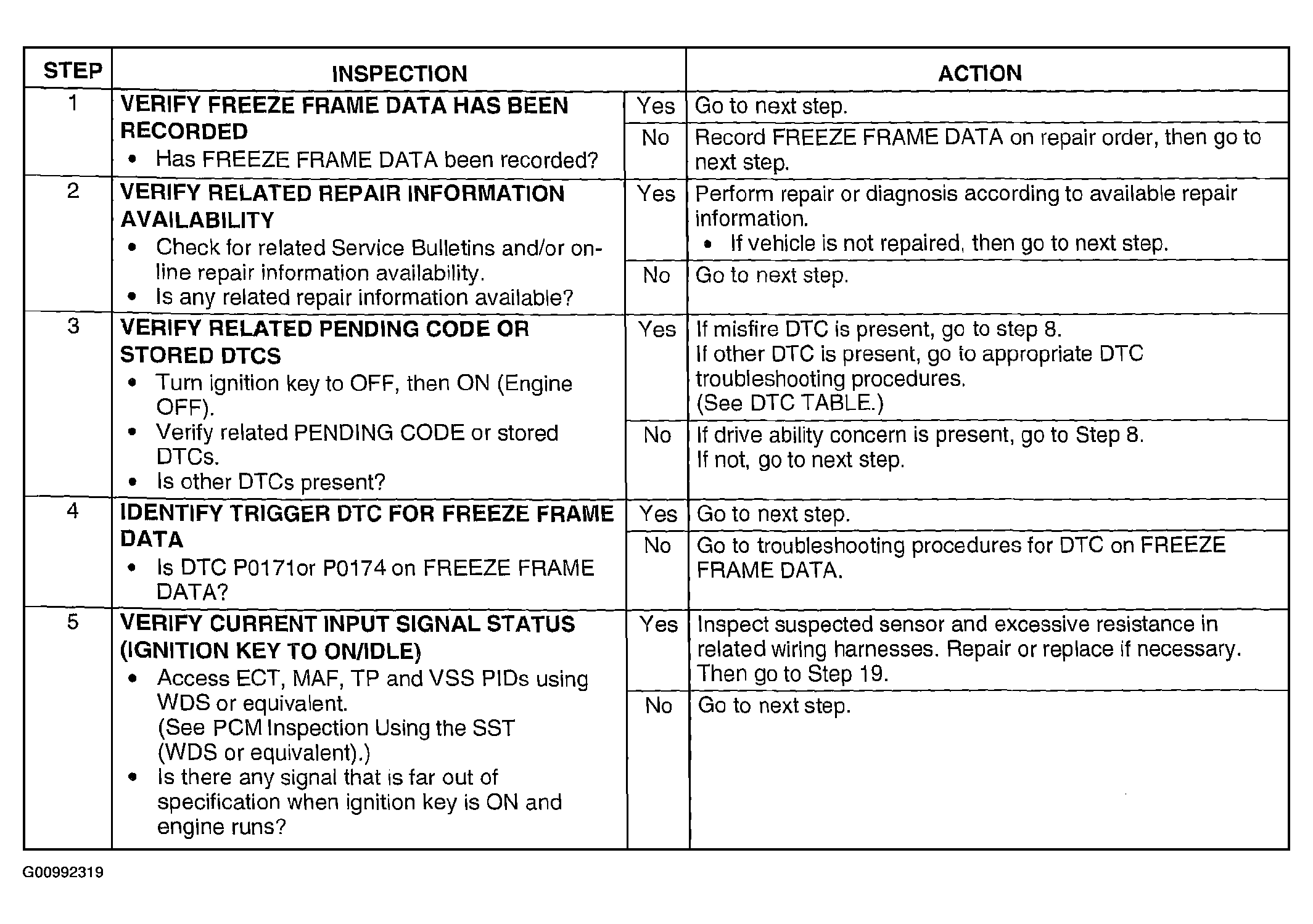

Fig 1: DTC P0171, P0174 Diagnostic Procedure Chart (Step 1-5)
Courtesy of MAZDA MOTORS CORP.

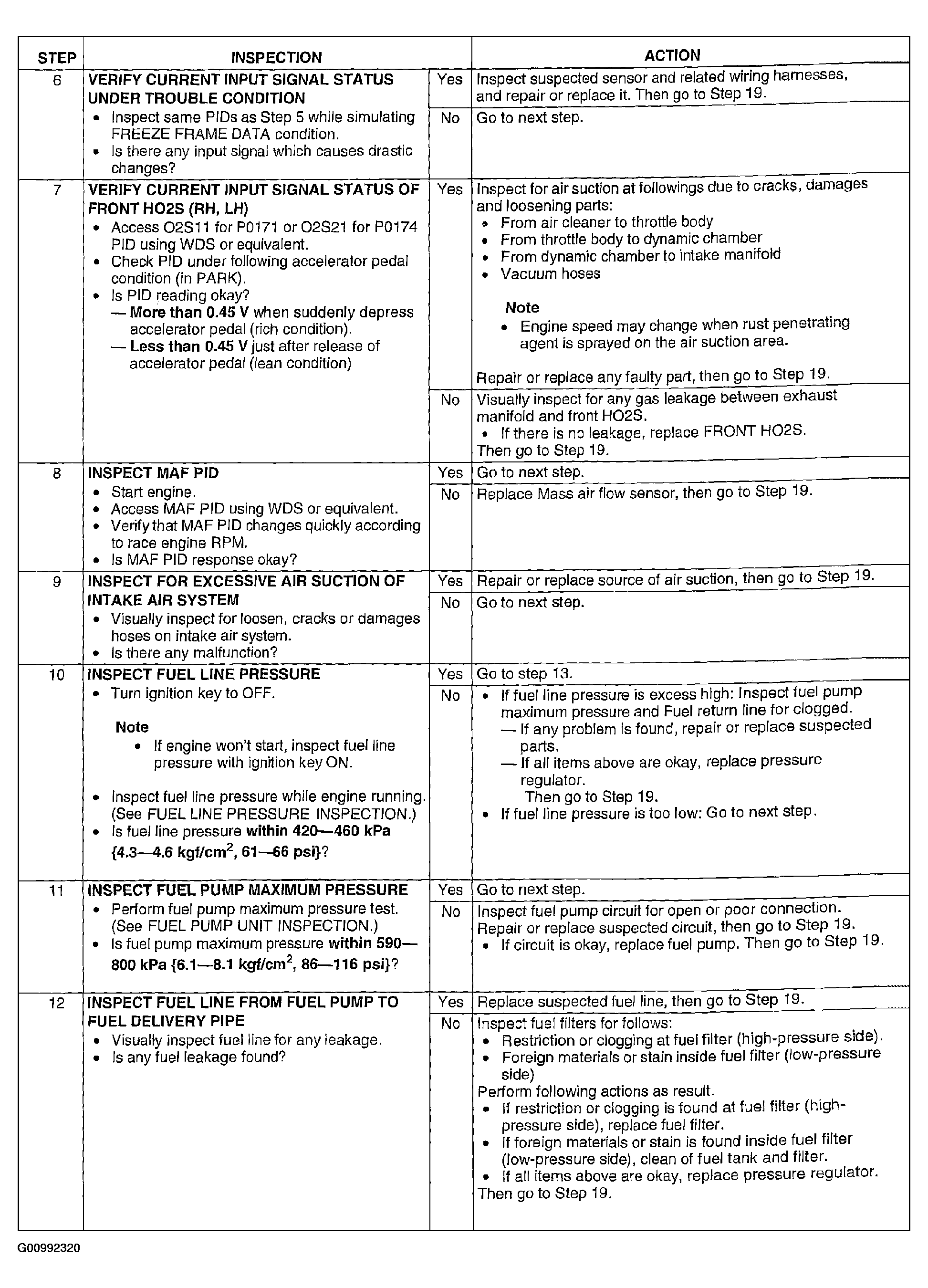

Fig 2: DTC P0171, P0174 Diagnostic Procedure Chart (Step 6-12)
Courtesy of MAZDA MOTORS CORP.

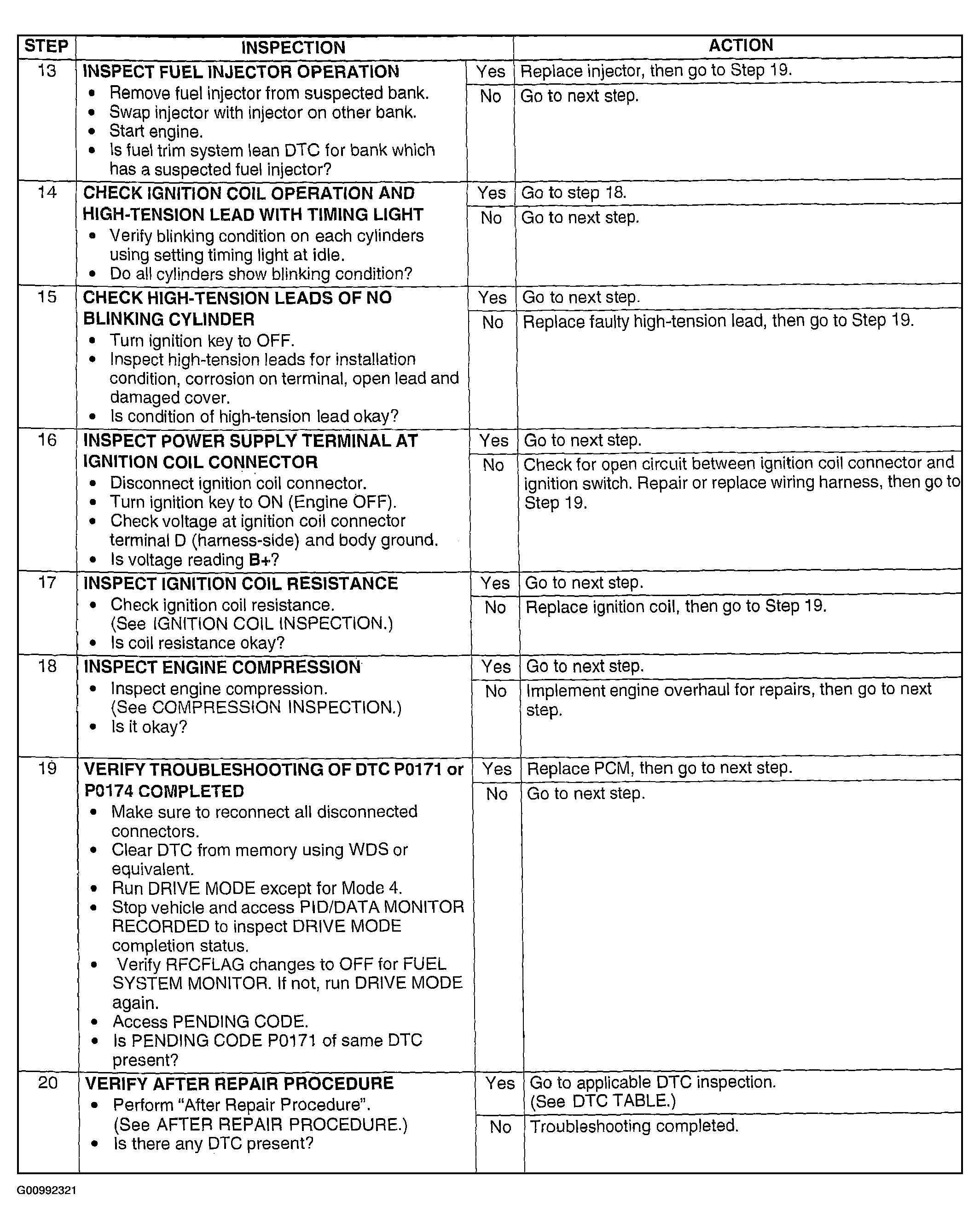

Fig 3: DTC P0171, P0174 Diagnostic Procedure Chart (Step 13-20)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
