Circuit Open/Short Inspection: Notes

  1. Disconnect the negative battery cable.
  2. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)
  3. Connect the SST  (104 Pin Breakout Box) with the PCM disconnected.
  4. Tighten the connector bolt.

    Tightening torque

    3.0-5.4 N.m {30-56 kgf.cm, 27-48 in.lbf}

  5. Check the following wiring harnesses for open or short (continuity check).

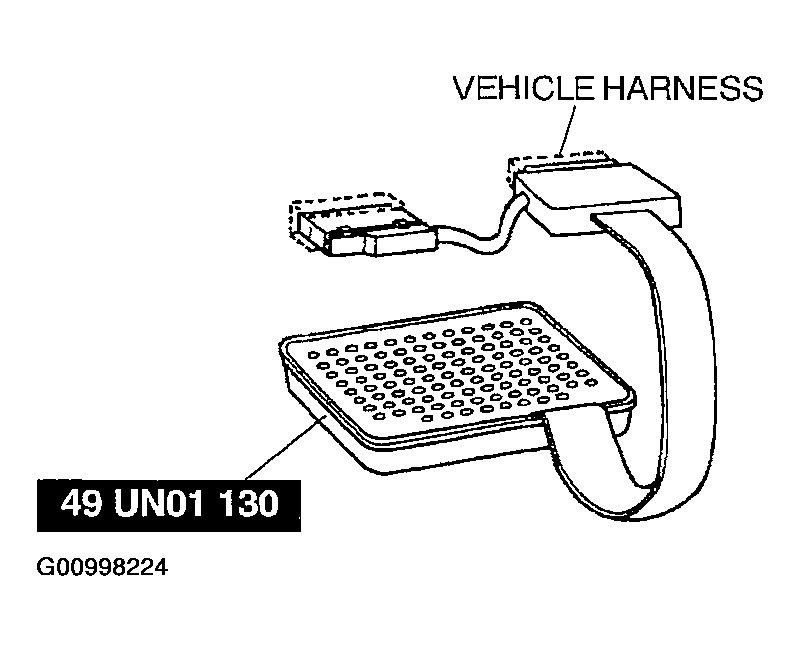

    Fig 1: Connecting Special Service Tool (104 Pin Breakout Box)
    G00998224Courtesy of MAZDA MOTORS CORP.
