Audio Control Switch Connector End View

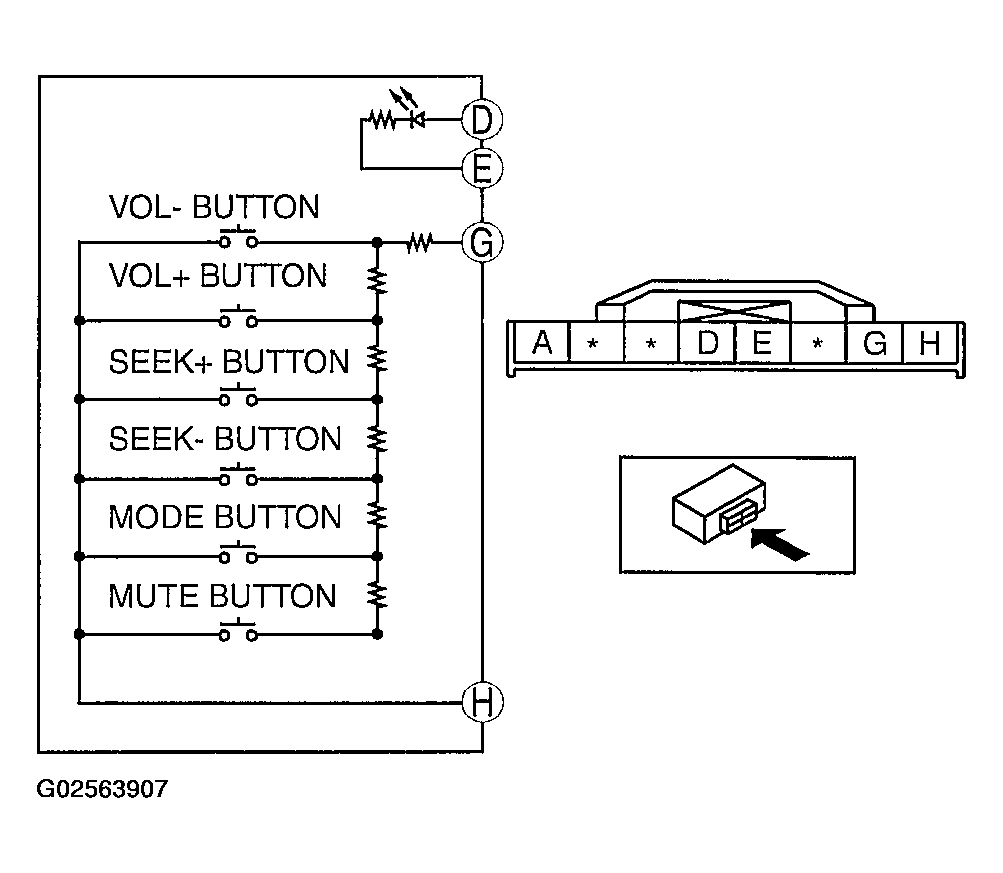

Fig 1: Audio Control Switch Connector End View

G02563907

Courtesy of MAZDA MOTORS CORP.
