Upper Module Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the audio unit. (See AUDIO UNIT REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table/figure.
    REMOVING/INSTALLING UPPER MODULE

    Component/Step No. Component Description
    1 Screw (See SCREW INSTALLATION NOTE )
    2 Upper module (See UPPER MODULE REMOVAL NOTE )
    3 Cover (See COVER REMOVAL NOTE )

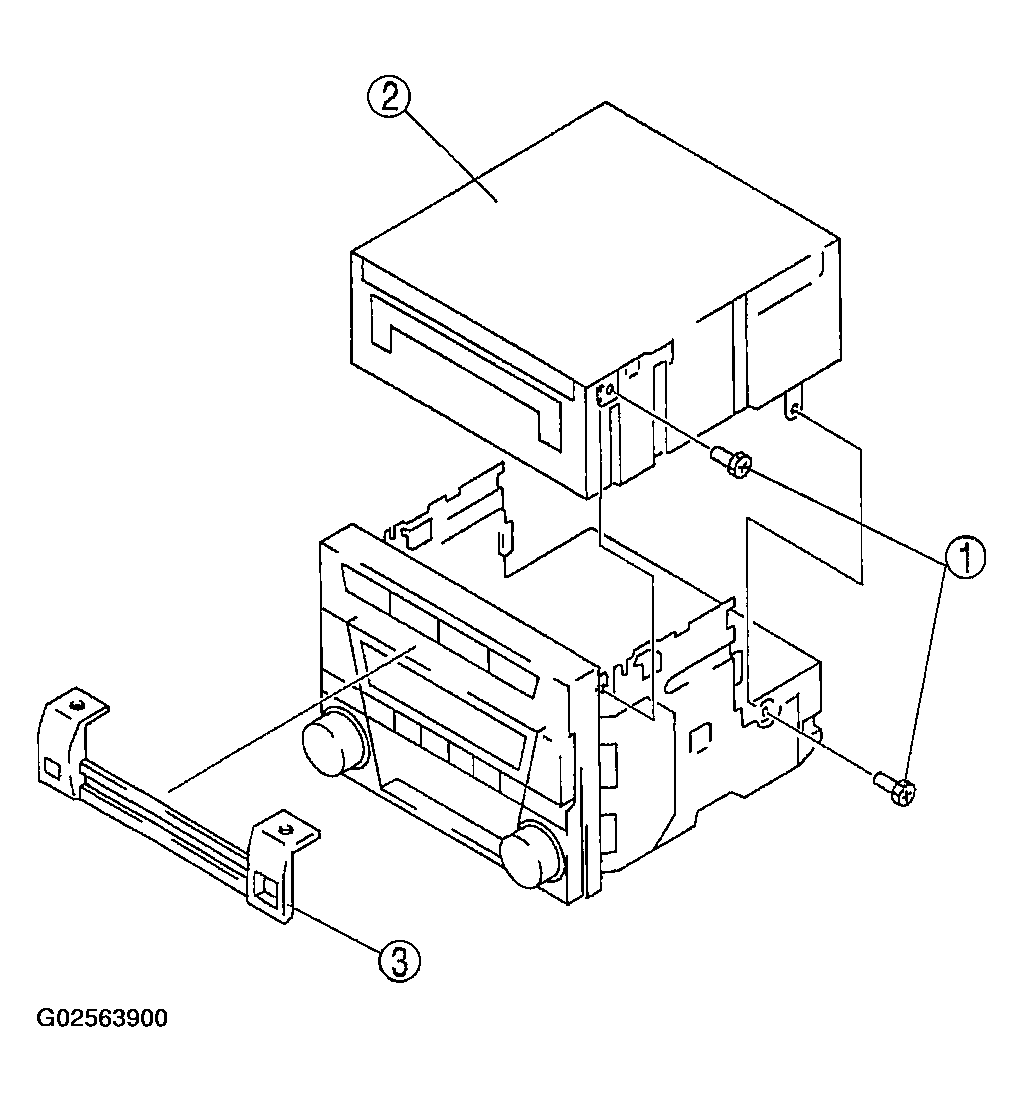

    Fig 1: Removing/Installing Upper Module
    G02563900Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
