On-Board Diagnostic [Cruise Control System)
>>
Inspection Of DTCS For Condition Detection Mode
>>
Condition Code List
Condition Code List

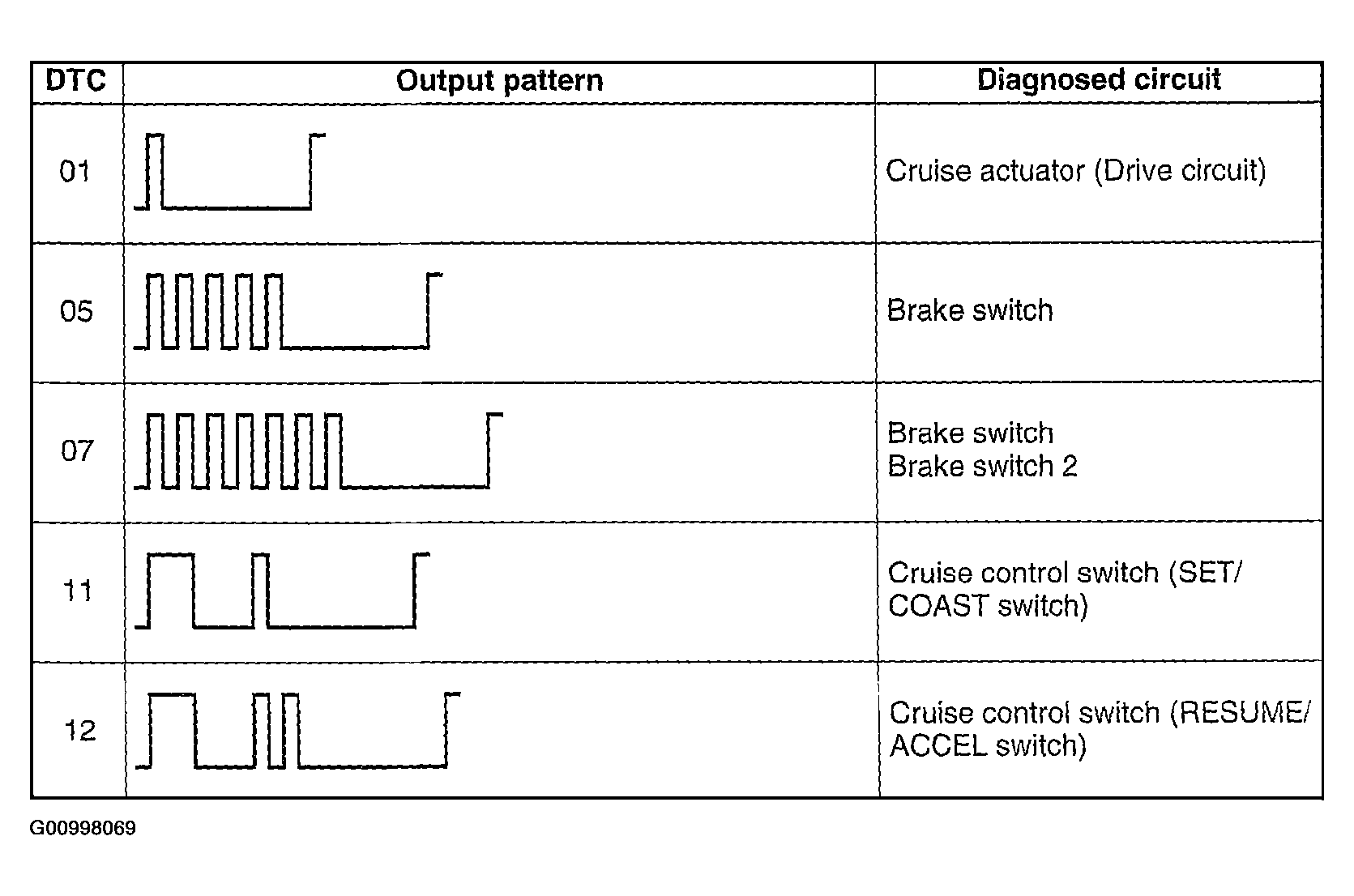

Fig 1: Condition Code List (DTC 01, 05, 07, 11 & 12)
Courtesy of MAZDA MOTORS CORP.

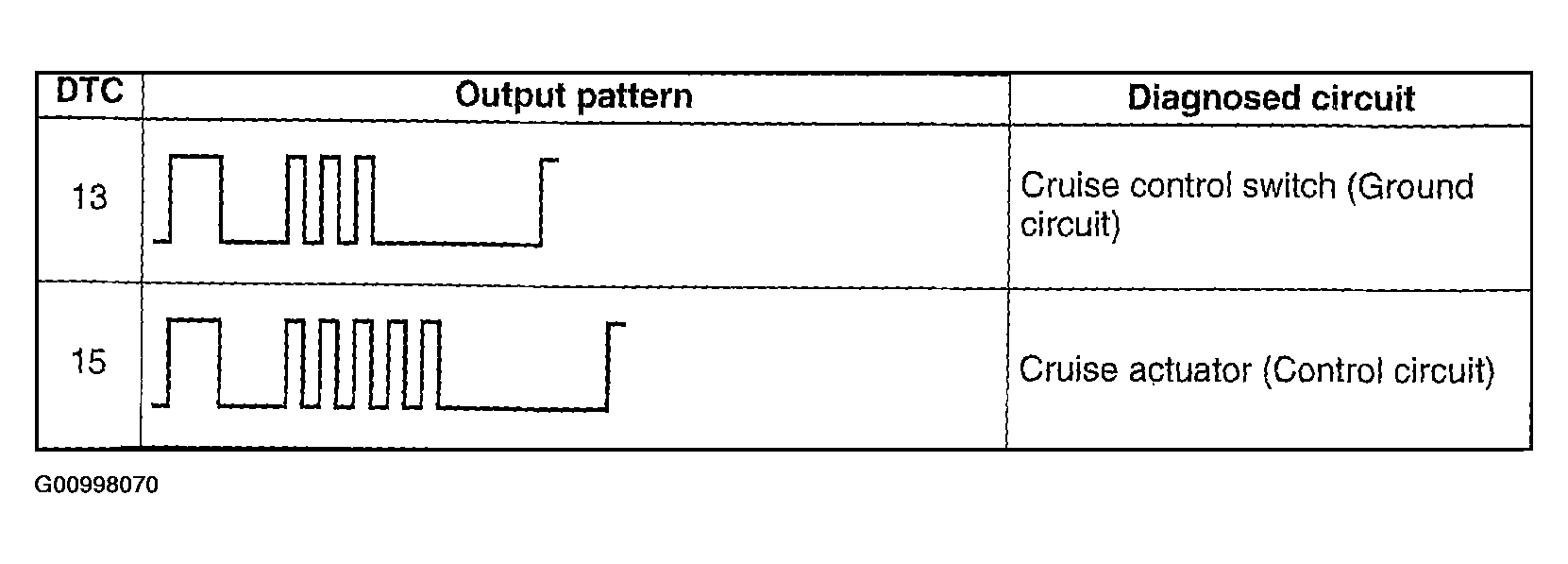

Fig 2: Condition Code List (DTC 13 & 15)
Courtesy of MAZDA MOTORS CORP.
NOTE:
When two or more DTCs are indicated, inspect the malfunction with the smallest number first.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
