Transfer Case Electronic Shift Pinpoint Test 1: Electronic Shift Functional Test

Fig 1: Transfer Case Electronic Shift Pinpoint Test 1: Electronic Shift Functional Test (Step 1)

Courtesy of MAZDA MOTORS CORP.

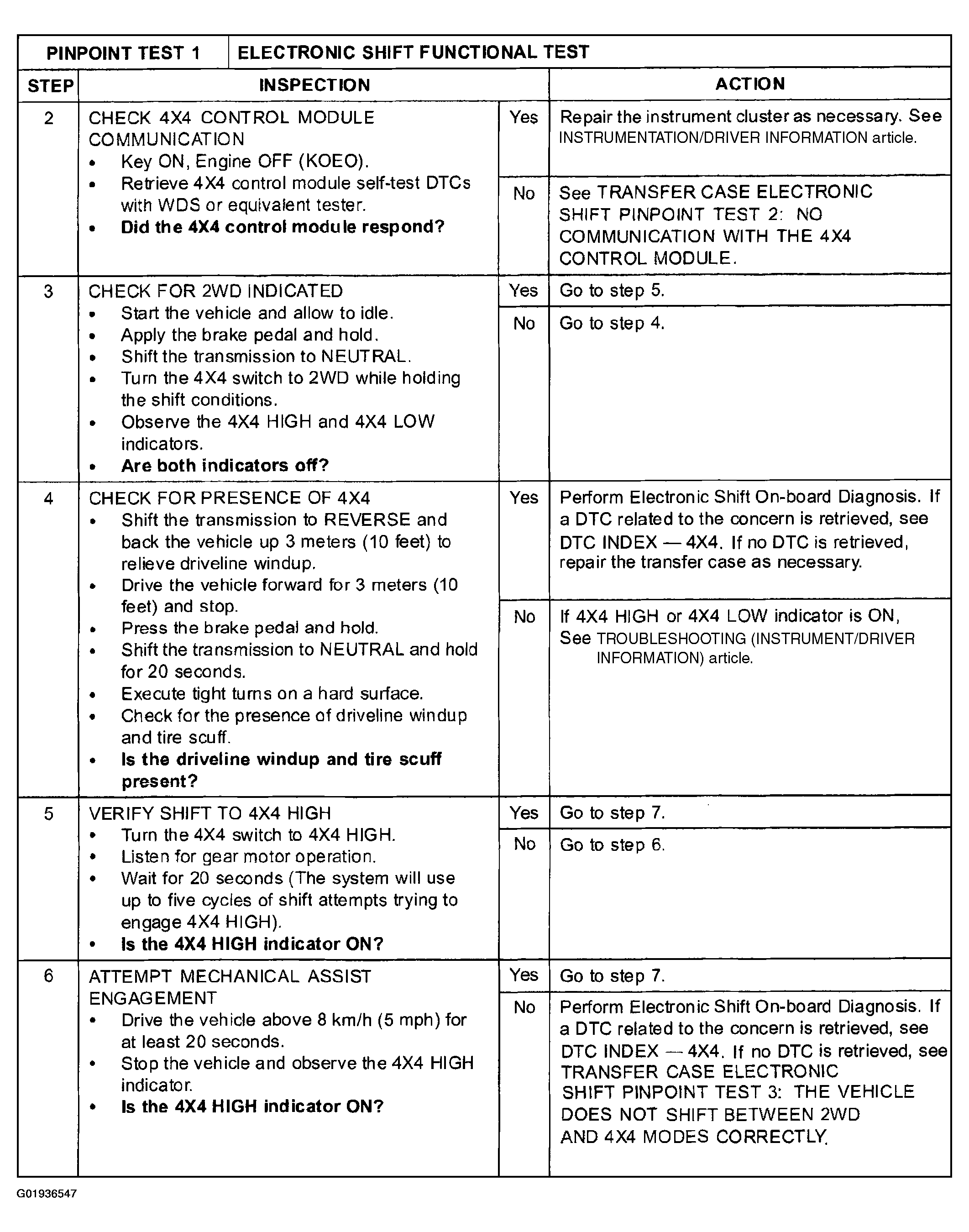

Fig 2: Transfer Case Electronic Shift Pinpoint Test 1: Electronic Shift Functional Test (Steps 2-6)

Courtesy of MAZDA MOTORS CORP.

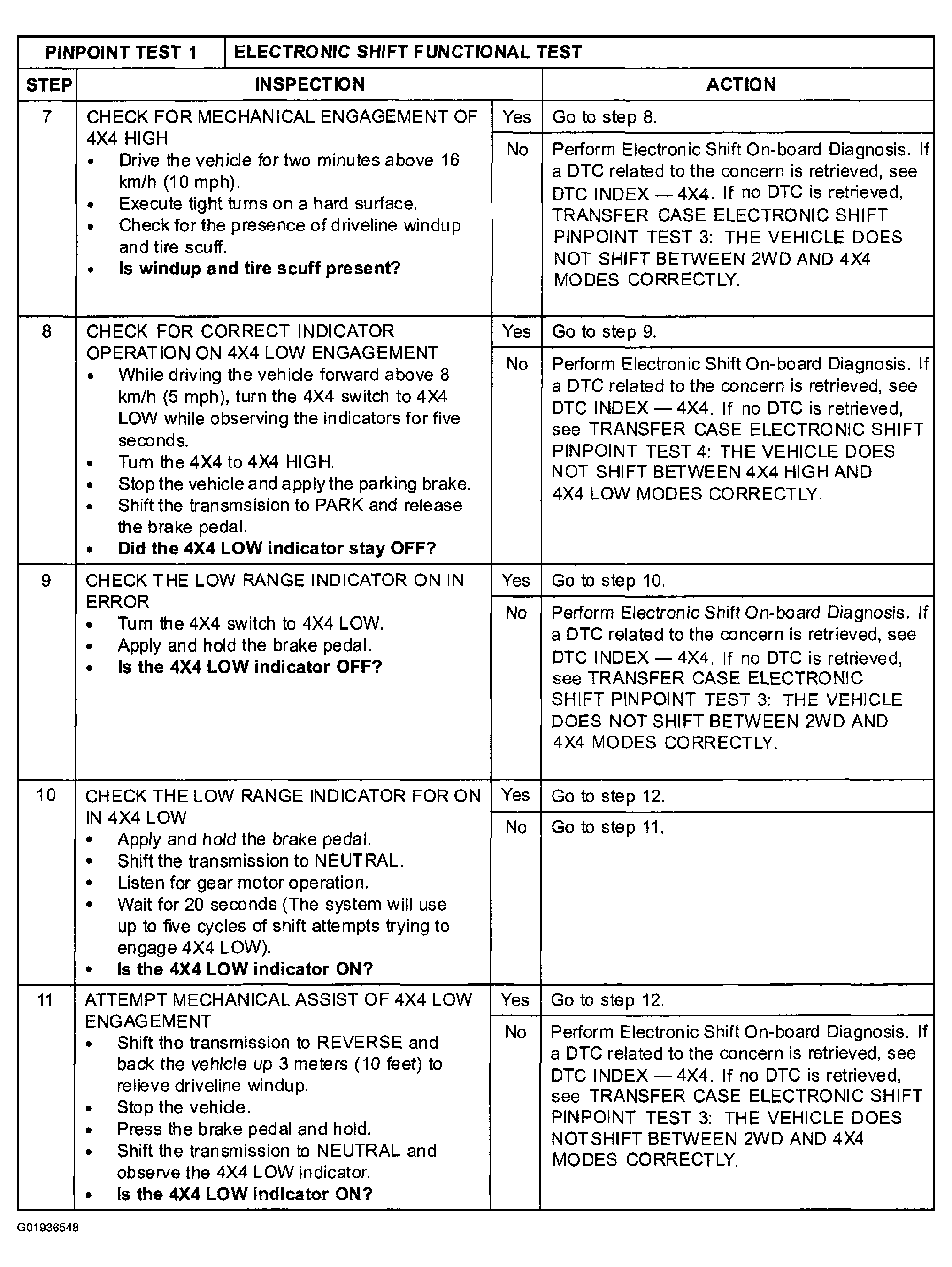

Fig 3: Transfer Case Electronic Shift Pinpoint Test 1: Electronic Shift Functional Test (Steps 7-11)

Courtesy of MAZDA MOTORS CORP.

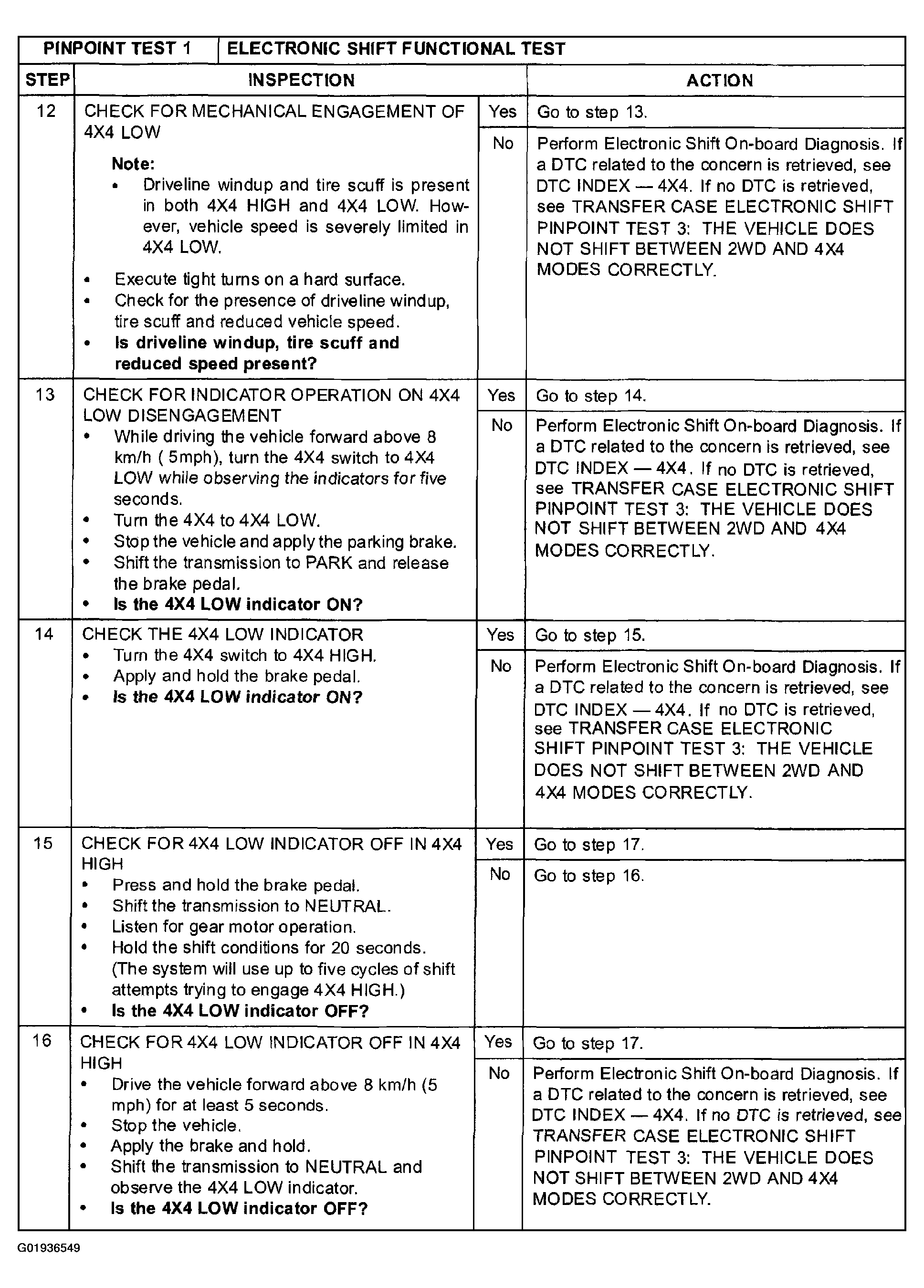

Fig 4: Transfer Case Electronic Shift Pinpoint Test 1: Electronic Shift Functional Test (Steps 12-16)

Courtesy of MAZDA MOTORS CORP.

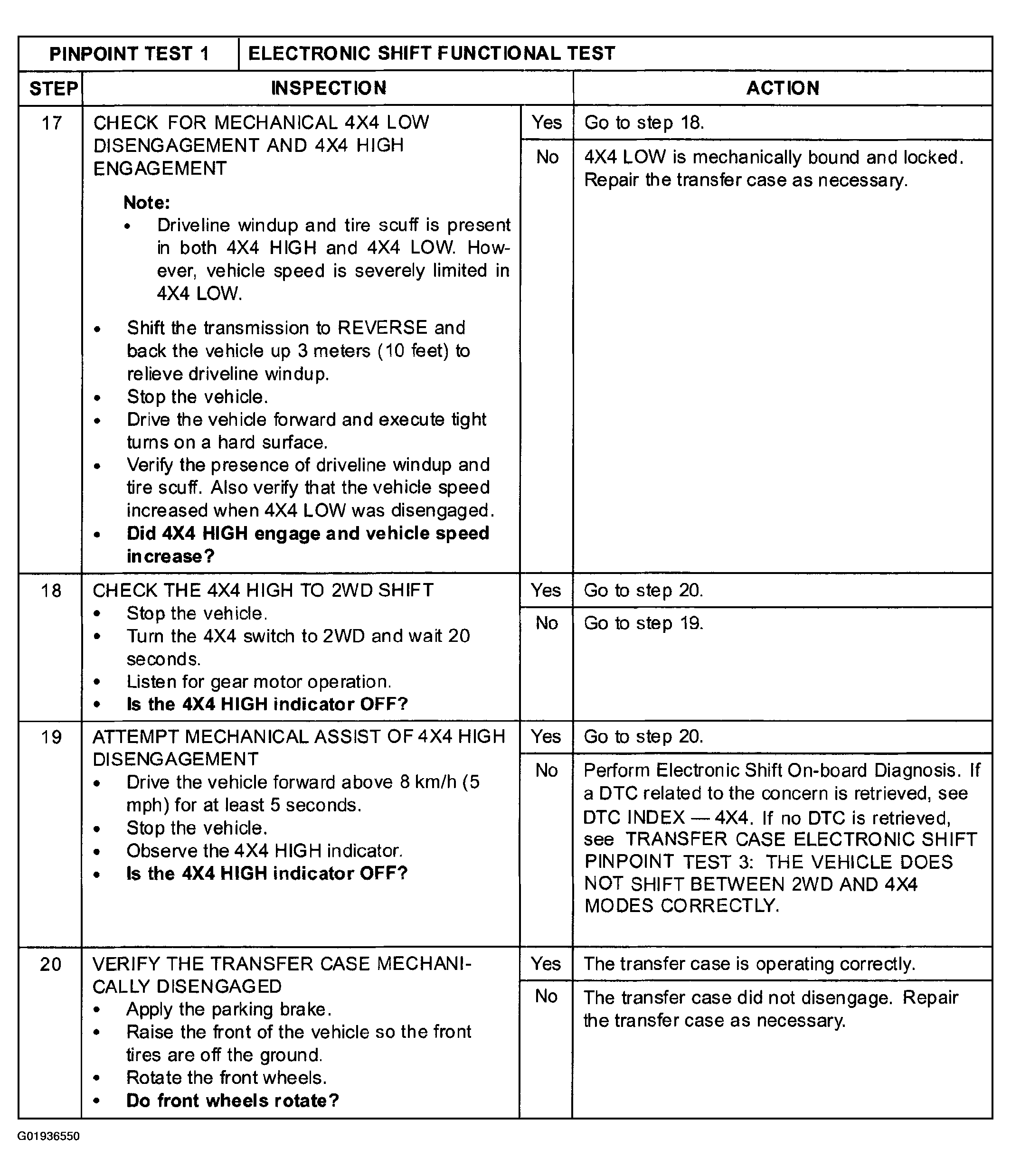

Fig 5: Transfer Case Electronic Shift Pinpoint Test 1: Electronic Shift Functional Test (Steps 17-20)

Courtesy of MAZDA MOTORS CORP.
