Automatic Transmission External Controls Pinpoint Test 2: Shift Control Is Out Of Proper Gear Relationship

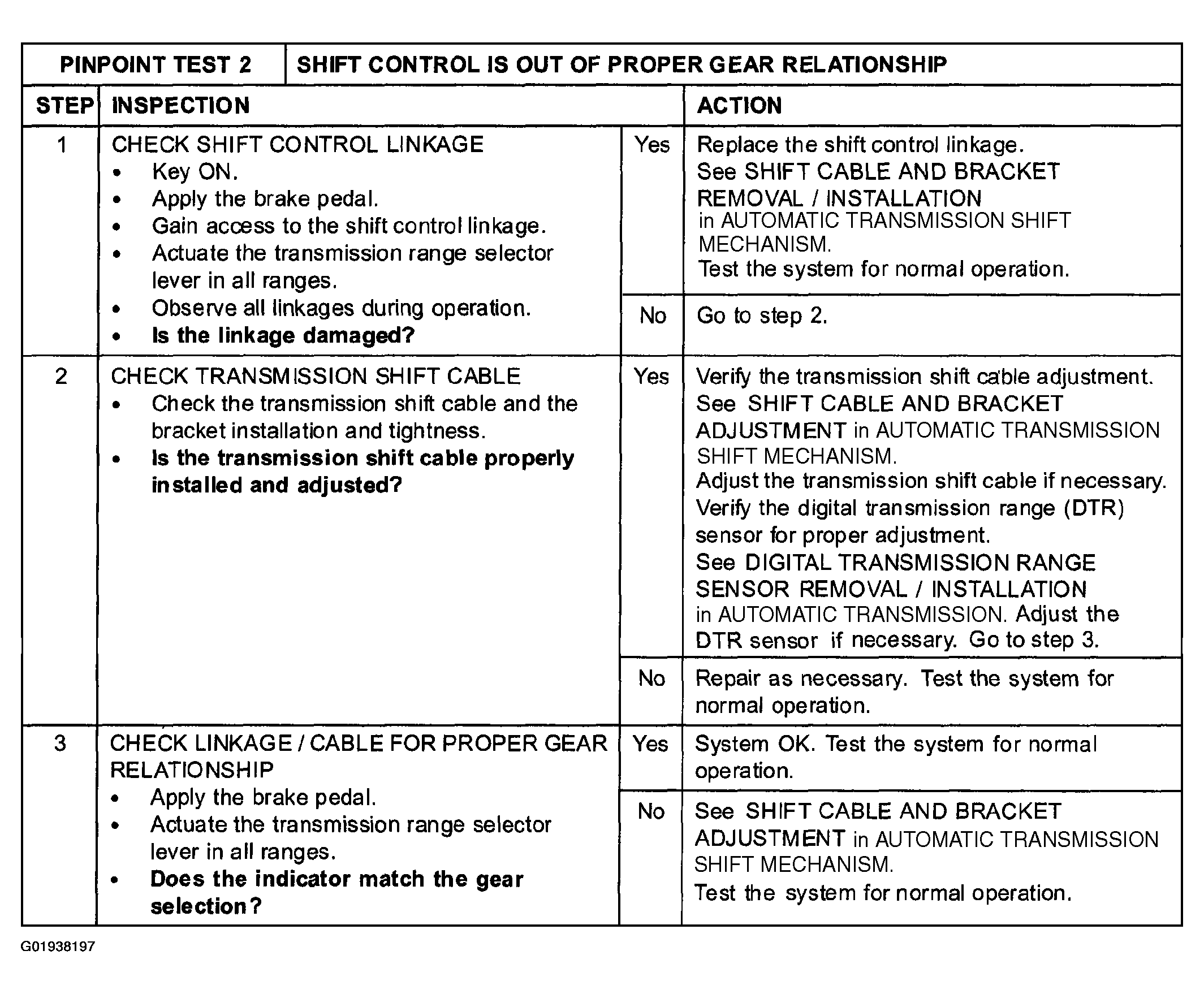

Fig 1: Automatic Transmission External Controls Pinpoint Test 2: Shift Control Is Out Of Proper Gear Relationship
G01938197Courtesy of MAZDA MOTORS CORP.
