Stall Speed Test
This test checks operation of the following items:
- Torque converter clutch
- Forward clutch
- Low one way clutch (OWC) assembly
- Engine performance
WARNING:
- Apply the parking brake firmly while performing each stall test.
CAUTION:
- Always perform Line Pressure Test procedures prior to performing the Stall Speed Test. If line pressure is low at stall, do not perform Stall Speed Test or further transmission damage will occur.
NOTE:
- The Stall Speed Test should be performed with the engine and transmission at normal operating temperatures.
- Connect tachometer to the engine.CAUTION:
- After testing each of the following ranges D, 2, 1, and R, move the transmission range selected lever to N (NEUTRAL) and run engine at 1000 RPM for about 15 seconds to allow the torque converter to cool before testing the next range.
Do not maintain wide open throttle in any range for more than five (5) seconds.
If the engine RPM recorded by the tachometer exceeds maximum specified RPM, release the accelerator pedal immediately. Clutch or band slippage is indicated.
- After testing each of the following ranges D, 2, 1, and R, move the transmission range selected lever to N (NEUTRAL) and run engine at 1000 RPM for about 15 seconds to allow the torque converter to cool before testing the next range.

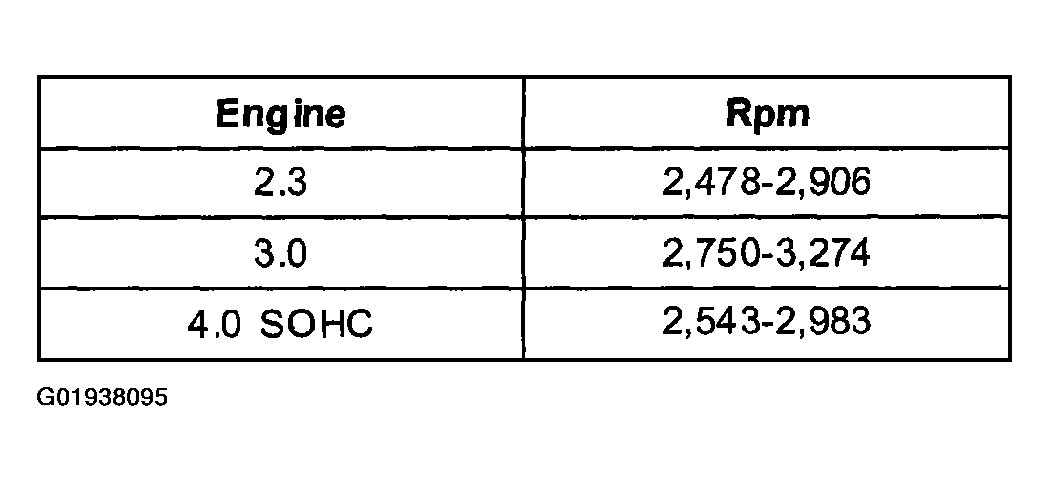

- Press accelerator pedal to floor (WOT) in each range. Record RPM reached in each range. Stall speeds should be as follows:

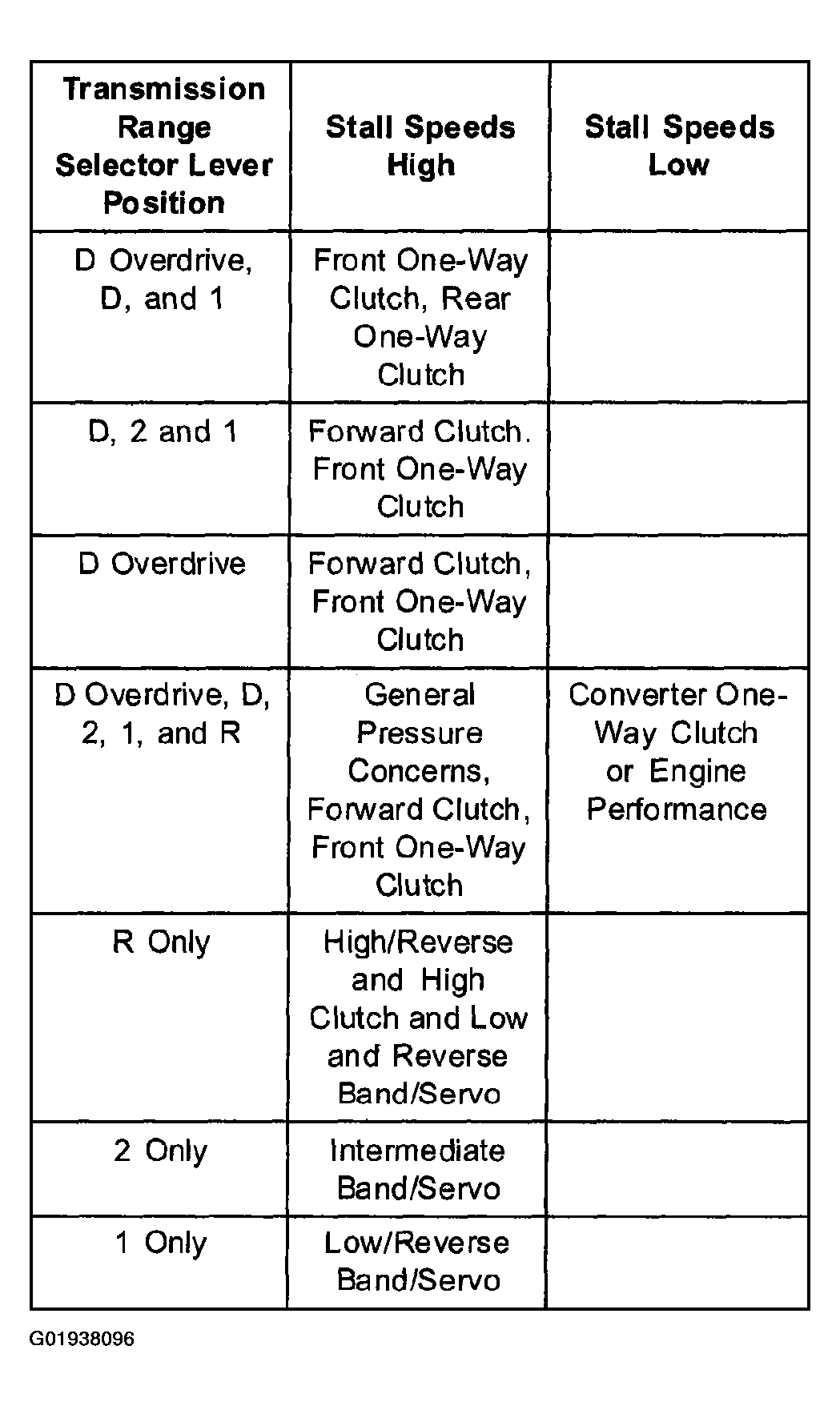

- If stall speeds were too high, See the following Stall Speed Diagnosis Chart.
- If stall speeds were too low, first check the engine idle speed.
- If engine idle is OK, remove torque converter and check the torque converter clutch for slippage.
NOTE:- Prolonged use of this procedure may set Diagnostic Trouble Code P0712, P1783. After performing the Stall Speed Test, run the OBD Test; see ON-BOARD DIAGNOSTIC TESTS . Clear all DTCs from memory.
