Disconnecting Connectors
When disconnecting two connectors, grasp the connectors, not the wires.

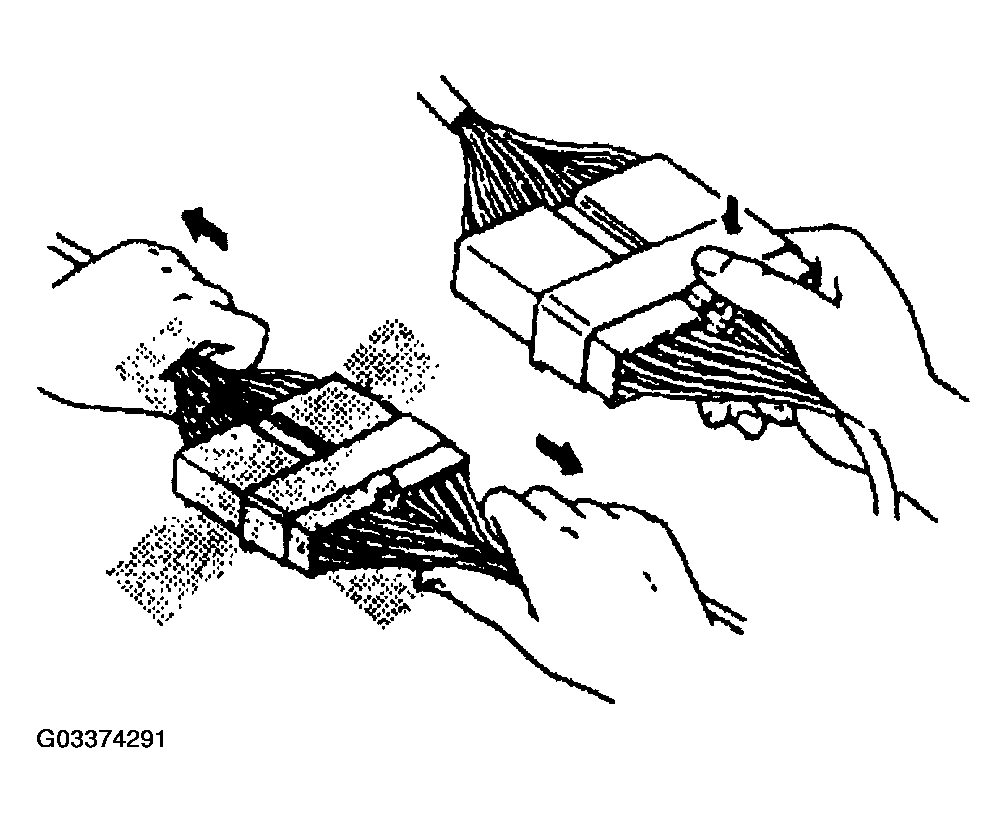

Fig 1: Disconnecting Connectors
Courtesy of MAZDA MOTORS CORP.
Connectors can be disconnected by pressing or pulling the lock lever as shown.
Fig 2: Pulling Lock Lever
Courtesy of MAZDA MOTORS CORP.
