Trunk Lid Striker Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  2. Remove the bolts, then remove the trunk lid striker.
  3. Install in the reverse order of removal.

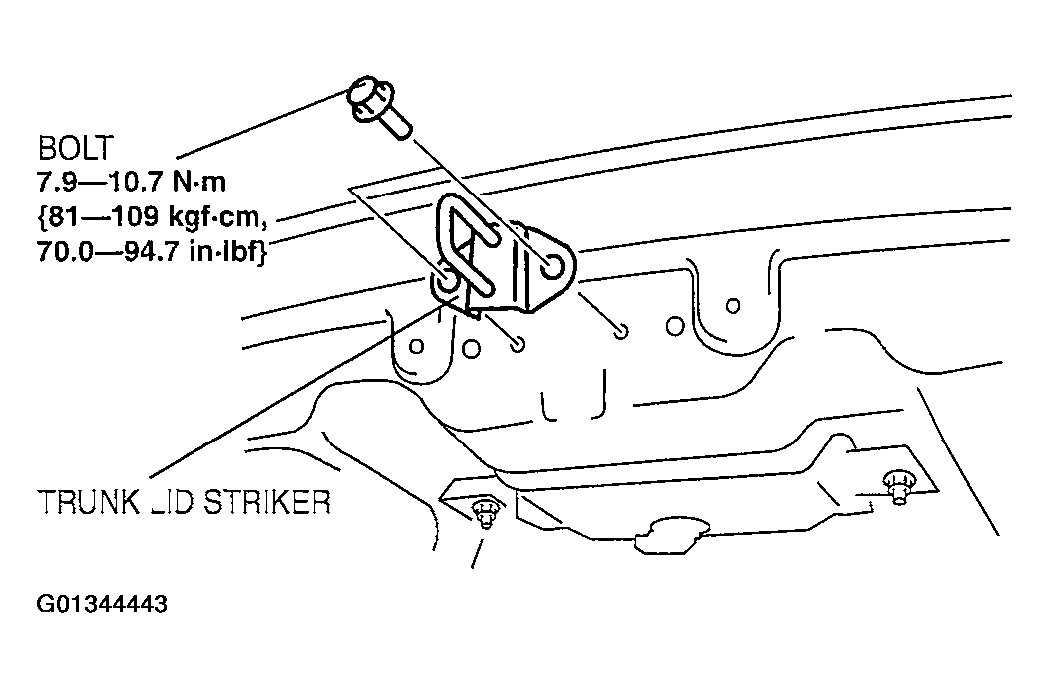

    Fig 1: Removing/Installing Trunk Lid Striker
    G01344443Courtesy of MAZDA MOTORS CORP.
