Rear Door Upper Latch Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door lower trim. (See REAR DOOR LOWER TRIM REMOVAL/INSTALLATION .)
  2. Remove the rear door upper trim. (See REAR DOOR UPPER TRIM REMOVAL/INSTALLATION .)
  3. Remove clips A and B, and disconnect the rear door upper latch switch connector.
  4. Remove the rear door upper latch cable from the release handle.

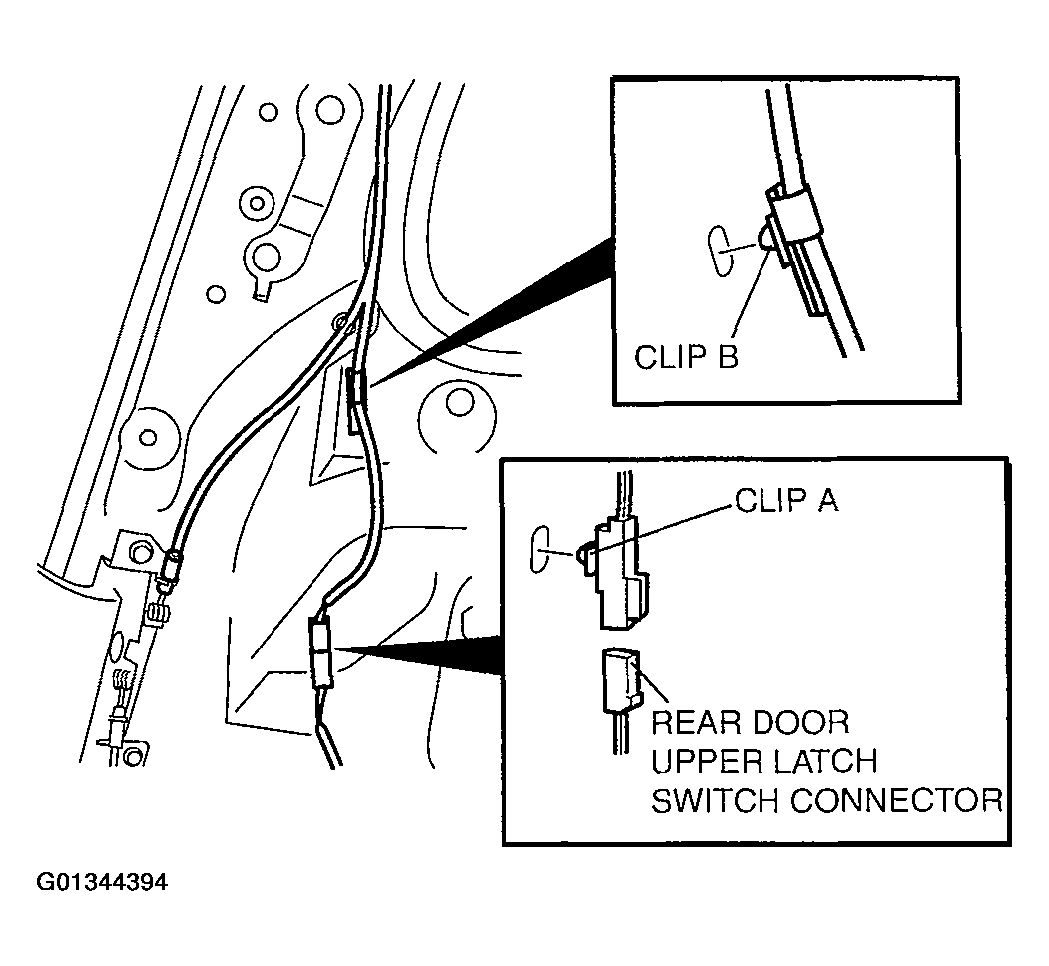

    Fig 1: Removing/Installing Rear Door Upper Latch
    G01344394Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolts, then remove the rear door upper latch.
  6. Install in the reverse order of removal.

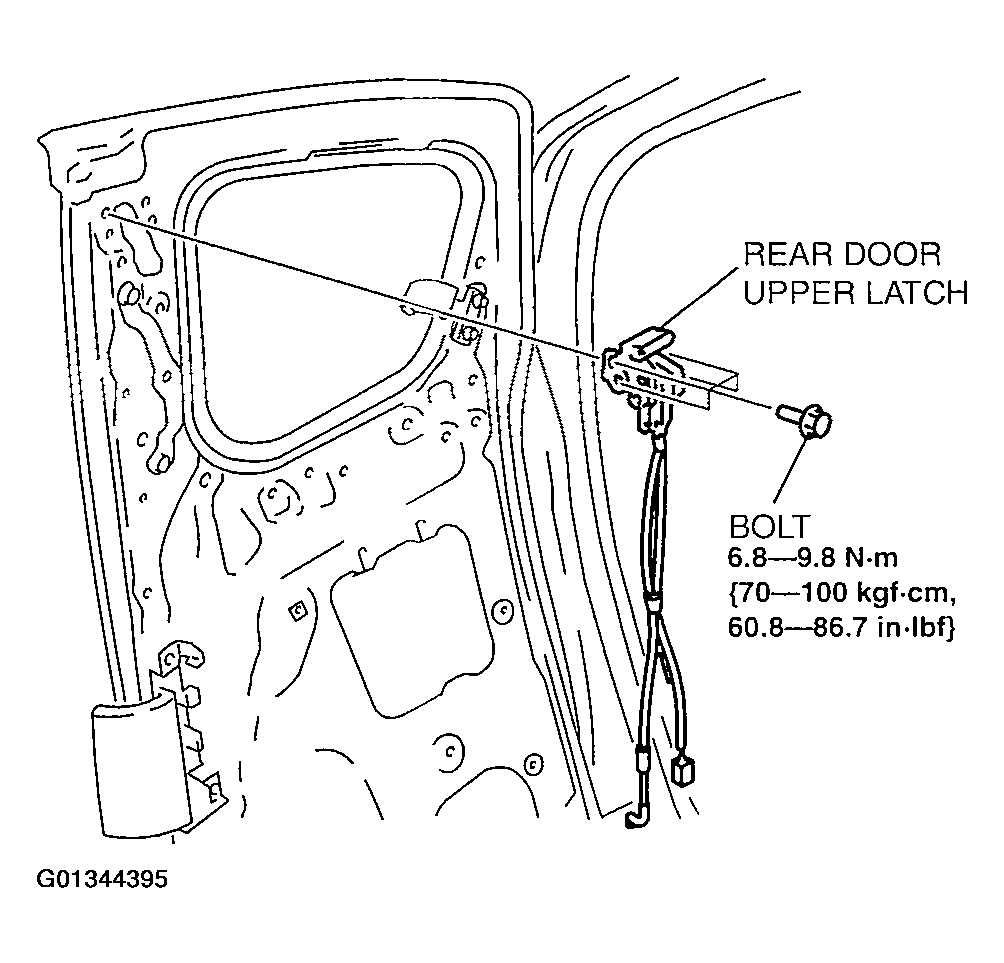

    Fig 2: Removing Rear Door Upper Latch
    G01344395Courtesy of MAZDA MOTORS CORP.
