Rear Door Lower Latch Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the continuity is as indicated in Fig 1.
- If not as indicated, replace the rear door lower latch.

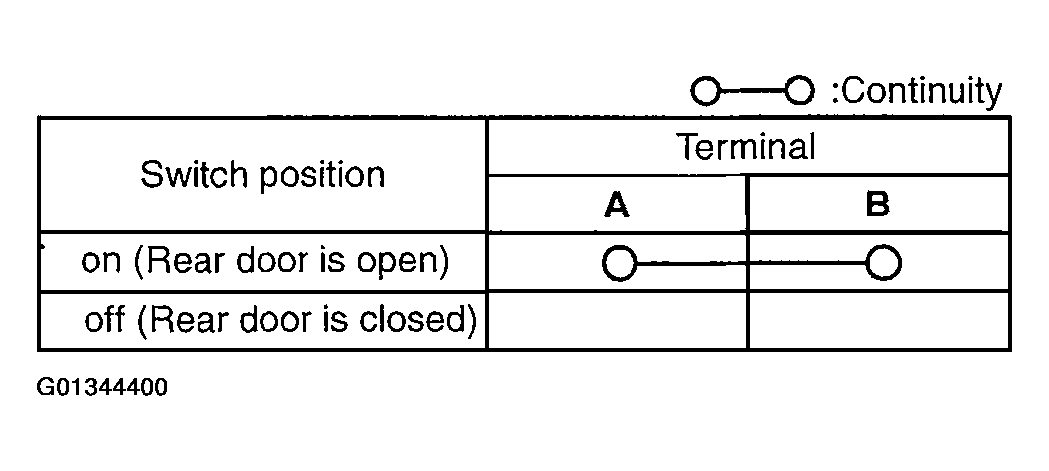

Fig 1: Rear Door Lower Latch Switch Connector Terminal Continuity
Courtesy of MAZDA MOTORS CORP.

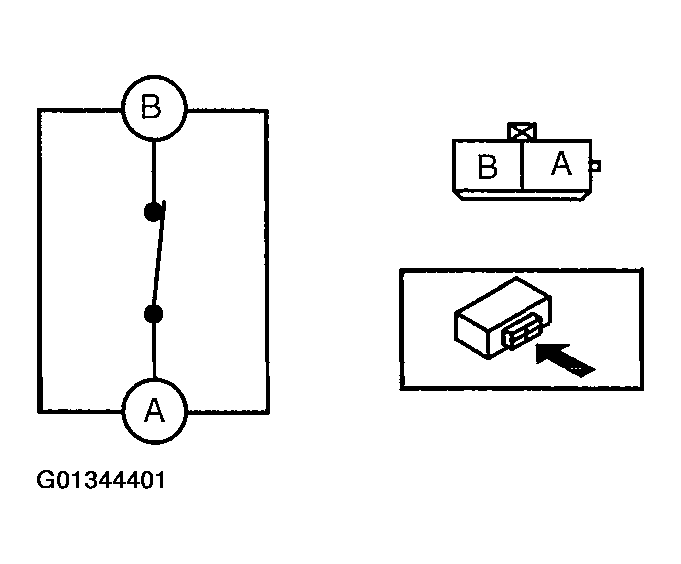

Fig 2: Inspecting Rear Door Lower Latch Switch
Courtesy of MAZDA MOTORS CORP.
