Rear Door Lock Striker Removal/Installation: Upper

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    2. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    3. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    4. Roof side trim (See ROOF SIDE TRIM REMOVAL/INSTALLATION .)
    5. Inner scuff plate (See INNER SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Rear seat (See REAR SEAT REMOVAL/INSTALLATION .)
    7. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    8. Rear pillar trim (See REAR PILLAR TRIM REMOVAL/INSTALLATION .)
    9. Interior light (See INTERIOR LIGHT REMOVAL/INSTALLATION .)
    10. Map light (See MAP LIGHT REMOVAL/INSTALLATION .)
    11. Headliner (See HEADLINER REMOVAL/INSTALLATION .)
  2. Remove the bolts A from the curtain air bag module.
    Fig 1: Removing Bolts From Curtain Air Bag Module
    G01344403Courtesy of MAZDA MOTORS CORP.
  3. Remove the bolt, then remove the bracket.

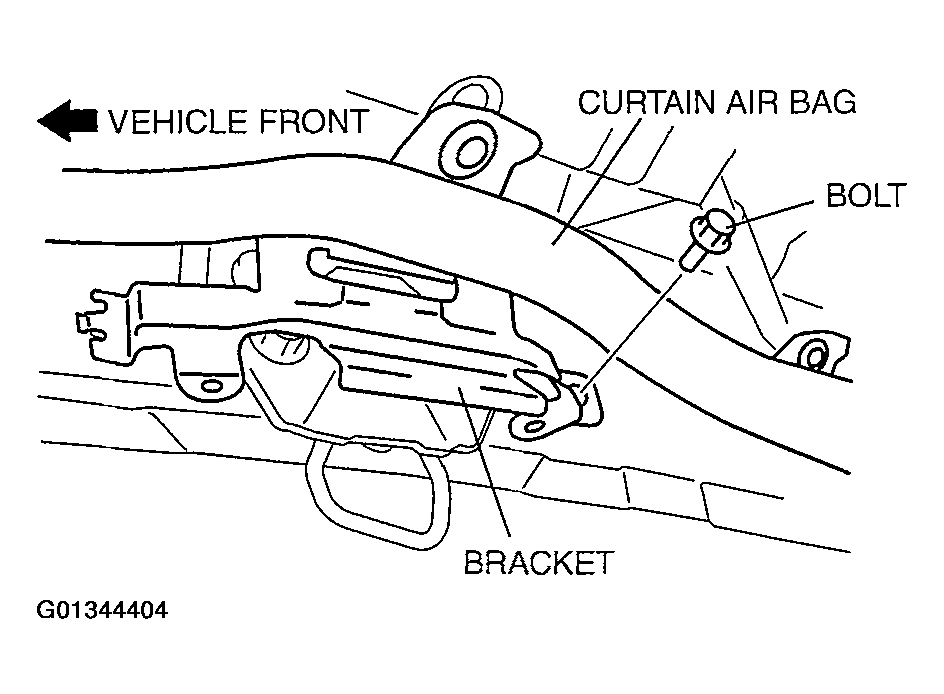

    Fig 2: Removing Bracket
    G01344404Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts, then remove the rear door lock striker (upper).

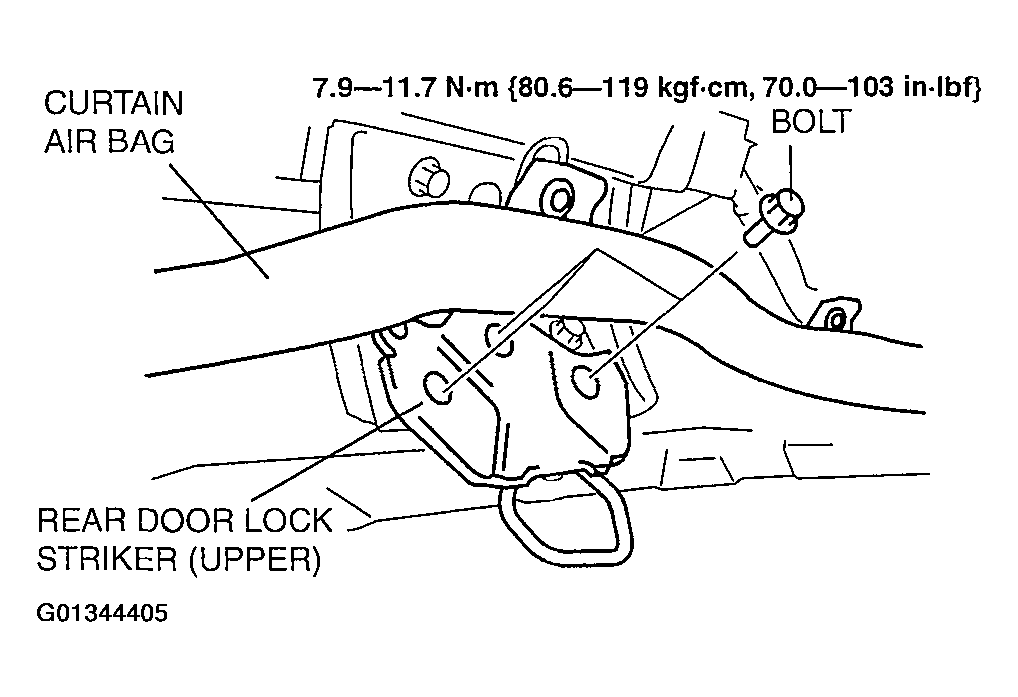

    Fig 3: Removing Rear Door Lock Striker (Upper)
    G01344405Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
  6. Adjust the door. (See DOOR ADJUSTMENT .)
