Hood Release Lever Removal Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the lever.
  2. While pushing the tab in the direction of the arrow using a tape-wrapped, small flathead screwdriver, detach it from the dashboard.
    CAUTION:
    • Remove the hood release lever while taking care not to damage the hood release cable with the flathead screwdriver.

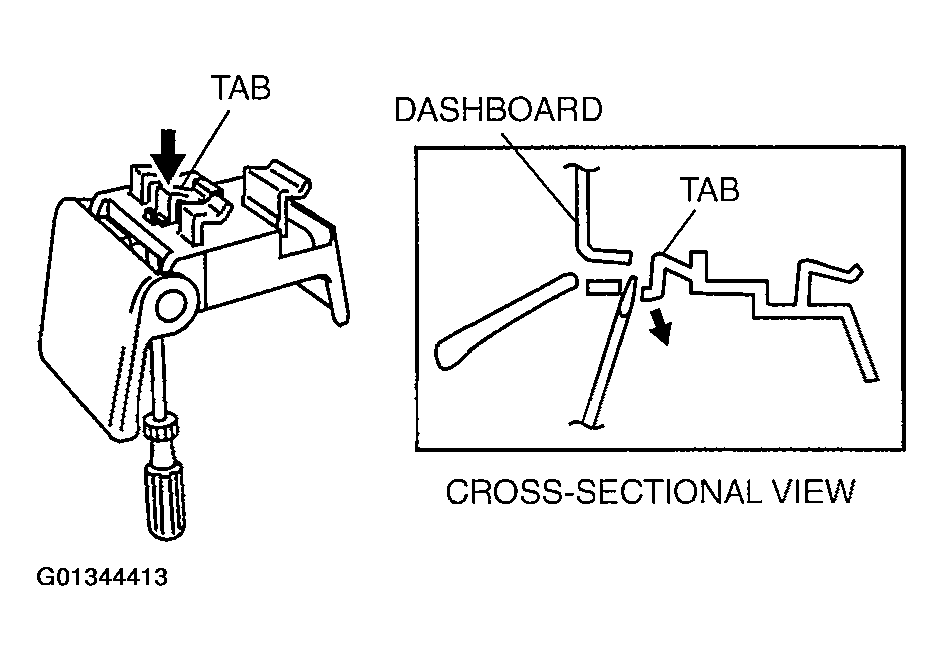

    Fig 1: Removing Hood Release Lever
    G01344413Courtesy of MAZDA MOTORS CORP.
  3. Under the condition in Step  2, pull the hood release lever outward, then remove it from the dashboard.
