Front Door Lock Striker Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws, and then remove the front door lock striker.

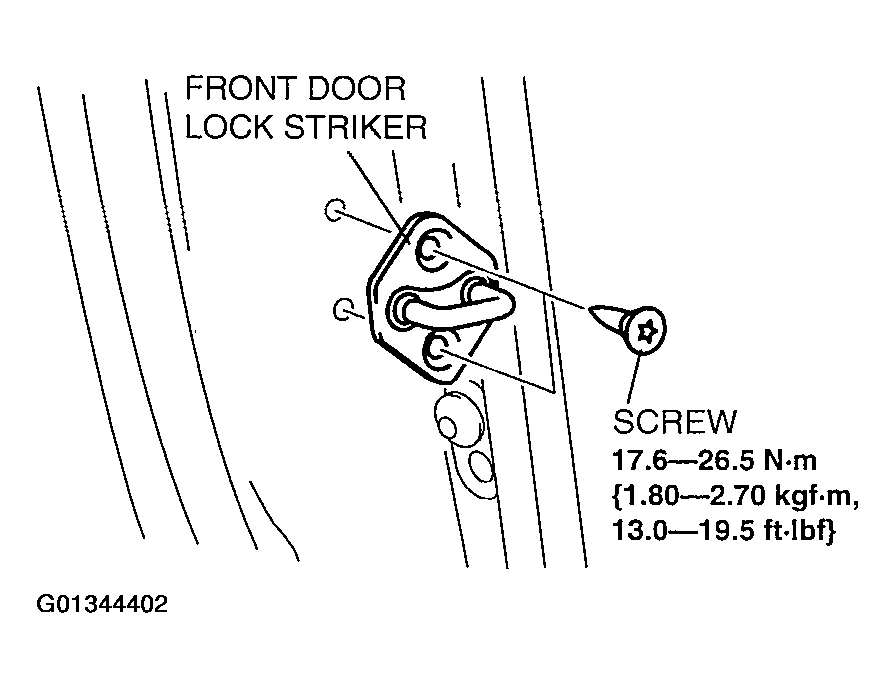

    Fig 1: Removing/Installing Front Door Lock Striker
    G01344402Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
  3. Adjust the door. (See DOOR ADJUSTMENT .)
