Door Lock-Link Switch

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the front door lock actuator connector.
  2. Inspect for continuity between the door lock-link switch terminals.
    • If not as specified, replace the front door lock actuator.

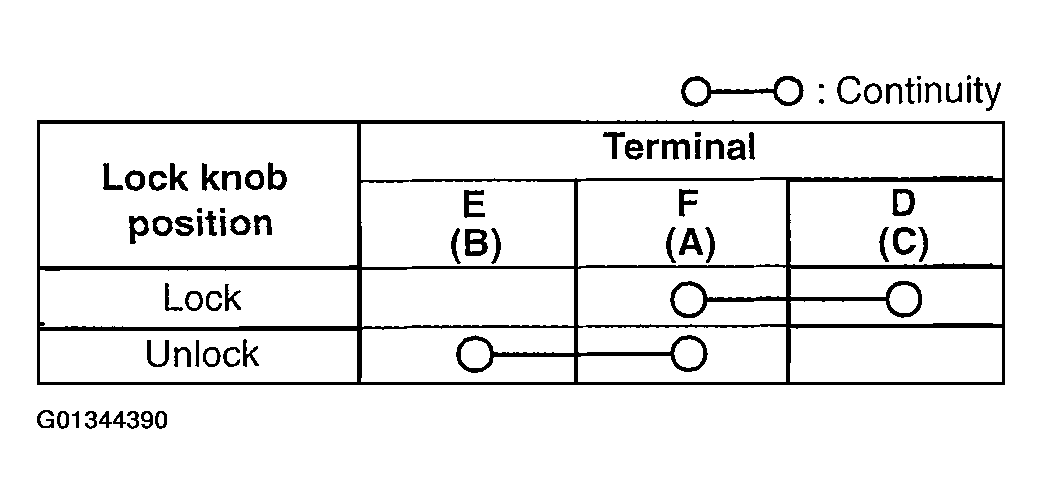

    Fig 1: Door Lock-Link Switch Connector Terminal Continuity
    G01344390Courtesy of MAZDA MOTORS CORP.

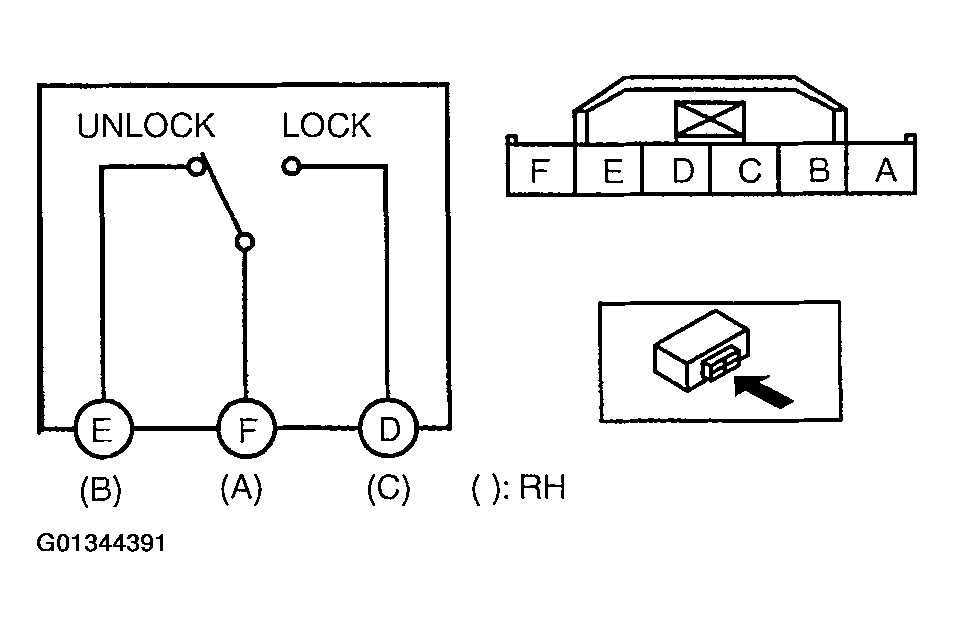

    Fig 2: Inspecting Door Lock-link Switch
    G01344391Courtesy of MAZDA MOTORS CORP.
