Charging System Pinpoint Test 7: Generator Is Noisy
Charging System Pinpoint Test 7: Generator Is Noisy

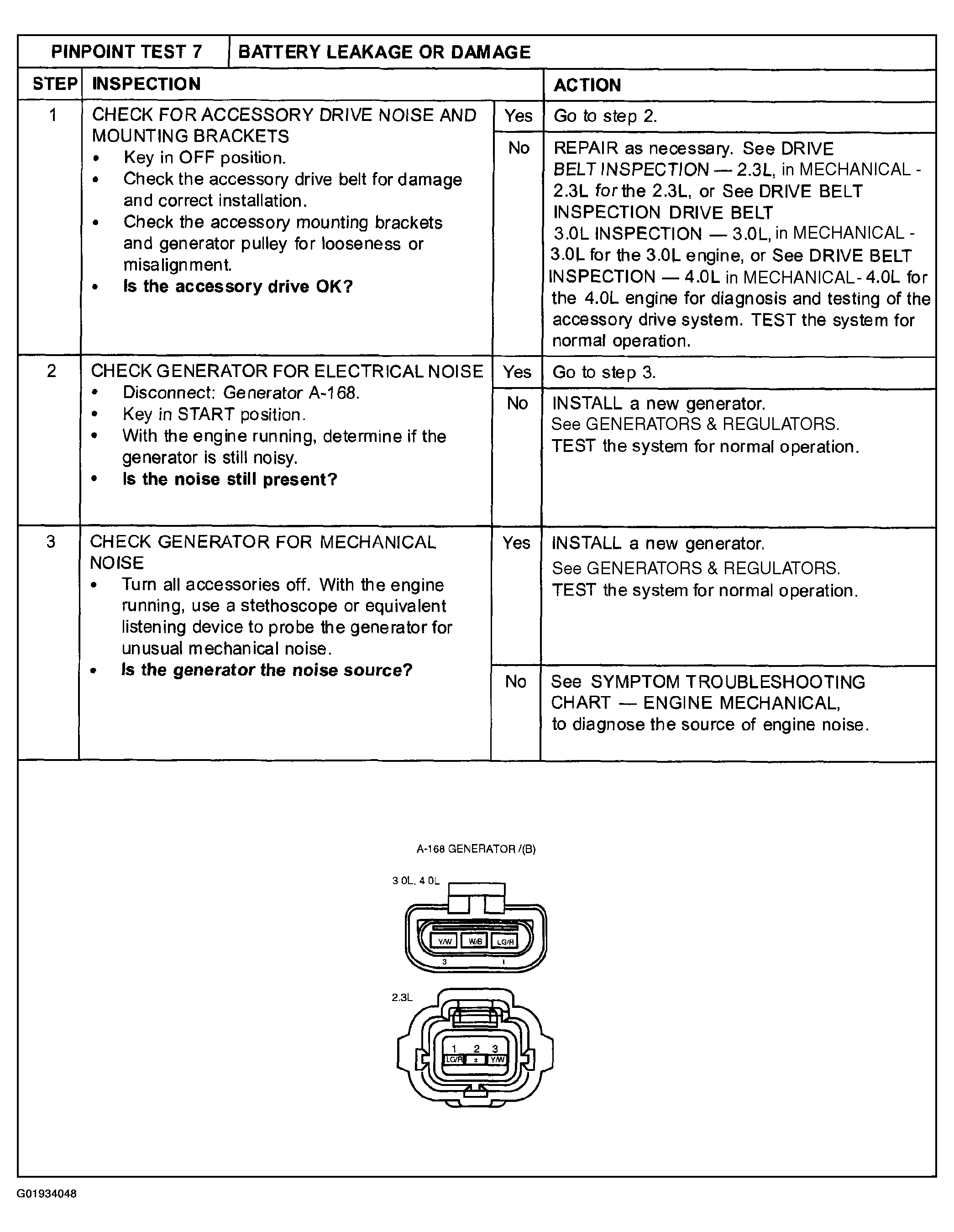

Fig 1: Charging System Pinpoint Test 7: Generator Noisy
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
