Poor Fuel Economy

Fig 1: Pinpoint Test 11 - Poor Fuel Economy Description
G01933947Courtesy of MAZDA MOTORS CORP.

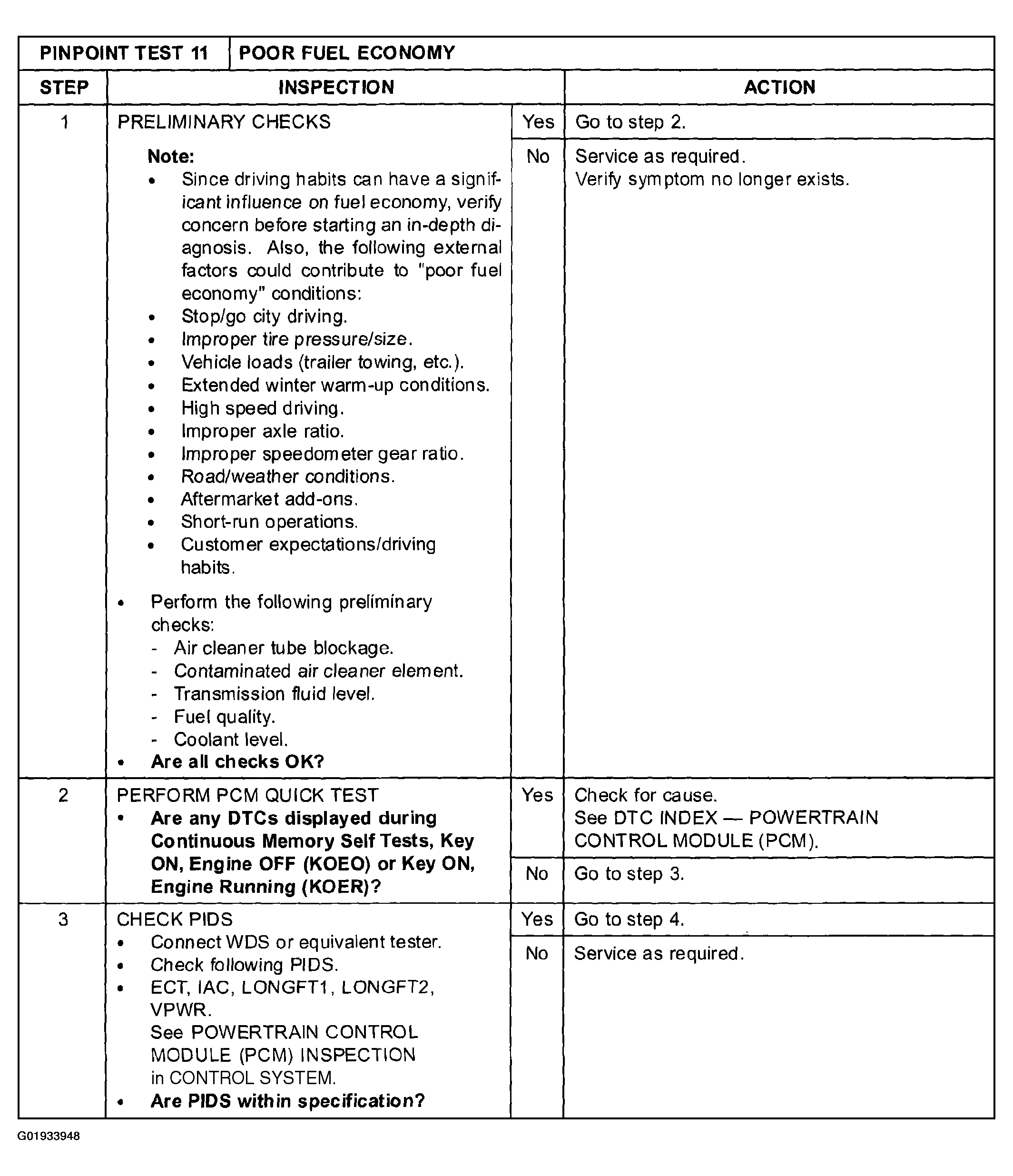

Fig 2: Pinpoint Test 11 - Poor Fuel Economy (Steps 1-3)
G01933948Courtesy of MAZDA MOTORS CORP.

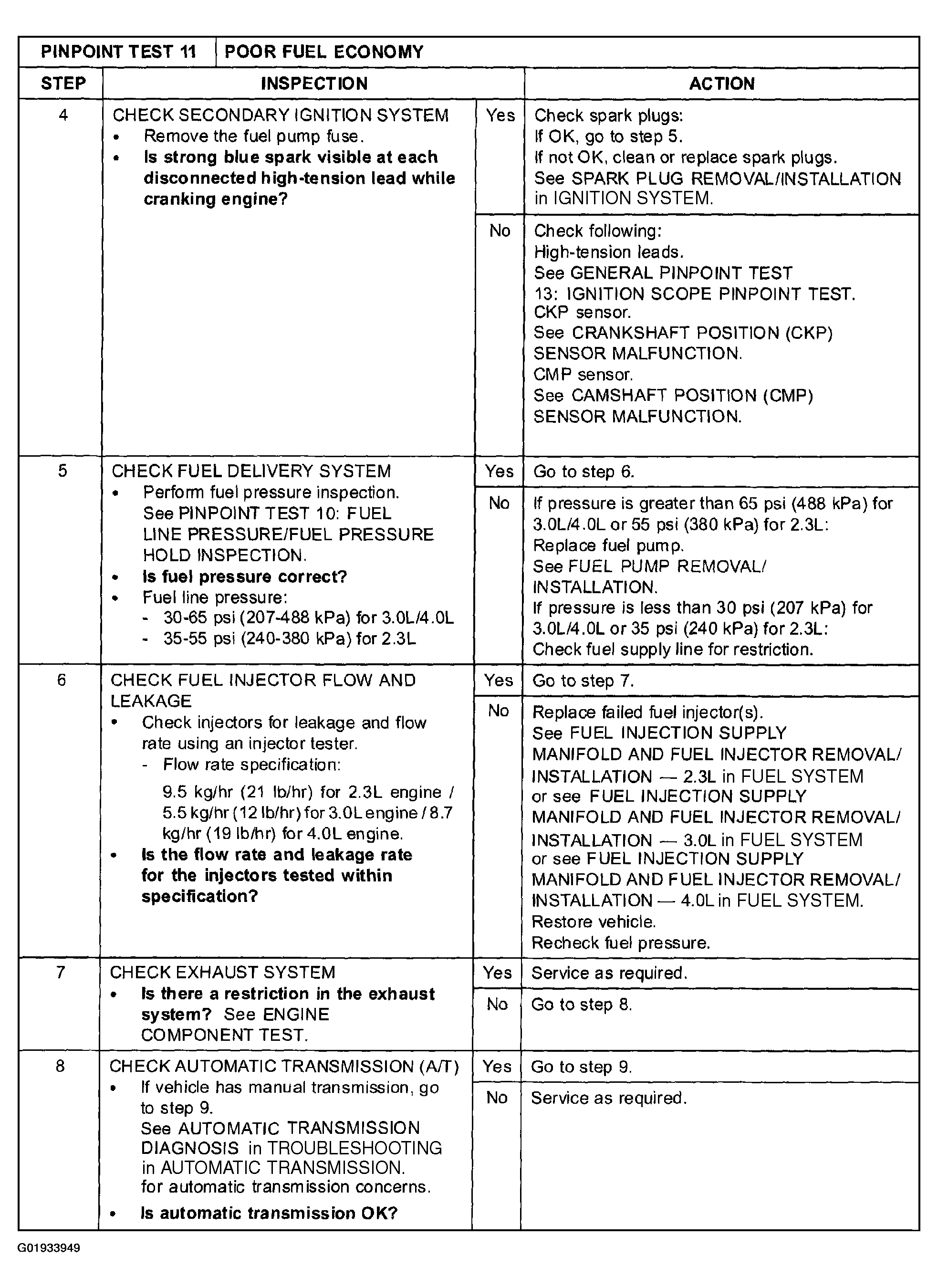

Fig 3: Pinpoint Test 11 - Poor Fuel Economy (Steps 4-8)
G01933949Courtesy of MAZDA MOTORS CORP.

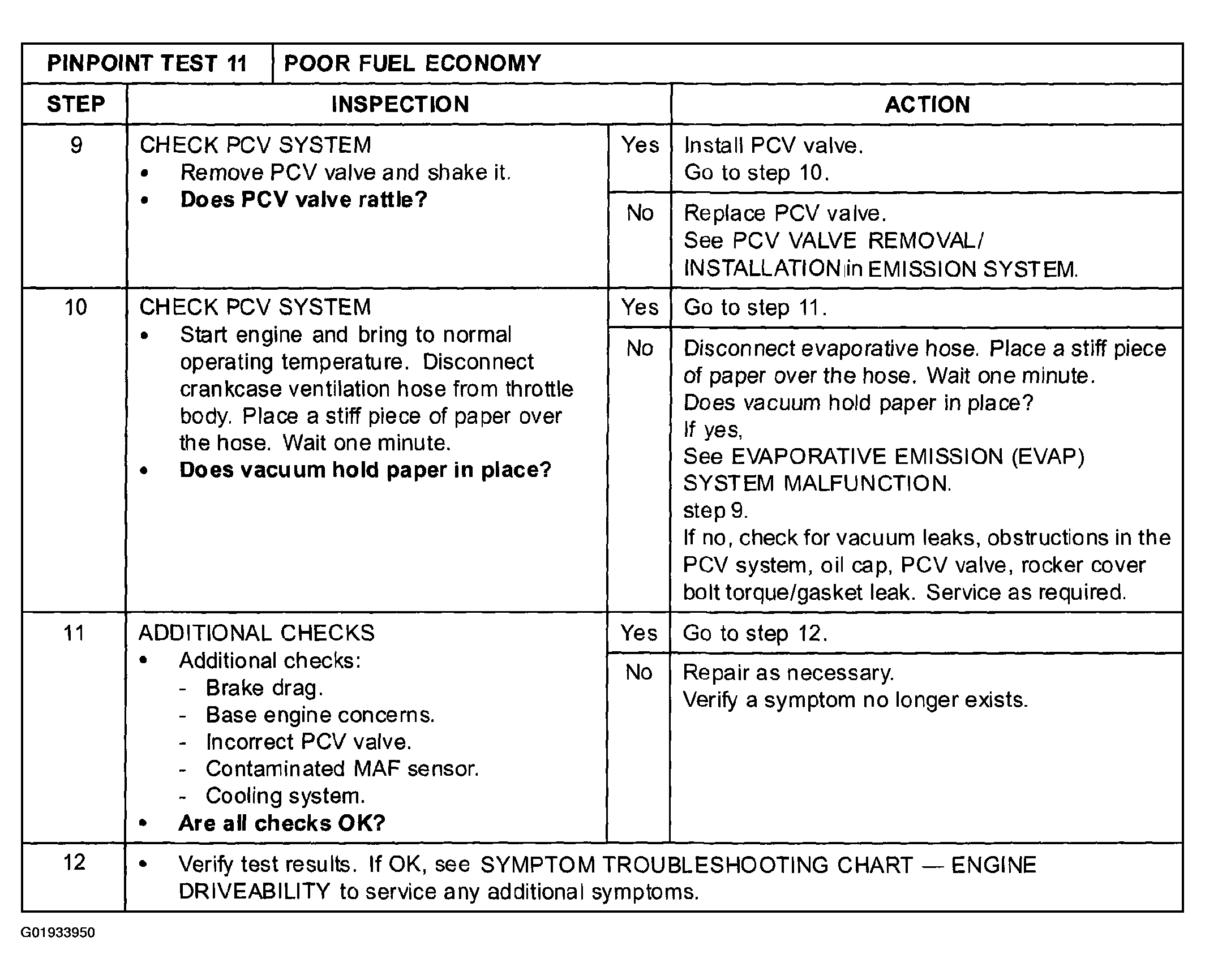

Fig 4: Pinpoint Test 11 - Poor Fuel Economy (Steps 9-12)
G01933950Courtesy of MAZDA MOTORS CORP.
