Symptom Troubleshooting Chart Engine DRIVEABILITY: Instrumentation

Fig 1: Pinpoint Test 15 - Instrumentation Description

Courtesy of MAZDA MOTORS CORP.

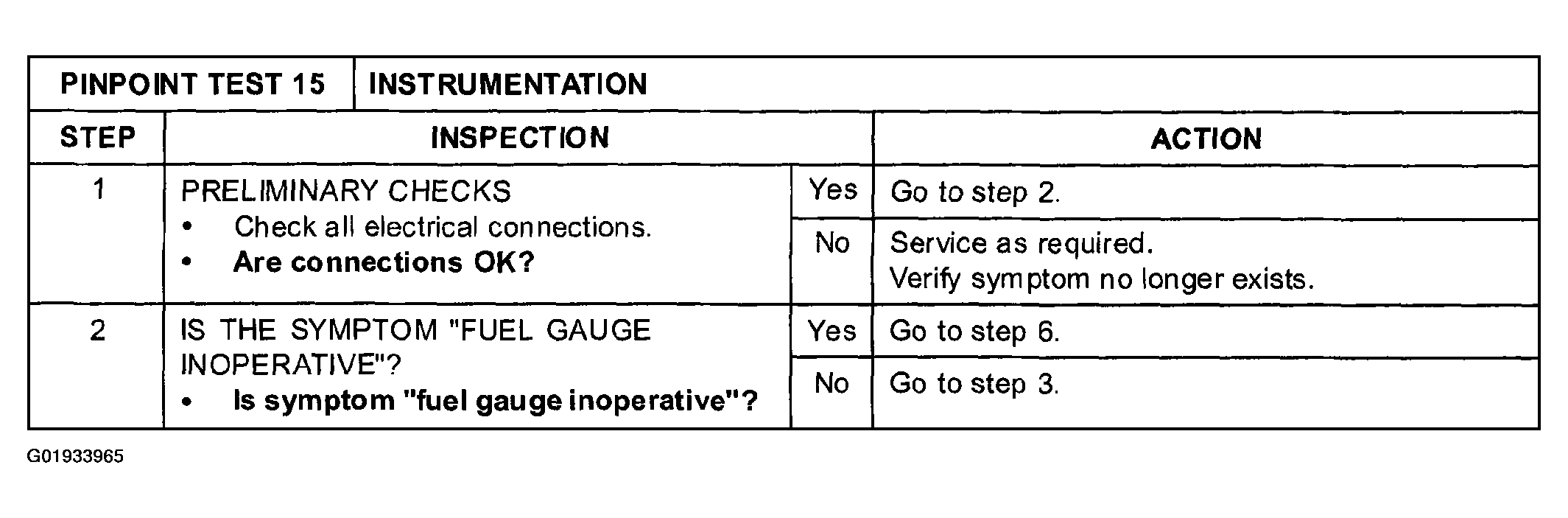

Fig 2: Pinpoint Test 15 - Instrumentation (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

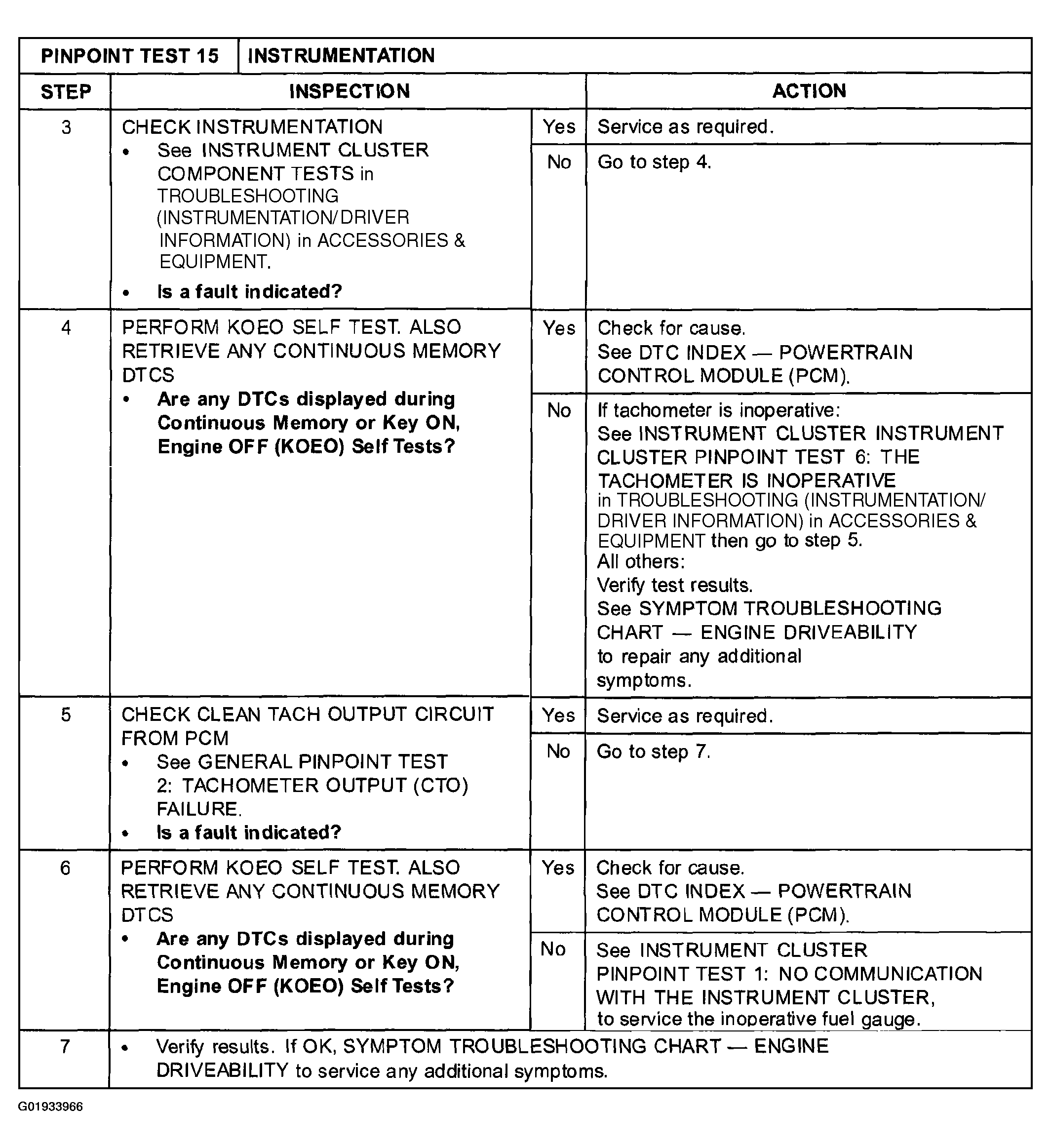

Fig 3: Pinpoint Test 15 - Instrumentation (Steps 3-7)

Courtesy of MAZDA MOTORS CORP.
