Fuel Odor In Engine Compartment

Fig 1: Pinpoint Test 17 - Fuel Odor In Engine Compartment Description
G01933971Courtesy of MAZDA MOTORS CORP.

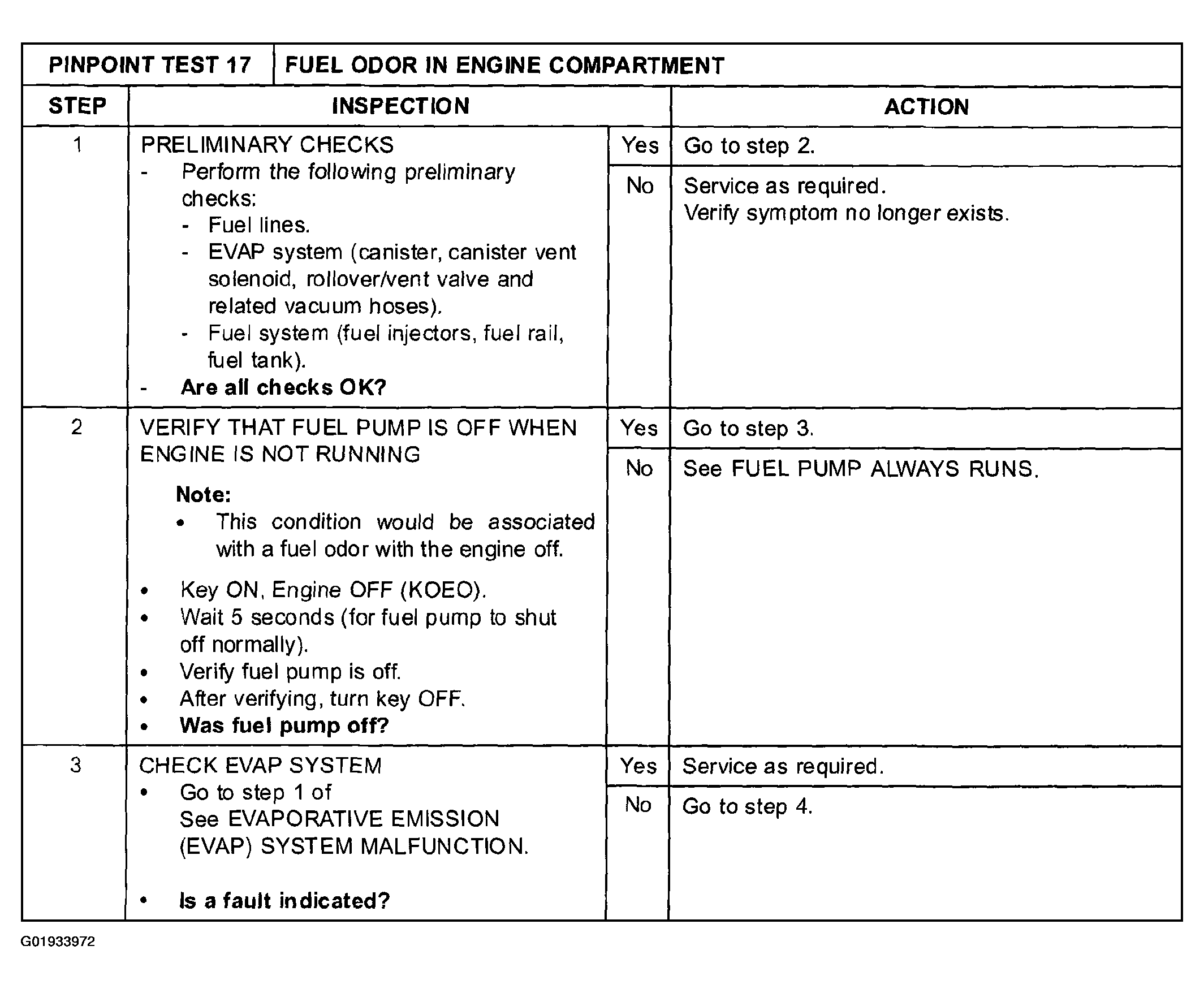

Fig 2: Pinpoint Test 17 - Fuel Odor In Engine Compartment (Steps 1-3)
G01933972Courtesy of MAZDA MOTORS CORP.

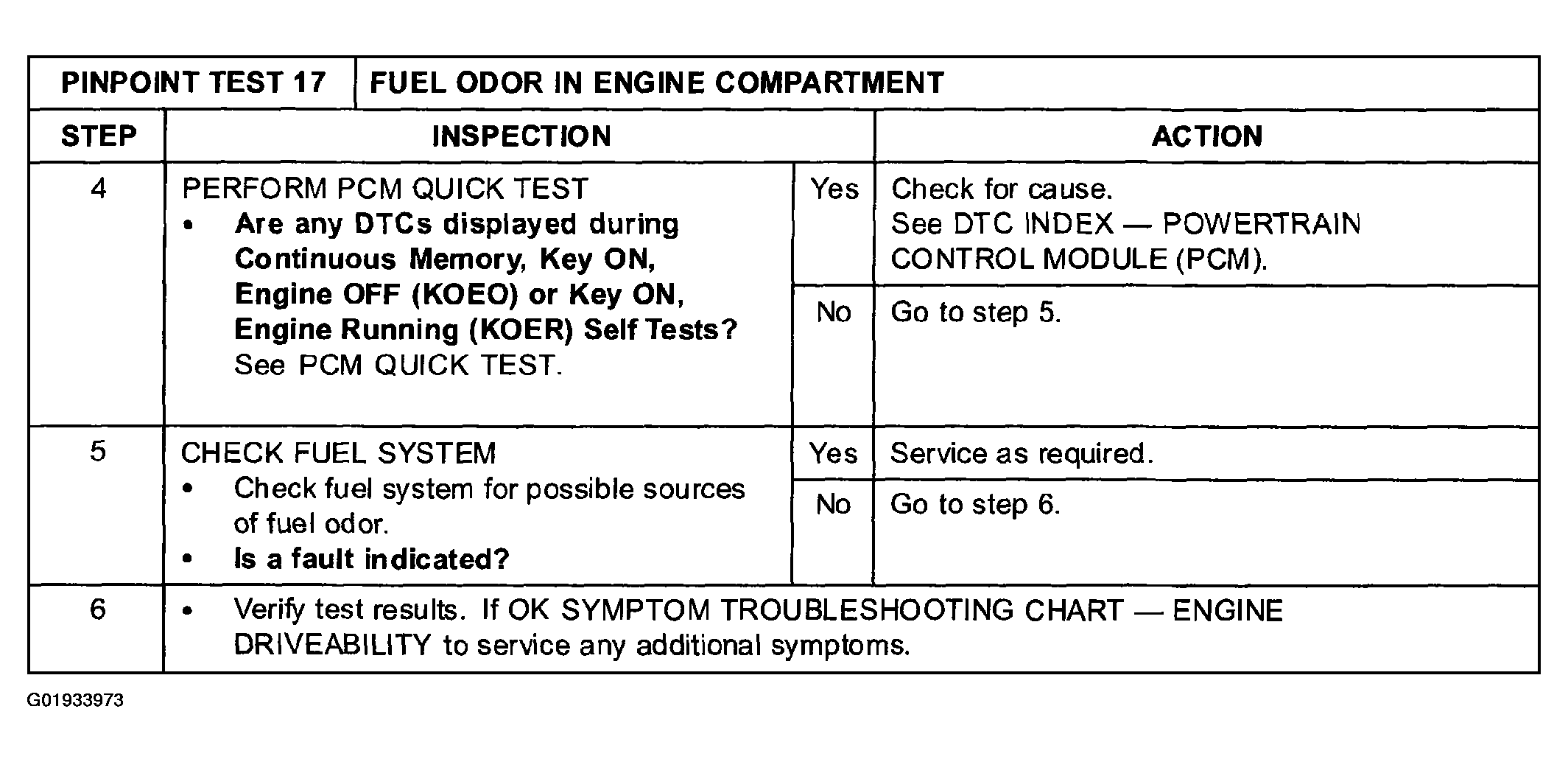

Fig 3: Pinpoint Test 17 - Fuel Odor In Engine Compartment (Steps 4-6)
G01933973Courtesy of MAZDA MOTORS CORP.
