Symptom Troubleshooting Chart Engine DRIVEABILITY
>>
Fast Idle
Fast Idle
Fig 1: Pinpoint Test 5 - Fast Idle Description
Courtesy of MAZDA MOTORS CORP.

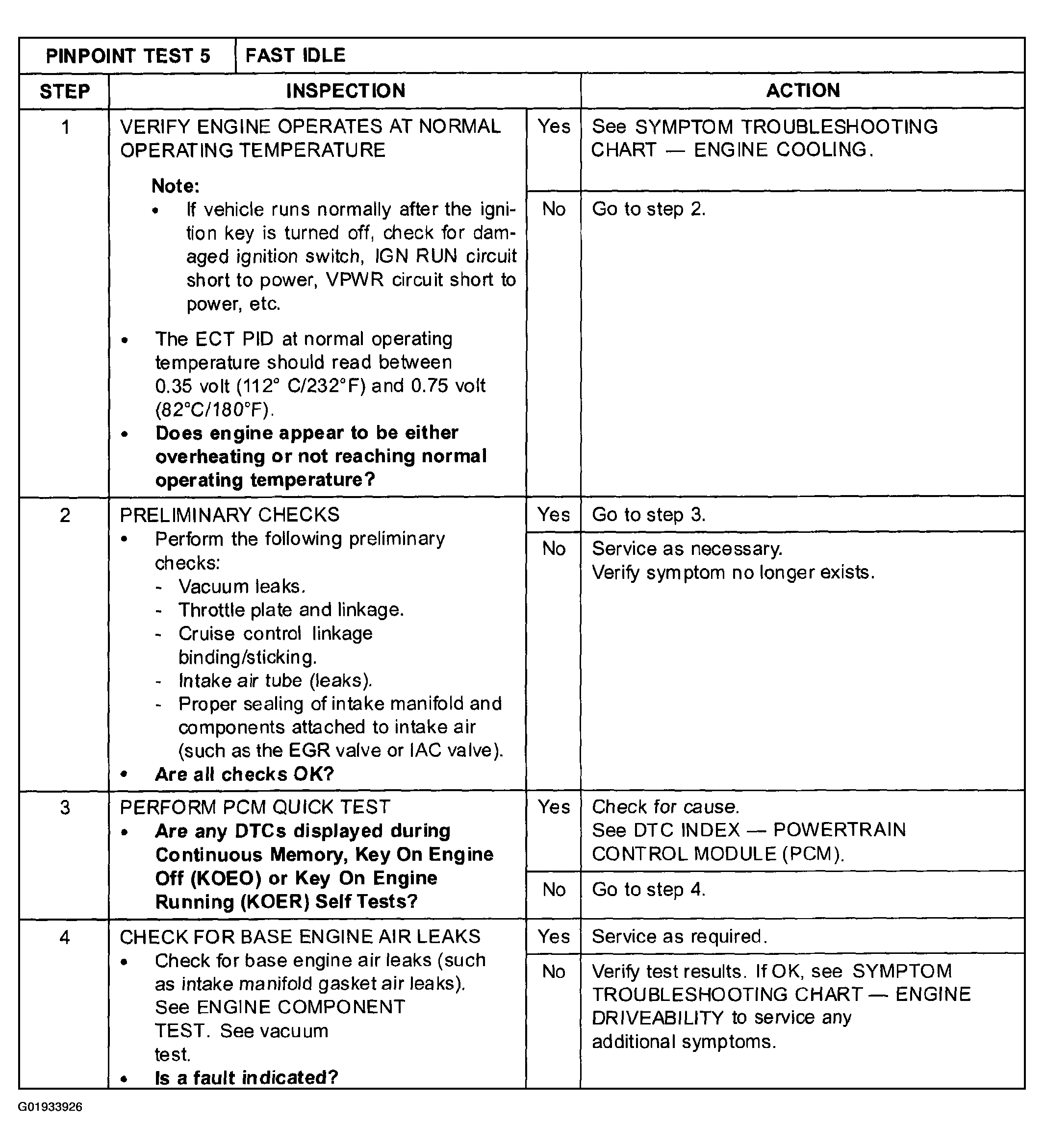

Fig 2: Pinpoint Test 5 - Fast Idle (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
