Automatic Transmission Shift Concerns

Fig 1: Pinpoint Test 14 - Automatic Transmission Shift Concerns Description
G01933962Courtesy of MAZDA MOTORS CORP.

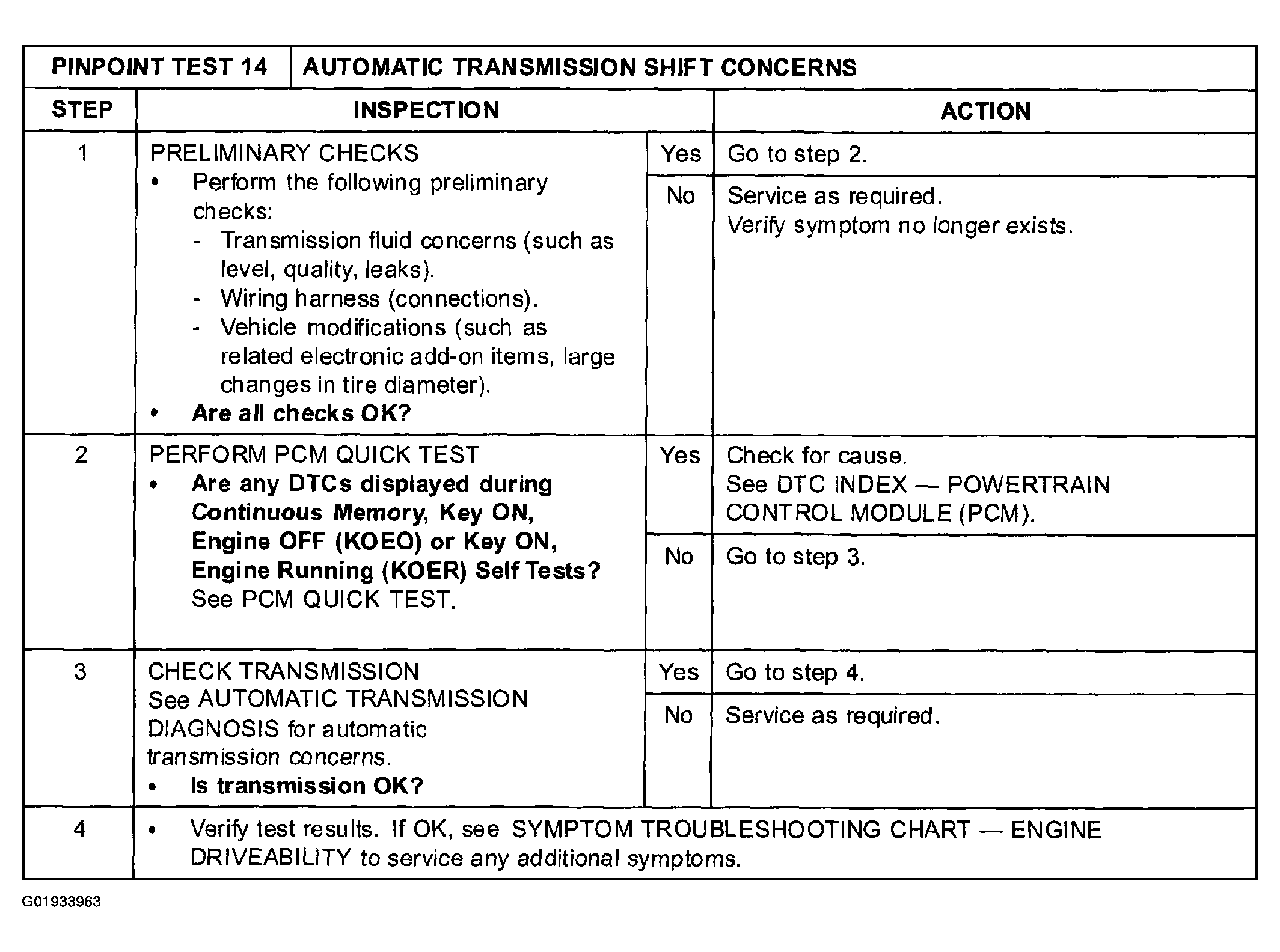

Fig 2: Pinpoint Test 14 - Automatic Transmission Shift Concerns (Steps 1-4)
G01933963Courtesy of MAZDA MOTORS CORP.
