Cooling System Pinpoint Test 4: Block Heater Does Not Operate Properly

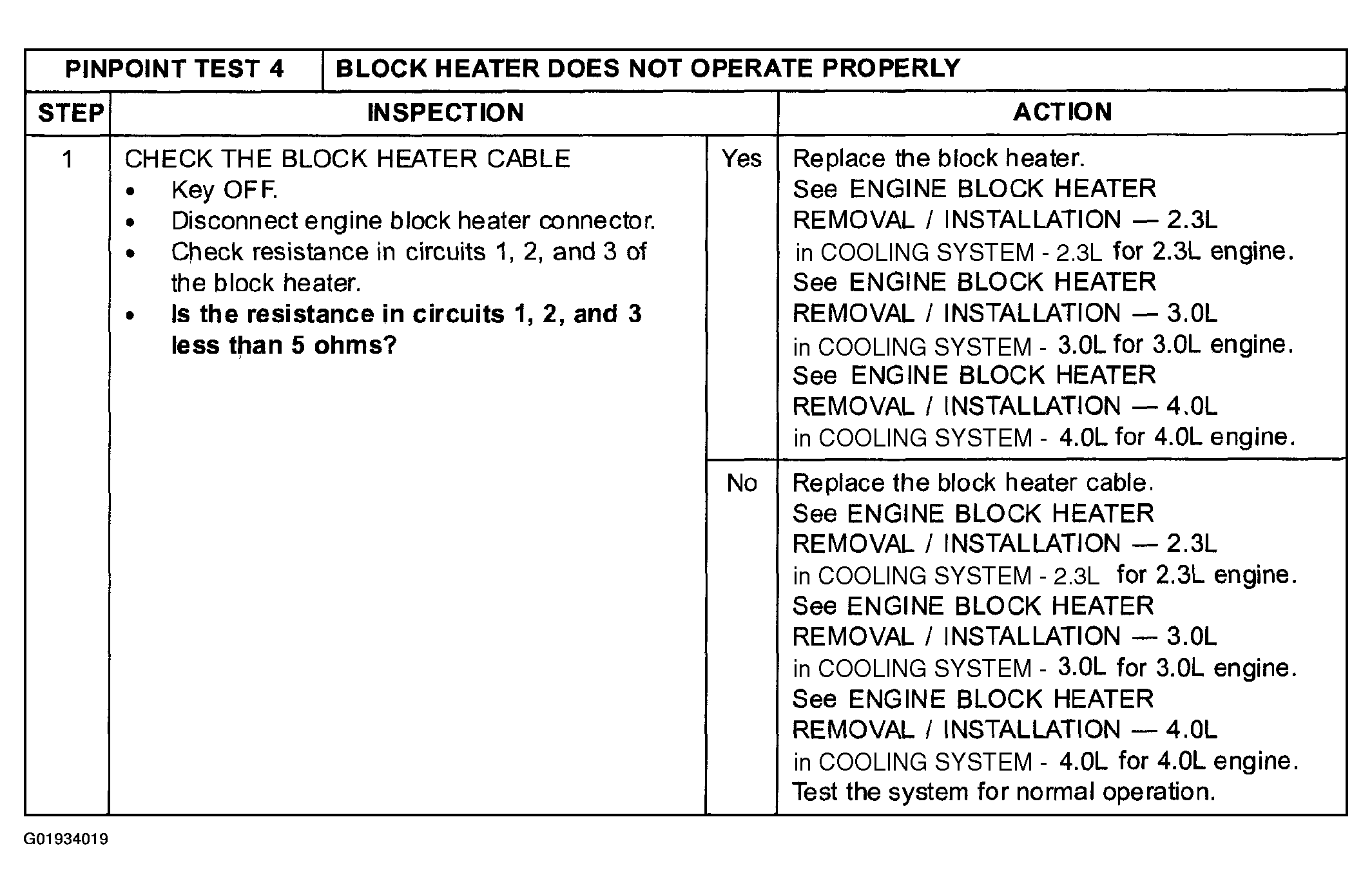

Fig 1: Cooling System Pinpoint Test 4: Block Heater Does Not Operate Properly
G01934019Courtesy of MAZDA MOTORS CORP.
